22. Insert lower A-ar m b all jo int en d into the be aring
carrier. Install low er ball joint pinch bolt (E) into the
bearing carrier and torque bolt to specification.

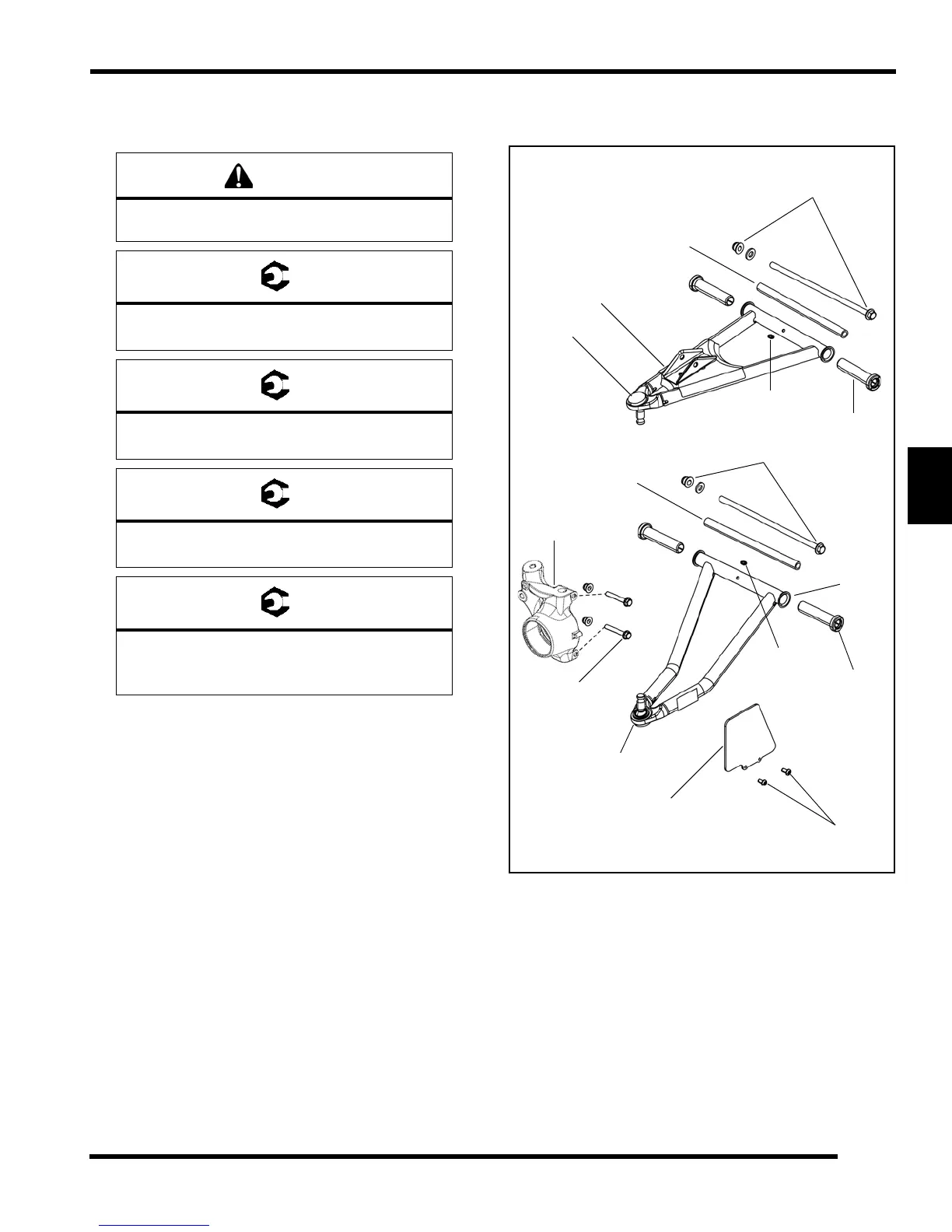

Exploded View
WARNING
Upon A-arm installation completion, test vehicle
at low speeds before putting into service.
= T
Front Upper / Lower A-arm Bolts:
39 ft. lbs. (53 Nm)
= T
Front Ball Joint Pinch Bolts:
23 ft. lbs. (31 Nm)
= T
Shock Mounting Bolts:
37 ft. lbs. (41 Nm)
= T
Wheel Nuts:
Steel Wheels: 27 ft. lbs. (37 Nm)
Aluminum Wheels: 30 ft. lbs. + 90° (1/4 turn)
Upper
A-arm
Lower
A-arm
Grease
Screws
Ball Joint
Pinch
Bearing
CV Shield
Bushings
Pivot Tube
Bushing
Grease Zerk
Ball Joint
Carrier
Bolts
Zerk
Pivot Tube
Upper Fastener
Lower Fastener
