7.37
FINAL DRIVE
7
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.
19. Install and tighten th e sm all clamp using the
appropriate clamp tool.
20. Pull out on the drive sha ft to center the joint in the
h
ousing. Slide a straight O-ring pick or a small slotted
screw driver between the large end of the boot and the
joint housing and lift up to equalize the air pressure in
the boot.
21. Position the boot lip in its g
roove. Install and tighten
the large clamp using the appropriate clamp tool.

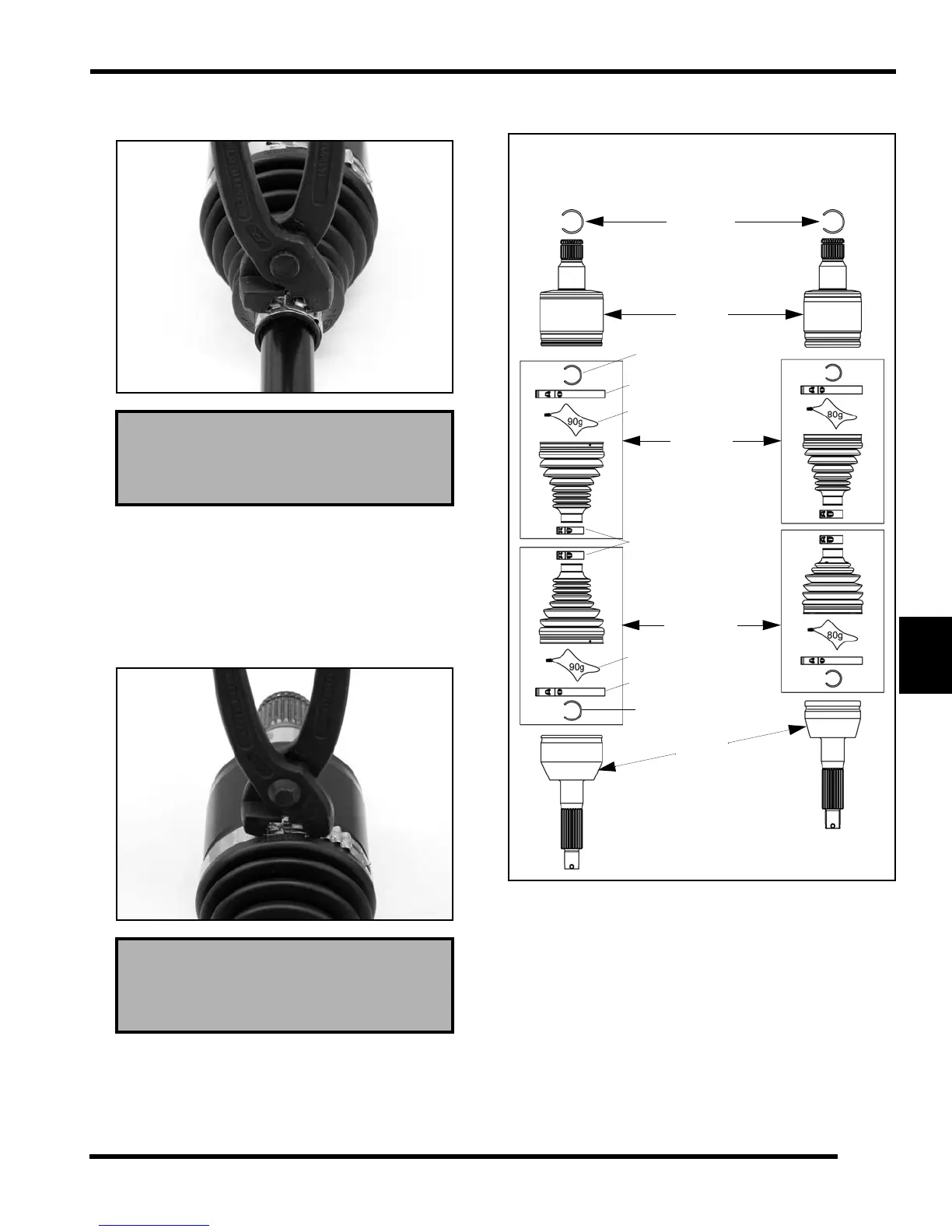

Drive Shaft Exploded View
Axle Boot Clamp Tool: PU-48951
or
CV Boot Clamp Pliers: 8700226
Axle Boot Clamp Tool: PU-48951
or
CV Boot Clamp Pliers: 8700226
REAR SHAFT
CV Joint
Plunging
Spring Ring
Gear Side
Boot Kit
Wheel Side
Boot Kit
Joint
Spring Ring
Large Clamp
Grease Pack
Small Clamp
Spring Ring
Large Clamp
Grease Pack
RZR 570
RZR S / RZR 4
