7.25
FINAL DRIVE
7
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

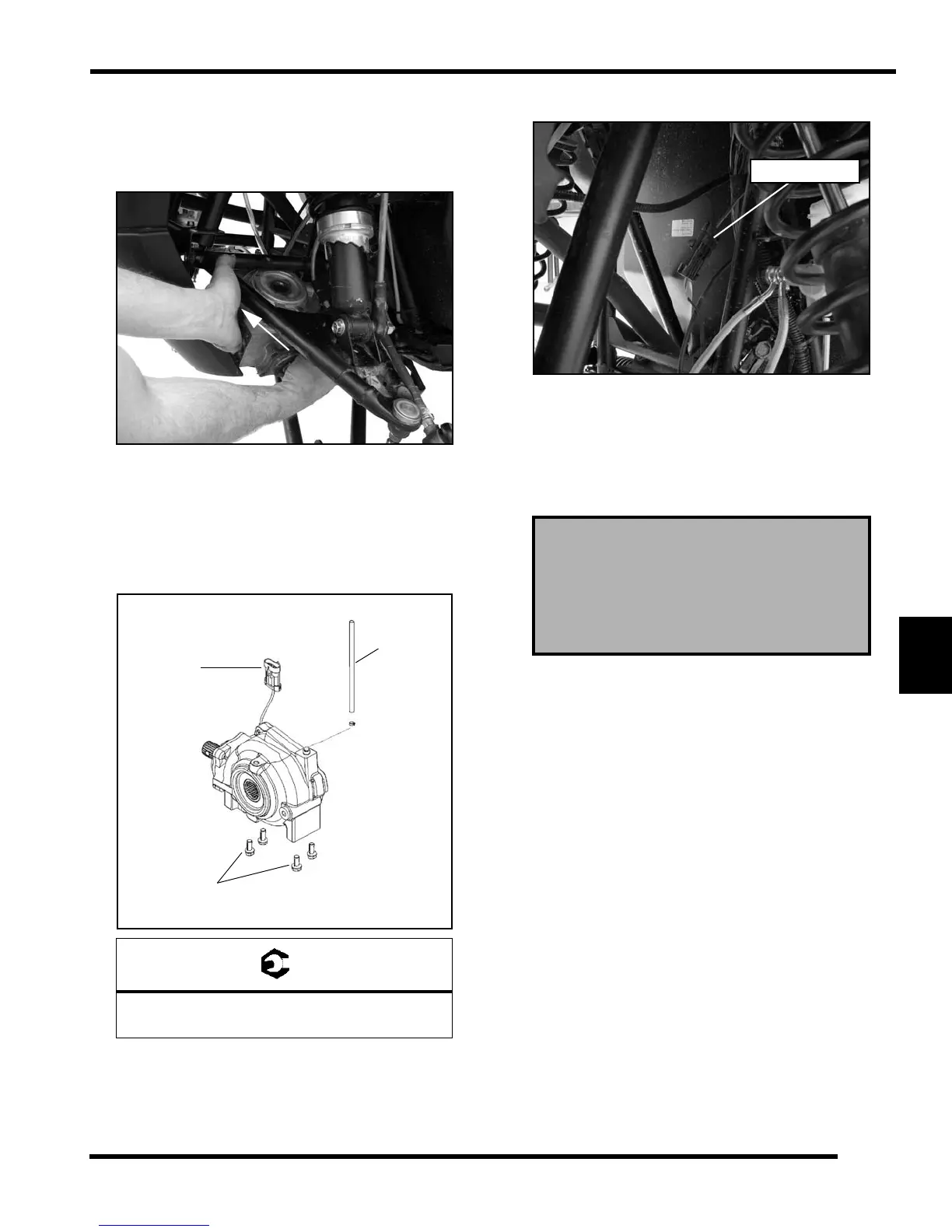

Gearcase Installation
1. Install the gearcase back into the vehicle through the
left-hand wheel well area, b etween the upper a nd
lower A-arms.
2. Install the pr opshaft o nto the fron t gea rcase inpu t
sha
ft. Use a NEW spring pin in the front propshaft.
3. Install the (4) bolts that secure the front gearcase to
the
frame and torque to 30 ft. lbs. (41 Nm).
4. Install the vent line.
5. Connect the AWD wire harness.
6. Refer to “FR ONT D RIVE
SHAFT - Drive Shaft
Installation” and install both front drive shafts into the
gearcase.
7. Add the proper lubricant to the front gearcase. Refer
to Chapter 2 for
fluid fill and change information.
Front Gearcase Mounting Bolts:
30 ft. lbs. (41 Nm)
30 ft. lbs.
Install
Vent Line
Connect
Harness
(41 Nm)
Gearcase image is
for reference only.
Polaris Demand Drive Plus
(PN 2877922)
Front Housing Capacity
6.75 fl. oz. (200 ml)
