10.16
ELECTRICAL
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

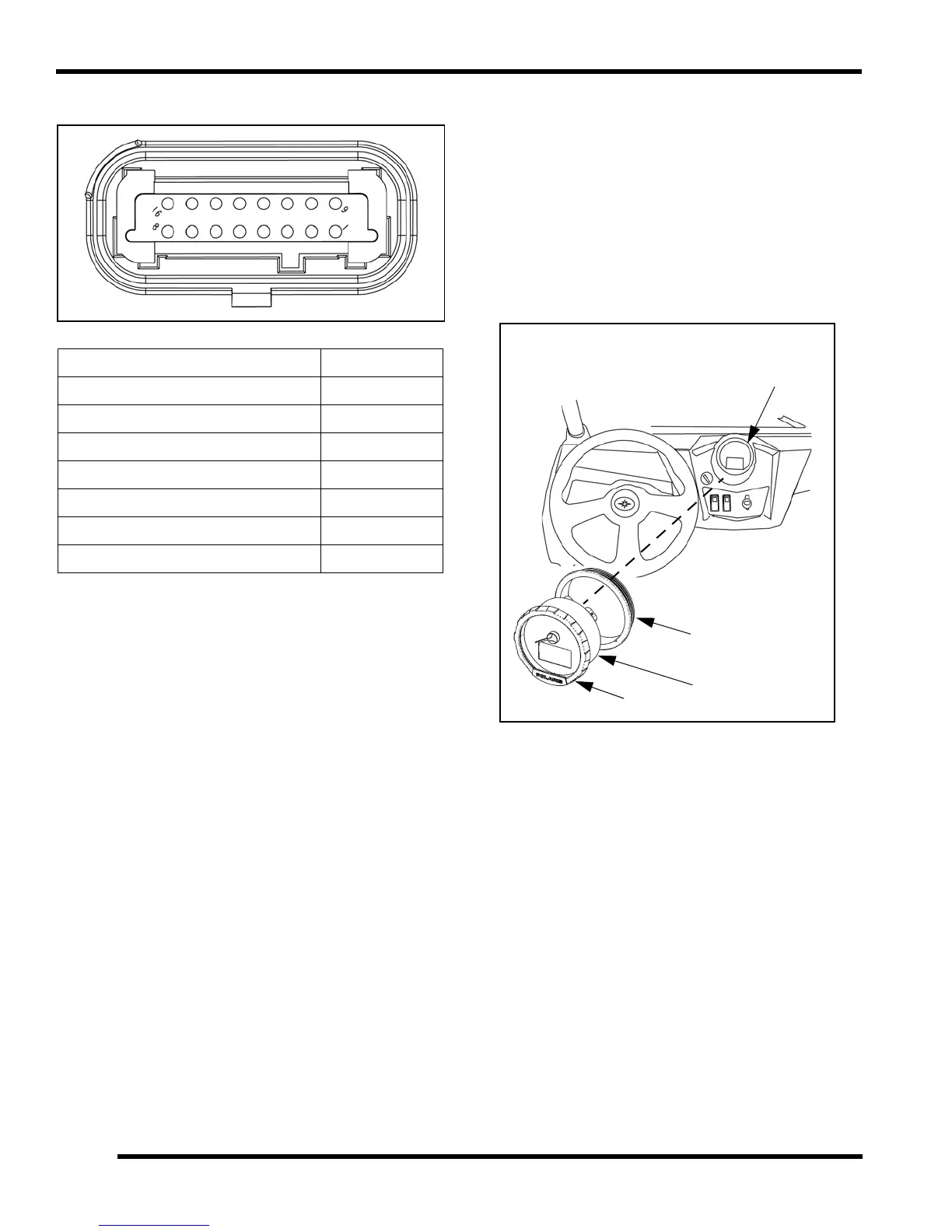

Instrument Cluster Pinouts Instrument Cluster Removal
NOTE: Do not allow alcohol or petroleum produ cts
to come in contact with the instrument cluster lens.
1. Disconnect the wire harness connector from the back
sid
e of the instrument cluster.
2. Push the instrument cluster out from the back side of
th
e dash while securely holding the dash and rubber
mount.
NOTE: Do no t re move t he ru bber mount f rom th e
das
h p anel. Only remove the ru bber moun t if
necessary. The bezel is a snap-on assembly and is a
serviceable part.
FUNCTION PIN
CAN High 1
CAN Low 2
Switched Power (Vdc) 3
Constant Power (Vdc) 4
Ground 5
High Beam Input 8
Fuel Level Sensor 11
Rubber Mount
Instrument Cluster
Bezel
Push Instrument
Cluster Outward
Dash Panel
To Next Page
