8.21
TRANSMISSION
8
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

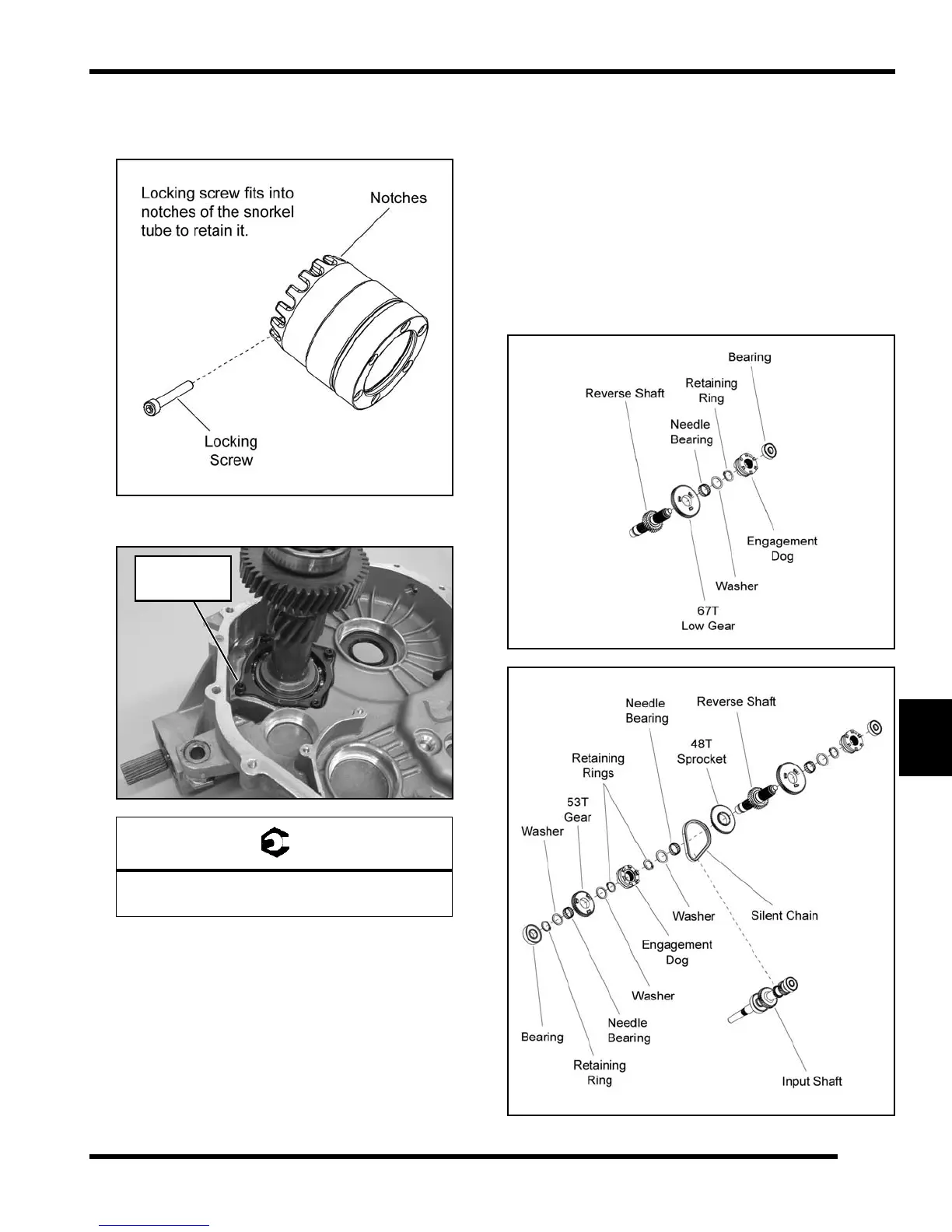

15. Once the backlash is set, a pply Loctite 24 2
®
to the
threads an d in stall the locking scr ew to secure the
snorkel tube.
16. Torque the locking screw to specification.
Transmission Assembly
IMPORTANT: The snorkel shaft and pinion shaft must
be inst alled pr ior to t ransmission ass embly. The
snorkel shaft cannot be installed after assembling the
transmission.
1. Clean both tra nsmission ca se ha lves thor oughly.
Ins
pect case half mating surfaces for damage.
2. Assemble the reverse shaft assembly and input shaft
ass
embly if prev iously disassembled (see
illustrations).
Snorkel Locking Screw:
8-10 ft. lbs. (11-14 Nm)
To Next Page
