9.15
BRAKES
9
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.
4. Slowly pump the brake pedal until pressure has been
built up. Maintain at least 1/2, (12.7 mm) of brake fluid
in the reservoir to prevent air from entering the brake
system.

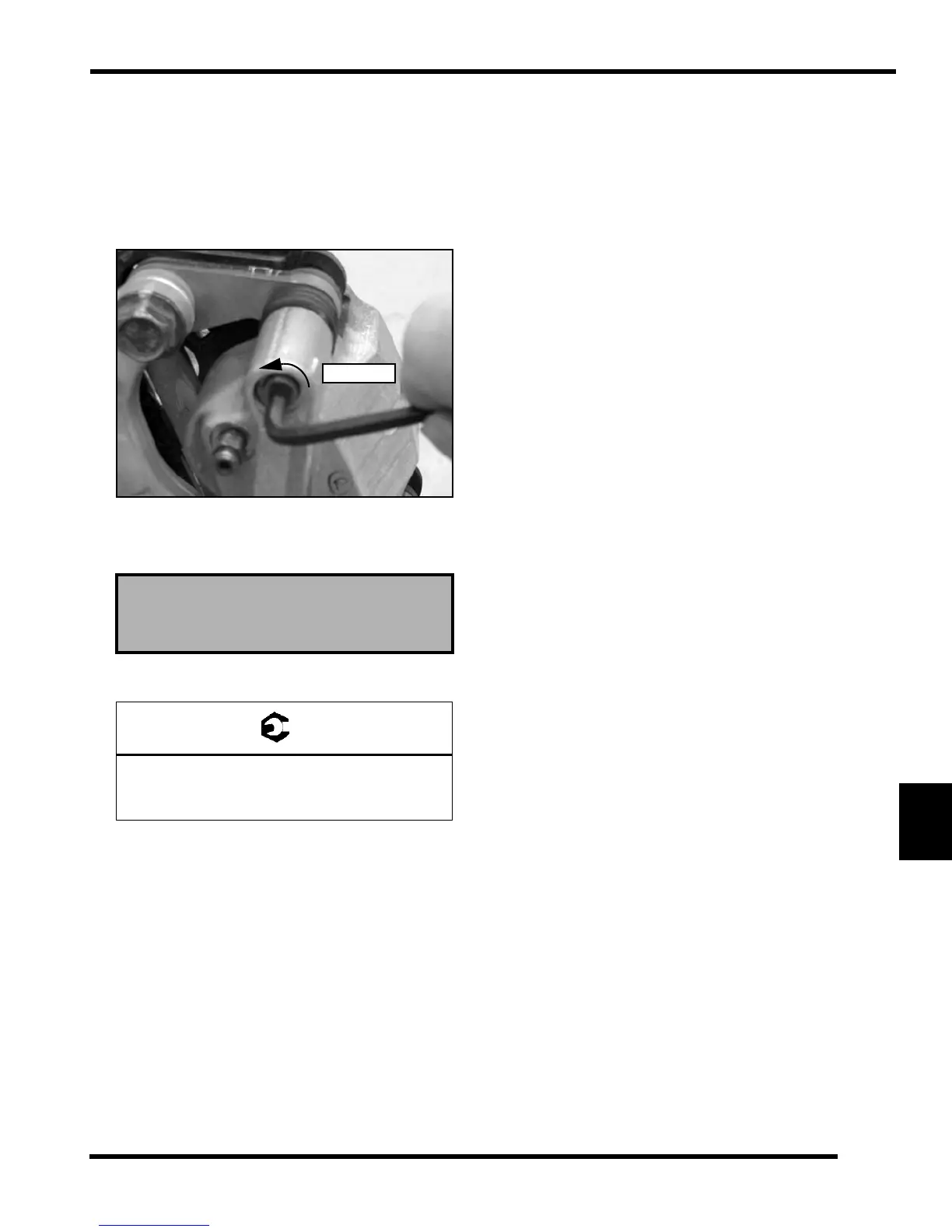

5. Install the adjustment set screw
and turn clockw ise
until stationary pa d contacts disc, then b ack off 1/2
turn (counterclockwise).
6. Verify fluid level in reservoir
is up to MAX line inside
reservoir and install reservoir cap.
7. Install wheel and torque wheel nuts to specification.
Brake Burnishing Procedure
It is required that a burnishing procedure be performed
after installation of new brake pads to extend service life
and reduce noise.
Start mach ine an d slowly increase sp eed to 30 mp h.
Gra
dually apply brakes to stop machine. Allow pads and
disc to cool suf ficiently dur ing the p rocedure. Do n ot
allow pads or disc to become hot or warping may result.
Repeat th is p rocedure 1 0 time s. Do not make more
than 3 stops per 1 mile (1.6 km).
Master Cylinder Fluid
Up to MAX line inside reservoir
Wheel Nuts:
Steel Wheels: 27 ft. lbs. (37 Nm)
Aluminum Wheels: 30 ft. lbs. + 90° (1/4 turn)
