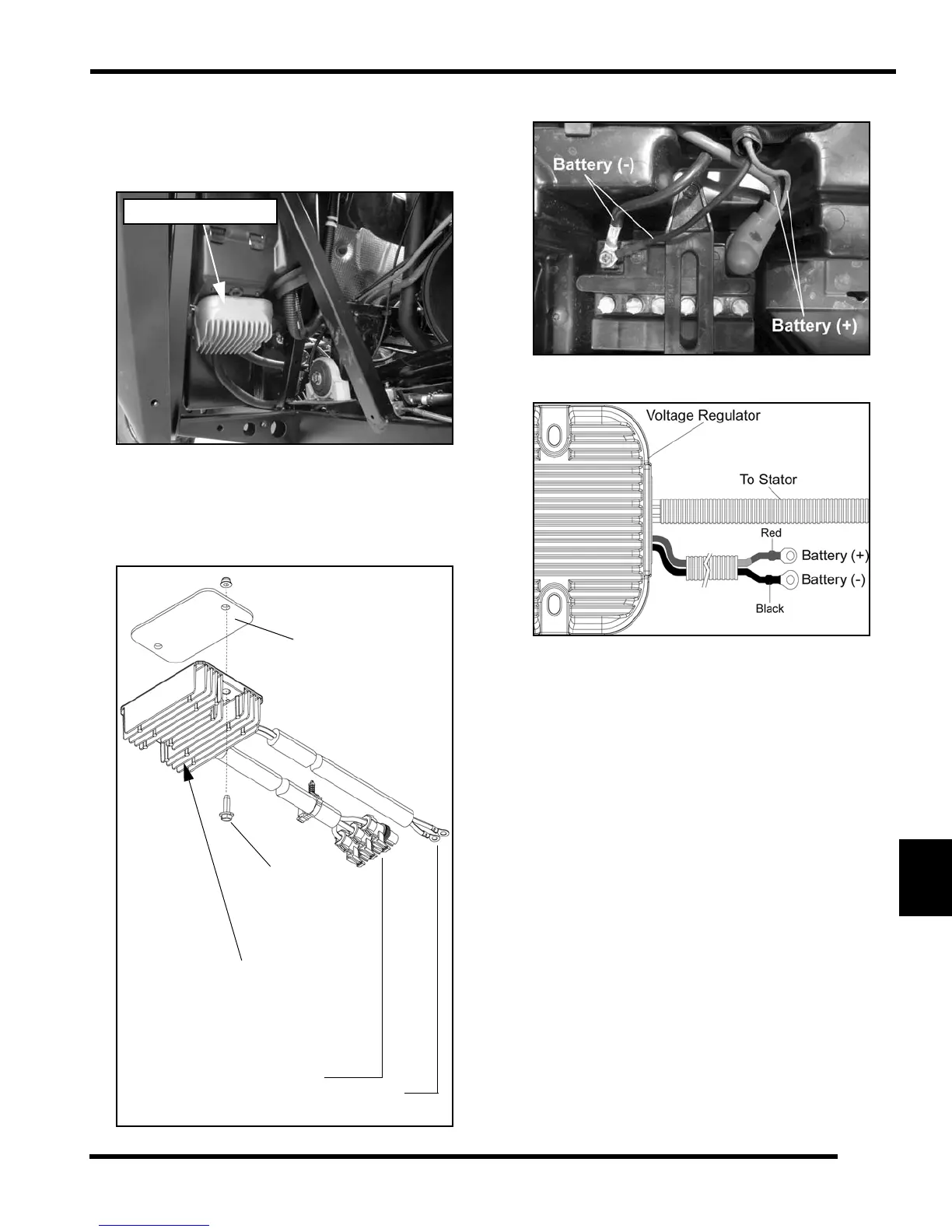

Regulator / Rectifier
The Regulator / Rectifier is located in the left rear wheel
well area in front of the left rear wheel. It is mounted under
the LH panel divider, below the ECU.
NOTE: If the regulator / re ctifier overheats, the unit
wi
ll turn itself off to cool down. The unit w ill turn on
again after it has cooled down. If it t urns off, verify
the cooling fins are clean, free from debris and that
adequate airflow is present.
Regulator / Rectifier
Keep Regulator Cooling Fins Clean
Regulator Heat Sink
75 in. lbs.
(7 Nm)
To Stator
To Battery Terminals
Image for Reference Only
