BRAKES
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.
FRONT CALIPER SERVICE

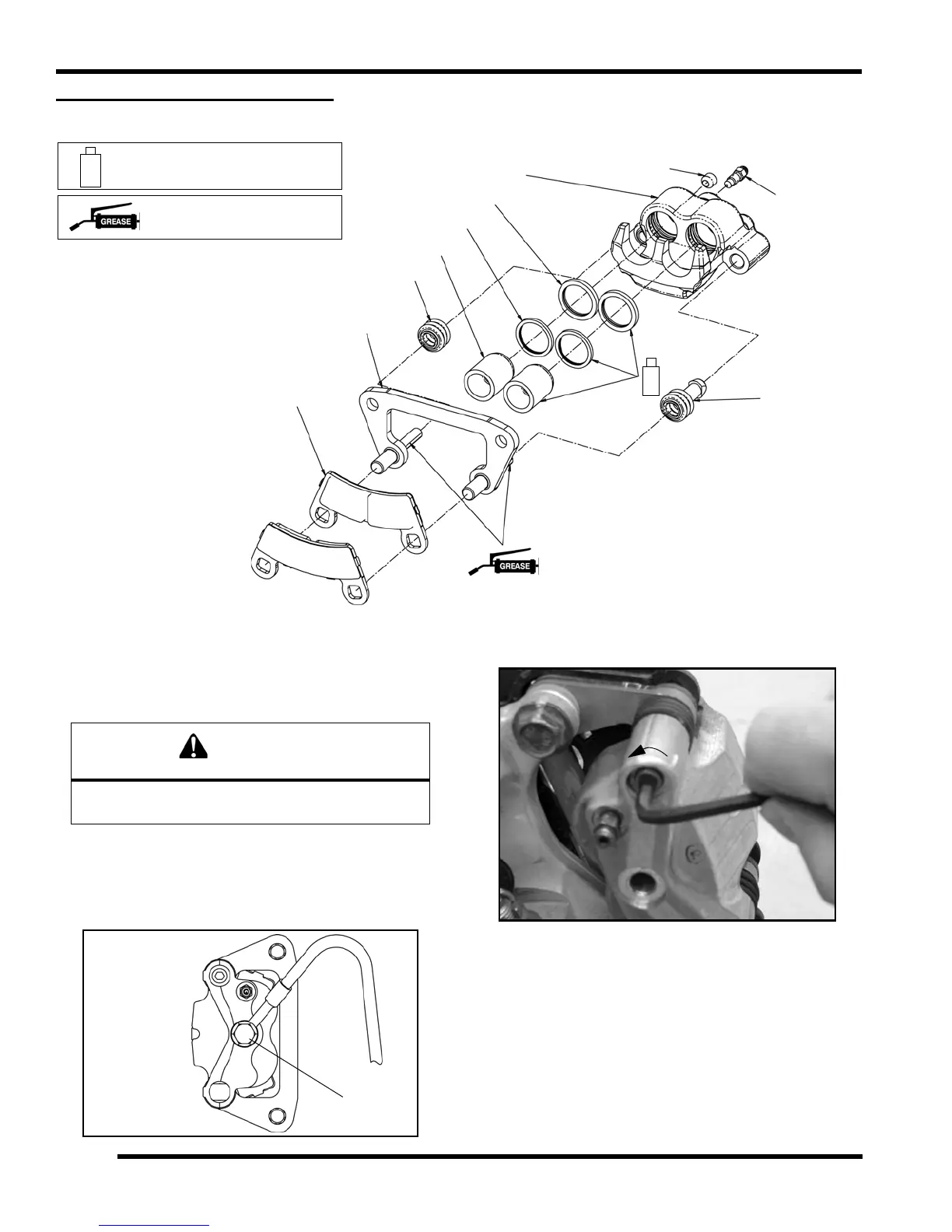

Caliper Exploded View
Caliper Removal
1. Elevate and safely support the front of the vehicle.
2. Remove the (4) wheel nuts and the front wheel.
3. Clean caliper area before removal.
4. Place a container below the caliper to catch brake fluid
whe
n removing the line . Re move br ake line fr om
caliper.
5. Loosen brake pad adjustment set screw 2-3 turns to
allow b
rake pad removal after the caliper is removed.
6. Remove and discard the two ca liper mounting bolts
and
remove the caliper assembly from the front hub.
A. Socket Set Screw 
B. Bleeder Screw 
C. Caliper Assy. 
D. Boot 
E. Square O-ring
(thick)
F. Square O-ring (thin) 
G. Piston 
H. Caliper Mount 
I. Brake Pads
A
B
C
D
E
F
G
H
Apply Silicone Grease
Apply Polaris DOT 4 Brake Fluid
to Component
I
47 in. lbs.
(5.3 Nm)
D
CAUTION
Use care when supporting vehicle so that it does not
tip or fall. Severe injury may occur.
Remove
Brake Line
