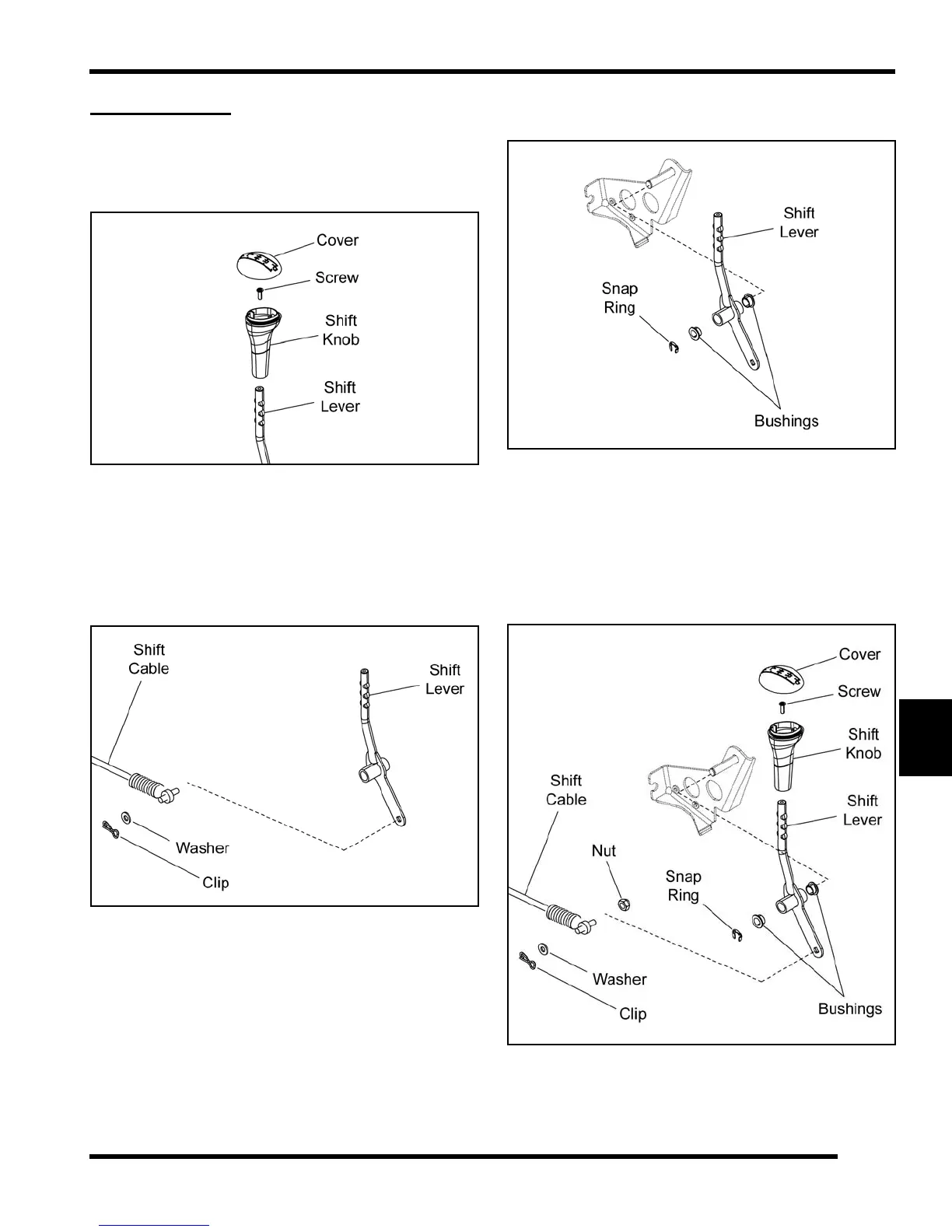

SHIFT LEVER
Removal
1. Remove the shift knob cover, retaining screw and shift
knob from the shift lever.
2. Remove the scr ews r etaining th e cen ter console
u
sing a T27 and T30 Torx driver. Remove the console
from the vehicle.
3. Remove the clip and washer re
taining the shift cable
to the shift lever and disconnect the cable end from
the lever.
4. Remove the retaining
ring and slide the shift lever off
the mounting bracket and out from the frame.
5. Remove bo th b ushings fr om th e sh ift le ver a nd
service as needed.
Installation
1. Perform the removal steps in reverse order to install
the gear shift lever (lever, cable, console, shift knob).
