10.6
ELECTRICAL
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

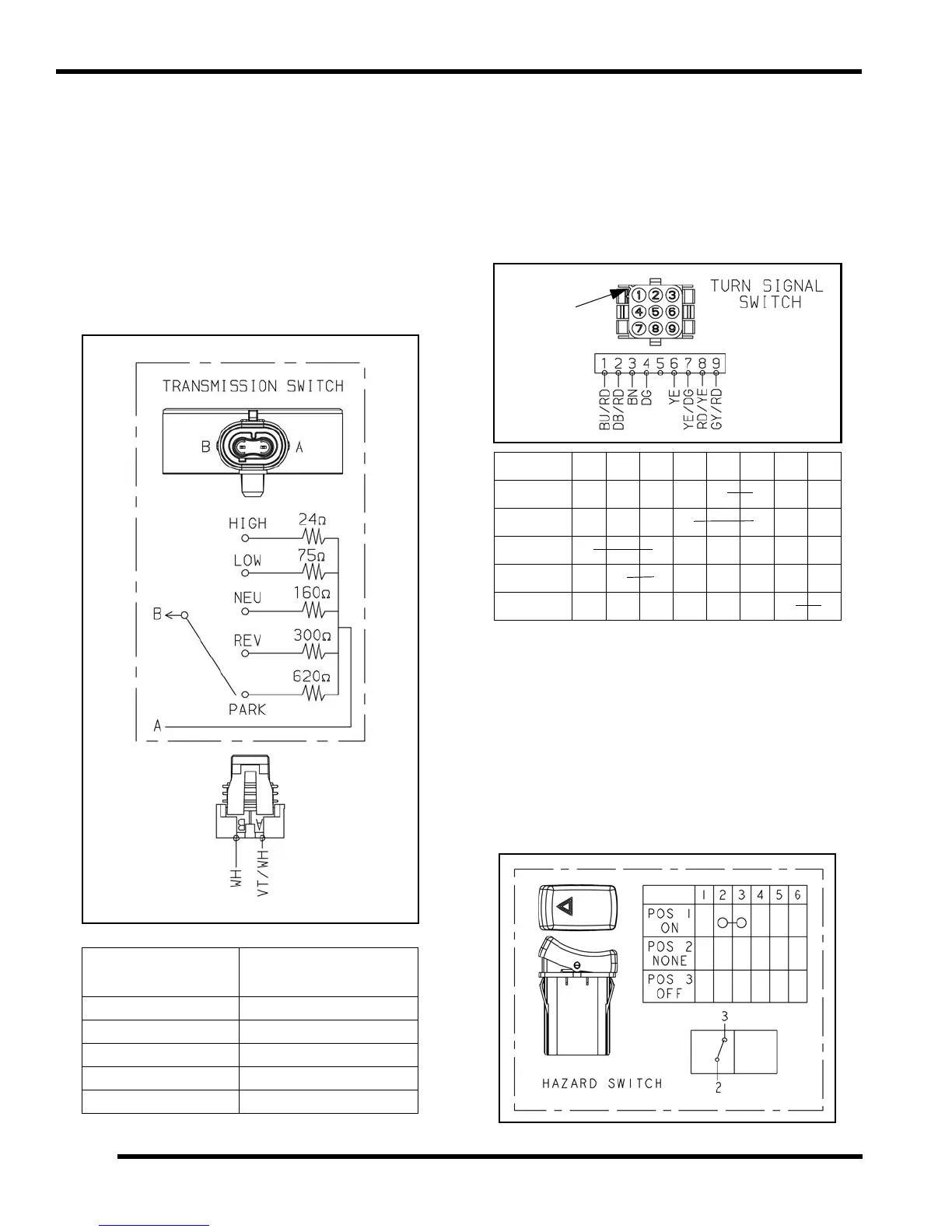

Transmission (Gear Position) Switch
1. The transmission (gear position) switch is located on
the RH side of the transmission and can be accessed
through the RH wheel well area.
2. Disconnect the transmission switch harness by lifting
the connector loc
k and pulling on the c onnector. Do
not pull on the wiring.
3. Test the transmission swit ch continuity readings for
e
ach gear position and compare to th e specification
table below.
Turn Signal Switch (INTL)
1. Disconnect the Tu rn Signal switch ha rness by
depressing the connector locks and pulling on the
connector. Do not pull on the wiring.
2. Test between the 5 set s of output s (H I BEAM / LO
B
EAM / L-TURN / R-TURN / HORN). If any of the tests
fail, replace the switch assembly.
Hazard Switch (INTL)
1. Disconnect wires or harness from the Hazard switch.
2. Test between the outputs (ON / NONE / OFF). If any
of
the tests fail, replace the switch assembly.
•
Move switch to ON. The re sh ould be continuity
between switch pins 2 and 3.
• Move switch to NONE / OF F. There should be no
continuity between switch pins.
Gear Position
Resistance Value
when me
asured at switch terminals
A and B
HIGH 24 Ohms
LOW 75 Ohms
NEU 160 Ohms
REV 300 Ohms
PARK 620 Ohms
1 2 3 4 6 7 8 9
HI BEAM O O
LO BEAM O O
L - TURN O O
R - TURN O O
HORN O O
Orientation
Tab
