MAINTENANCE
9923523 - RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.
GENERAL VEHICLE INSPECTION AND MAINTENANCE
Pre-Ride / Daily Inspection
Perform the following pre-ride inspection daily, and when
servicing the vehicle at each scheduled maintenance.
Tires - check condition and pressures
Fuel tank - fill to proper
level
All brakes - check operation and adjustment
Throttle - check for free operation and closing
Headlights/Taillights/Brakelights - also check
ope
ration of all indicator lights and switches
Ignition switch - check for proper function
Wheels - check for tightness of wheel nuts and
axle
nuts; check to be sure axle nuts are secured
by cotter pins
Air cleaner element - check for dirt; replace if
necessar
y.
Steering - check for free operation noting any
unu
sual looseness in any area
Loose parts - visually inspect vehicle for any
dam
aged or loose nuts, bolts or fasteners
Engine coolant - check for proper level at the
re
covery bottle
Check all front and rear suspension components
fo
r wear or damage.
Frame, Nuts, Bolts, and Fasteners
Periodically inspect the tor que of all fasten ers in
accordance with the maintenance schedule. Check that all
cotter pins are in place. Refer to specific fastener torques
listed in each chapter.
Shift Cable Inspection / Adjustment
Shift c able a djustment m ay be ne cessary if sy mptoms
include:
No AWD or gear position display on instrument
clust
er
Ratcheting noise on deceleration
Inability to engage into a
gear
Excessive gear clash (noise)
Gear selector moving out of desired range

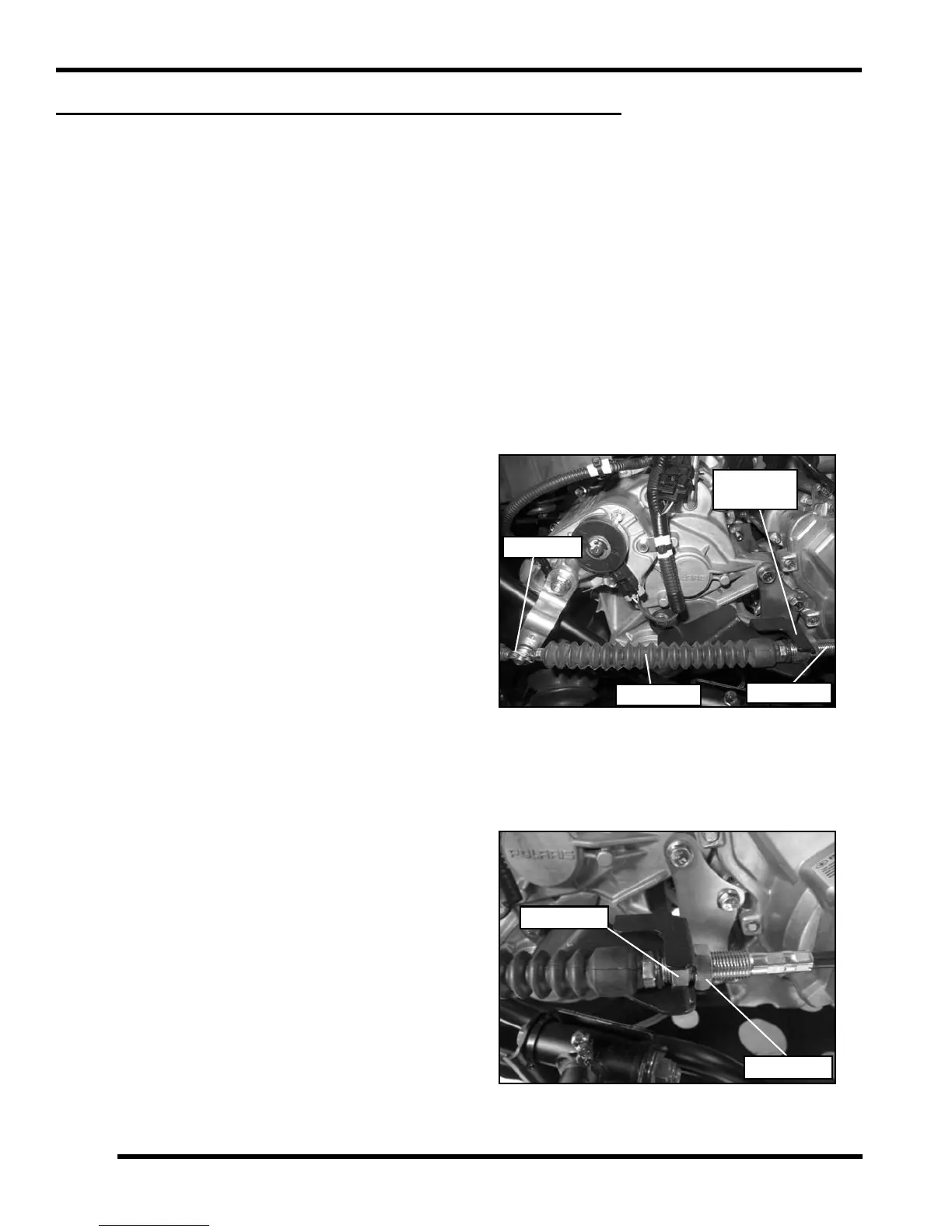

1. Locate th e shift ca ble in th e r ear r ight-hand whe el
w
ell area.
2. Inspect shift cable, clevis pin, pivot bushings, and dust
boo
t. Replace if worn or damaged.
3. If adjustment is required: Lo
osen jam nut (A), pull the
cable out of the mount and rotate jam nut (B).
Shift Cable
Mount
Dust Boot
Clevis Pin
Shift Cable
Jam Nut (A)
Jam Nut (B)
