9.22
BRAKES
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

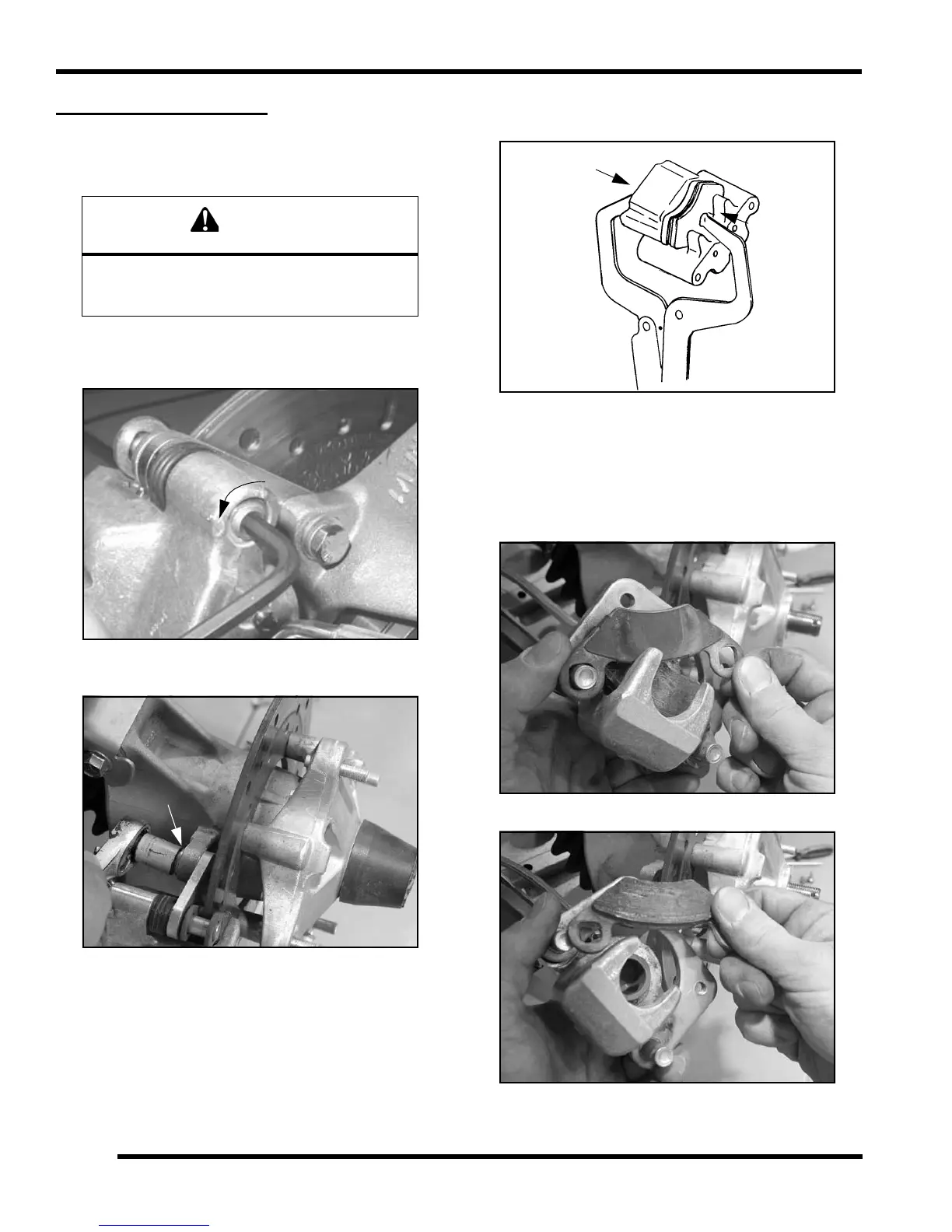

REAR BRAKE PADS
Pad Removal
1. Elevate and support rear of vehicle.
2. Remove the rear wheel.
3. Loosen pad adjuster screw 2-3 turns.
4. Remove and discard the two caliper mounting bolts
a
nd lift caliper off the brake disc.
NOTE: When re moving ca liper, be careful
not to
damage brake line. Support caliper so as not to kink
or bend brake line.
5. Push caliper piston into the caliper bore slowly using
a C-
clamp or locking pliers with pads installed.
NOTE: Brake fluid will be f orced t hrough
compe
nsating p ort in to ma ster c ylinder fluid
reservoir whe n pist on is p ushed ba ck in to c aliper.
Remove excess fluid from reservoir as required.
6. Push caliper mounting bracket inward and slip outer
b
rake pad past the edge to remove.
7. Remove the inner brake pad.
Use care when supporting vehicle so that it
does not tip or fall.
Severe injury may occur if machine tips or falls.
