Polaris 2012 RANGER RZR 570 INTL User Manual

10.19
ELECTRICAL
10
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

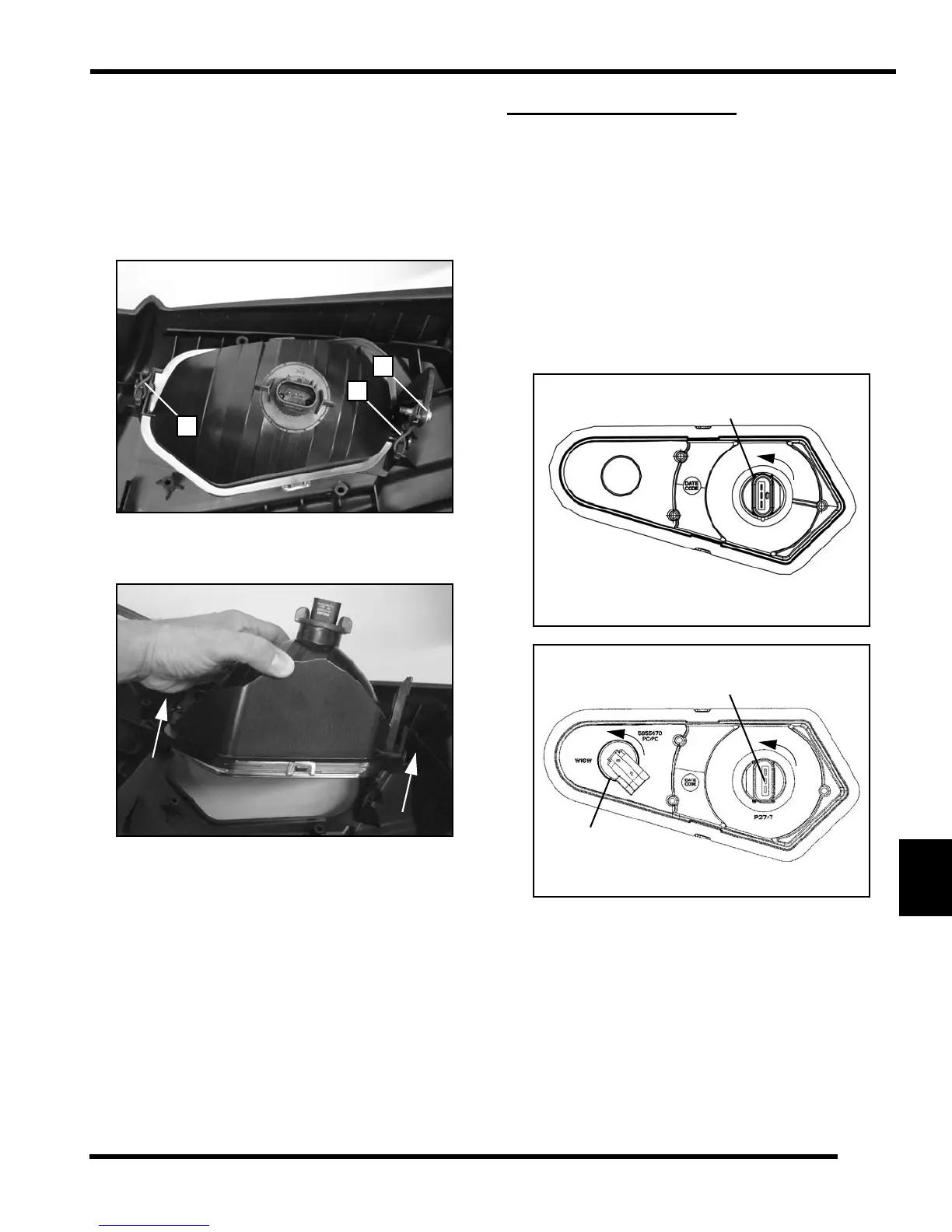

Headlamp Housing Removal
1. Disconnect the wire harness from the headlamp bulb.
Be sure to pull on the connector, not on the wiring.
2. Remove the O-rings (A) from the headlamp brackets
o
n both sides of the headlamp.
3. Remove the adjustment screw (B) from the bracket.
4. Carefully remove the he adlamp from the front
bumper.
Headlamp Housing Installation
1. Install th e hea dlamp ho using ba ck into th e fron t
bumper.
2. Secure the headlamp housing with the rubber O-rings
(
A) on both side s o f the hea dlamp an d install the
adjustment screw (B).
3. Reconnect wire harness or re-insert bulb if previously
re
moved.
4. Adjust h eadlights using the “ Headlight Adj ustment”
p
rocedure in this section.
TAIL / BRAKE LIGHTS
Bulb Replacement
Before replacing the bulb(s), use a dig ital multi-meter to
test the harness to ensure the lamp is receiving 12 volts
and that a ground path is present.
If a tail light, brake light or turn signal (INTL Only) does not
wo
rk the bulb may need to be replaced.
1. Disconnect the wire harness.
2. Remove bulb by turning the rubber base 1/4 turn and
pulling the bulb
out. Repl ace it with recommended
bulb. Apply Dielectric Grease (PN 2871329).
3. Test the tail lig ht, br ake lig ht an d tur n sign al ( INTL
Only)
to verify it is working properly.
A
A
B
Image for Reference Only
Image for Reference Only
Tail / Brake
Light
Tail / Brake
Light
Turn Signal
Light
INTL
Models
