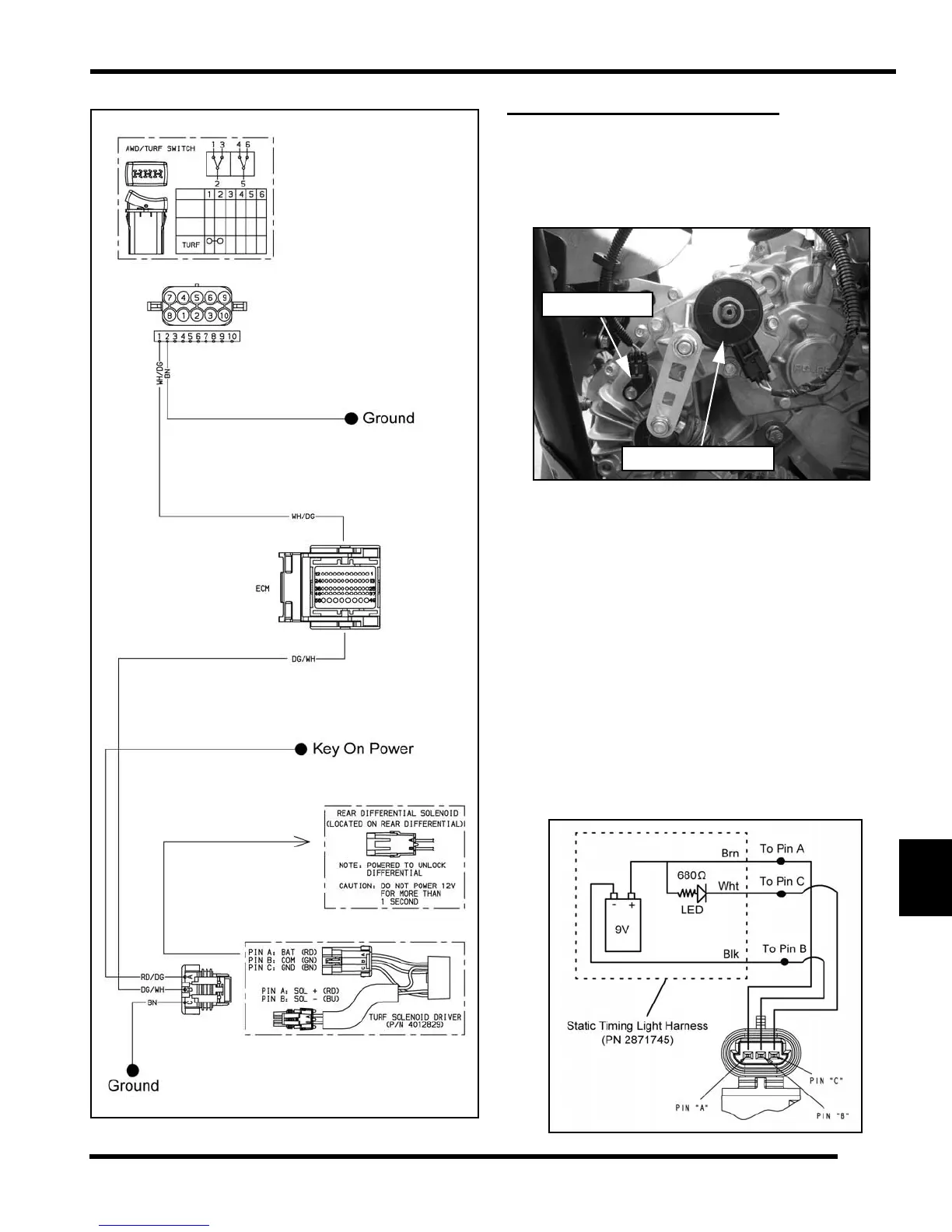

VEHICLE SPEED SENSOR
Speed Sensor Location
The speed se nsor is loc ated on th e RH side of th e
transmission and can be accessed through the rear RH
wheel well area.
Speed Sensor Testing
Special Tools Required:
Static Timing Light Harness (PN 2871745)
Hall Sensor Probe Harness (PN 2460761)
1. Disconnect the 3 wire harness from the speed sensor
a
nd remove the sensor from the transmission.
2. Connect th e wi res fr om the Static Timing Lig ht
Ha
rness to the sensor 3 pin connector using the Hall
Sensor Probe Harness (PN 2460761).
3. Pass a scr ewdriver back an d forth in front of the
se
nsor tip.
4. Be sur e con nections are go od and 9V battery is in
g
ood condition. If the light flashes, the sensor is good.
Transmission Switch
Speed Sensor
