ENGINE / COOLING SYSTEM
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

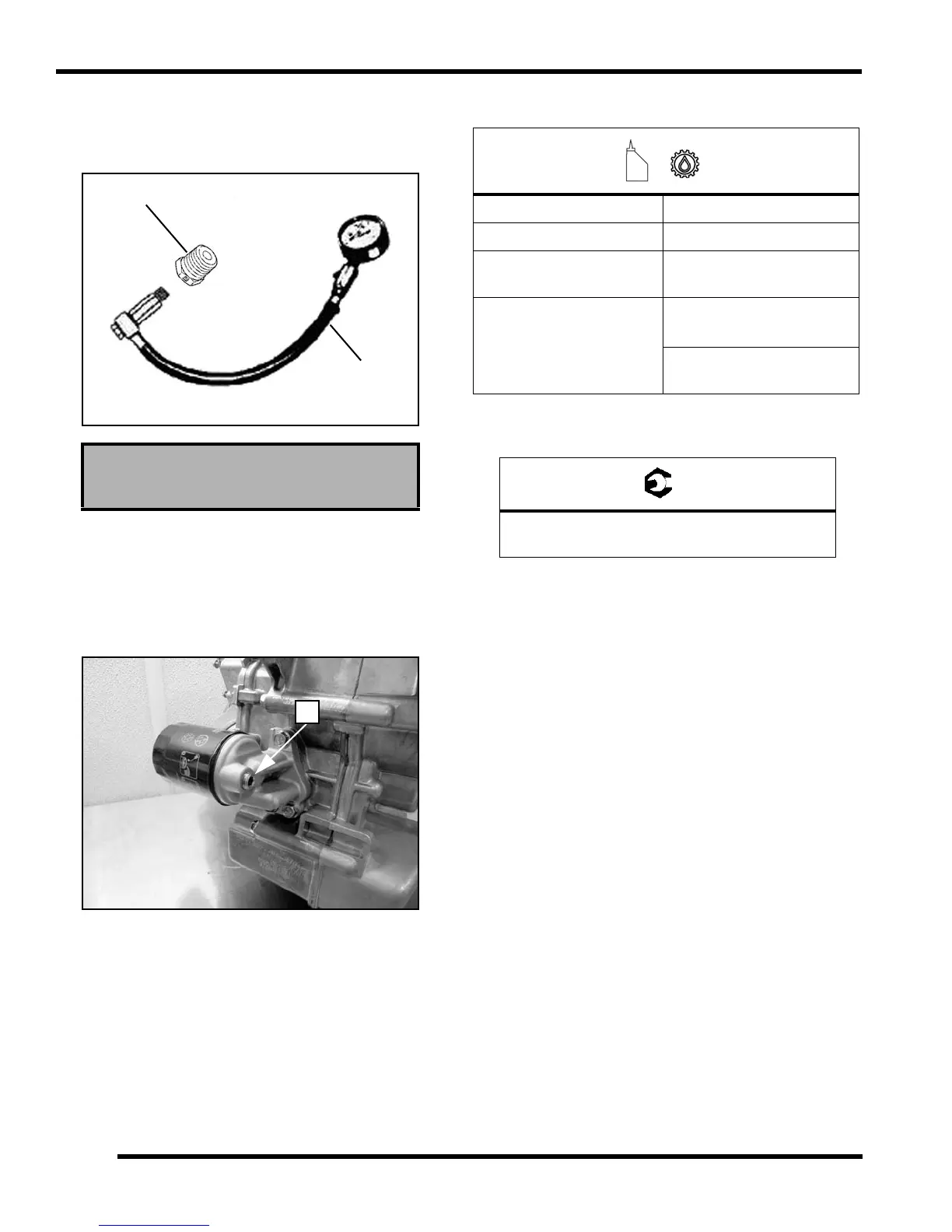

Oil Pressure Test
1. Attach the Oil Pr essure Gauge Adapter (PU-50569)
to the Oil Pressure Gauge (PV-43531).
2. Remove the seats and engine service panel.
3. Clean the area around the main oil gallery plug (A),
lo
cated on the oil filter adapter housing.
4. Remove the plu g ( A) and in sert the oil pressure
a
dapter.
5. Start engine an d a llow it to r each op erating
tem
perature, monitoring gauge indication.
NOTE: Test results ar e bas ed on the us e of the
re
commended engine oil (Pola ris PS- 4 Plus) at
operating temperature, and may vary considerably if
any ot her oil is used or if engine is not up to
temperature.
6. Upon assembly, torque the crankcase gallery plug to
s
pecification.
Oil Pressure Gauge Adapter: PU-50569
Oil Pressure Gauge: PV-43531
PV-43531
PU-50569
A
Image for Reference Only
=
Oil Capacity Approx. 2 Quarts (1.9 L)
Oil Filter Wrench PU-50105 or 2.5” (64 mm)
Oil Type
Polaris PS-4 Plus
Synthe
tic Engine Oil
Oil Pressure
Mini
mum Specification
(using Polaris PS-4 Plus
at operating temperature)
10 PSI @ 1200 RPM
(Min
imum)
40 PSI @ 7000 RPM
(Min
imum)
= T
Oil Gallery Plug:
11 ft. lbs. (15 Nm)
