Polaris 2012 RANGER RZR 570 INTL User Manual

5.16
BODY / STEERING / SUSPENSION
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

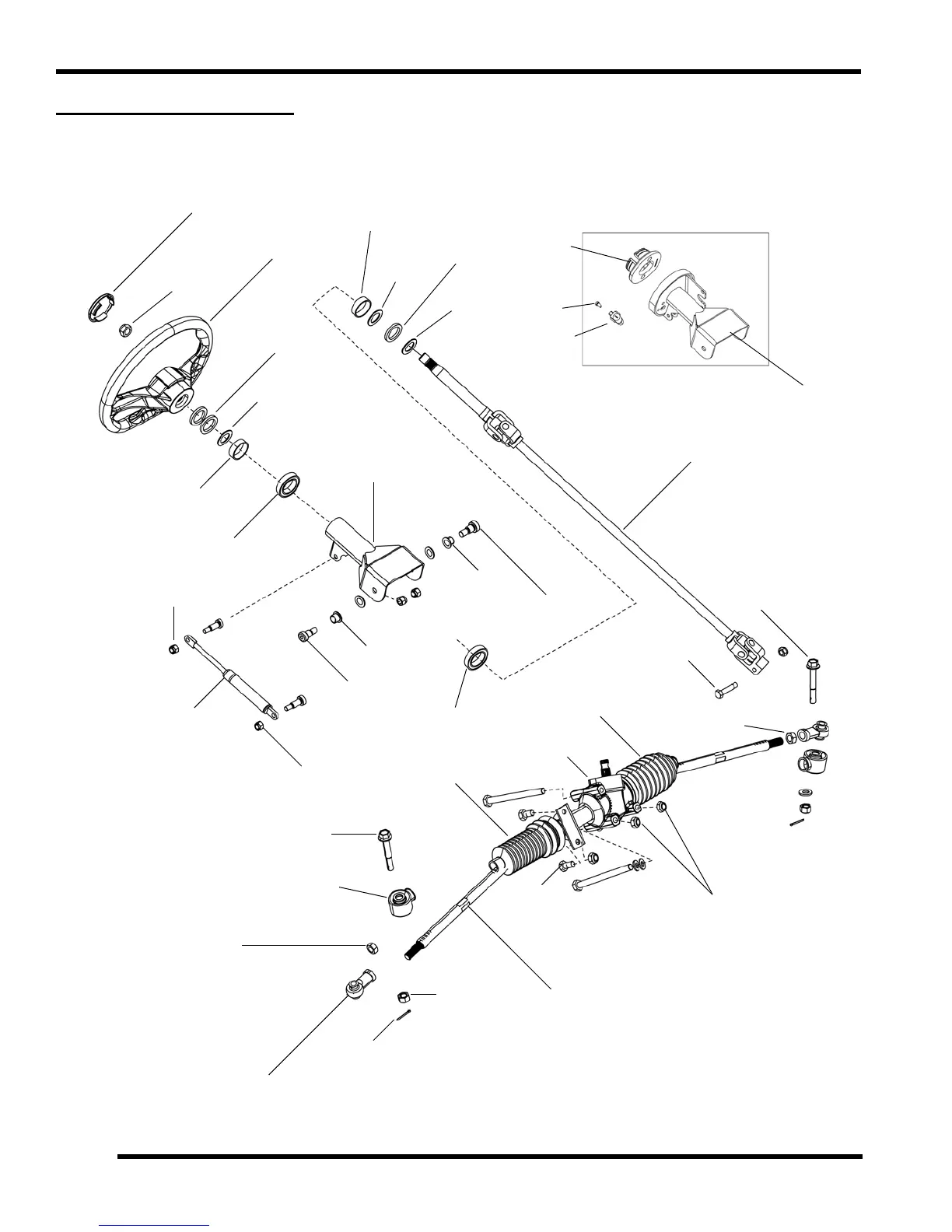

STEERING ASSEMBLY
Exploded View
Boot
Rod End
Tie Rod
RH Boot
LH Boot
Spacer
Bearing
Steering Wheel
Cap
Pivot Tube
Steering Shaft
Cotter Pin
Gear Box
Bearing
Bushing
Oil Locking
Shock Asm.
Asm.
17 ft. lbs.
(23 Nm)
17 ft. lbs.
(23 Nm)
12-14 ft. lbs.
(16-19 Nm)
Nut
42.5 ft. lbs.
(58 Nm)
42.5 ft. lbs.
(58 Nm)
12-14 ft. lbs.
(16-19 Nm)
27-33 ft. lbs.
(37-45 Nm)
42 ft. lbs.
(57 Nm)
23 ft. lbs.
(31 Nm)
23 ft. lbs.
(31 Nm)
7 ft. lbs.
(10 Nm)
12 ft. lbs.
(16 Nm)
Bushing
Thick
Washers
Thin
Washer
Thick
Washer
Thin
Washer
Thin
Washer
Spacer
INTL ONLY
Pivot Tube
Screw
Steering
Lock
Collar
