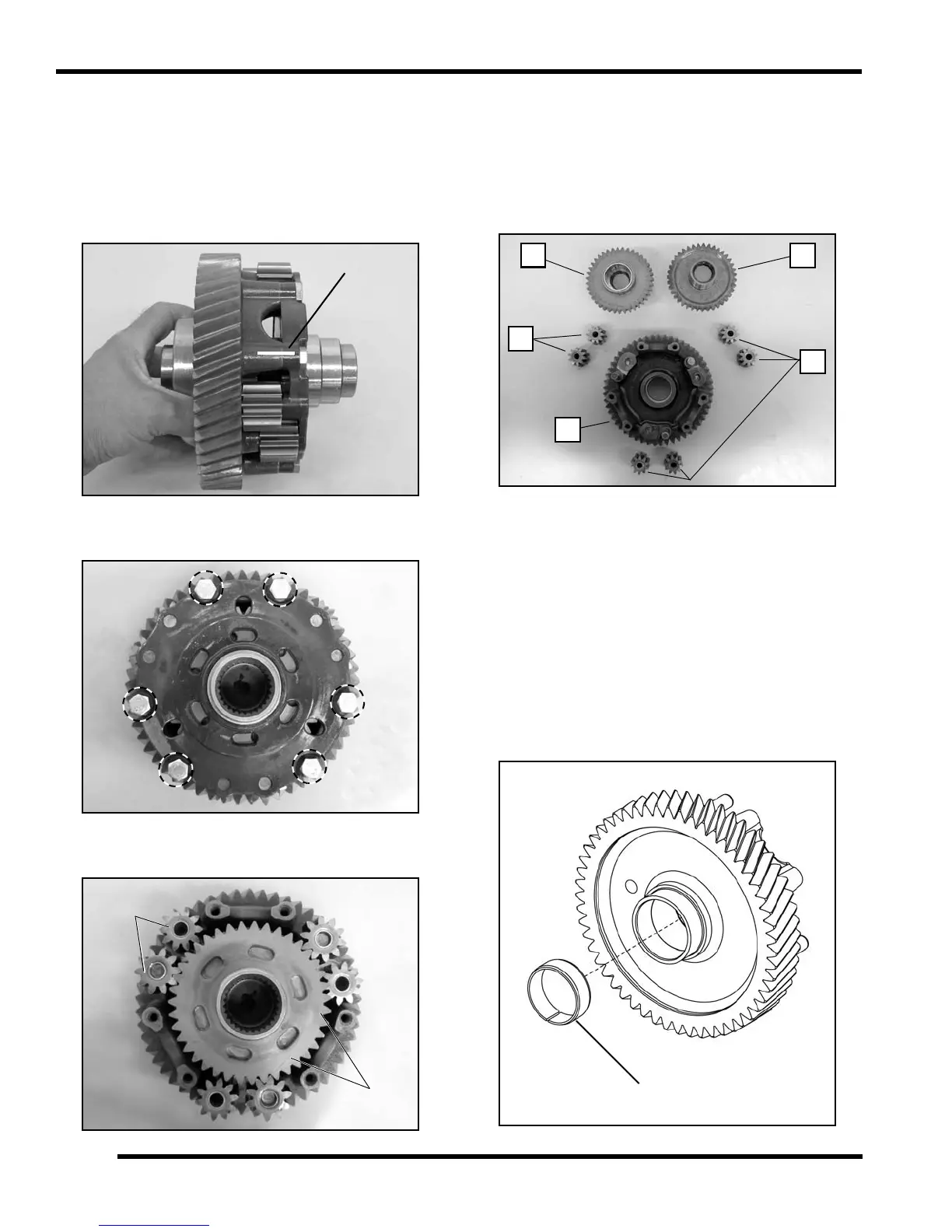

Planetary Differential Disassembly
NOTE: If the gea rcase is co mpletely as sembled,
perform the “Gearcase Disassembly and Inspection”
procedure.
1. Use a scribe to ma rk the differential cover and ring
g
ear prior to disassembly.
2. Remove the (6) screws retaining the differential cover
a
nd remove the cover.
3. Remove th e (6 ) p lanet ge ars a nd ea ch sid e ge ar
a
ssembly from the ring gear.
4. Inspect the female side gear (A), male side gear (B),
plan
et g ears ( C) a nd r ing gear ( D). Replace
components or bushings as needed. Bushin g
replacement can be per formed on all ne cessary
differential com ponents. If bu shing re placement is
required, pr oceed to Planetary Dif ferential Bu shing
Replacement”.
Planetary Differential Bushing Replacement
NOTE: If th e diff erential is completely a ssembled,
perform the “Planetary Di fferential Dis assembly”
procedure.
Ring Gear Bushing Replacement
1. Press the old bushing out of the ring gear.
2. Thoroughly clean the bore of the ring gear and check
fo
r any unwanted burs.
3. Press the new bushing into the ring gear housing.
