TRANSMISSION
8
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

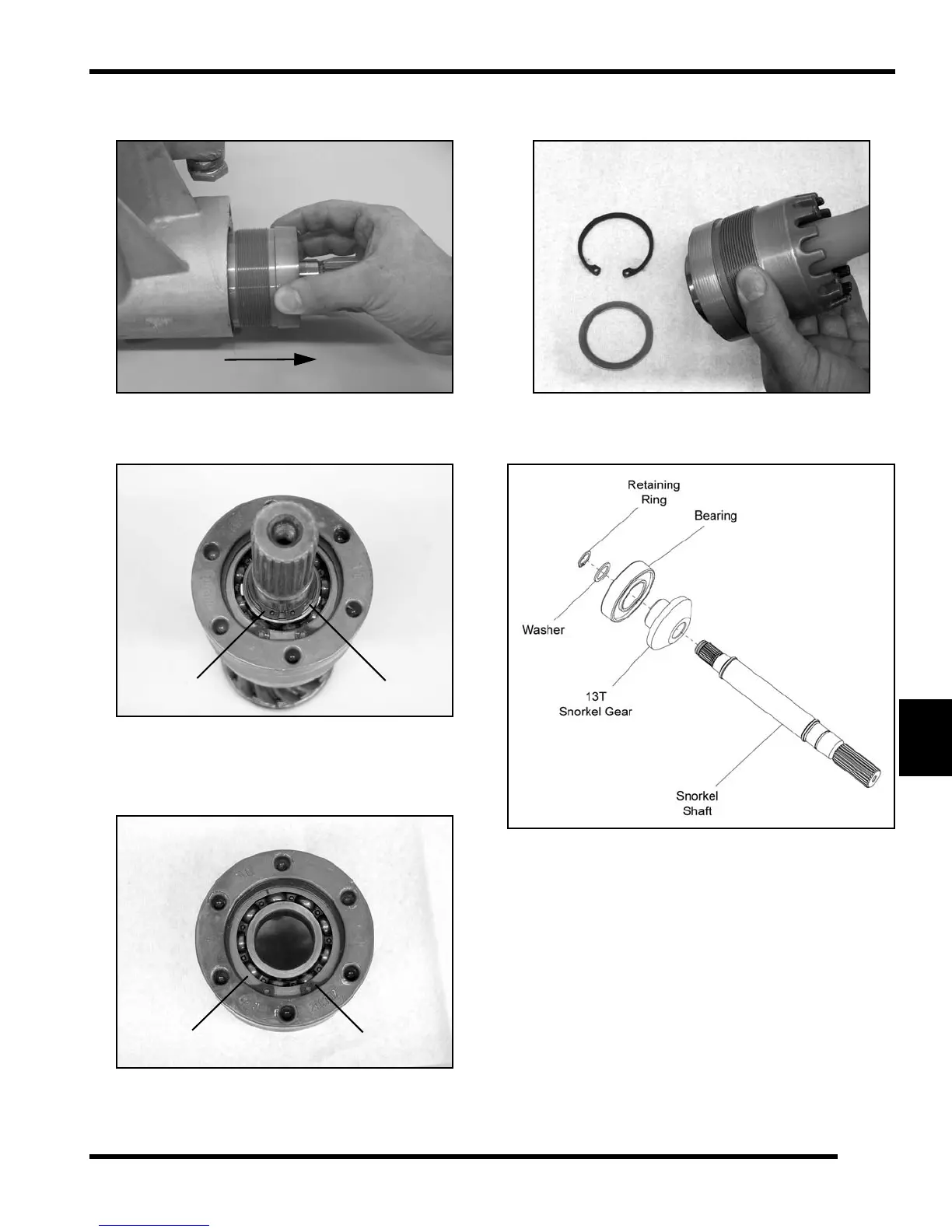

30. Remove the snorkel tube and shaft assembly from the
transmission case.
31. Remove th e sn ap ring (Y) an d sh im (Z) fr om the
snorkel shaf
t.
32. Use an arbor press to remove the snorkel tube from
the snorkel
shaft.
33. Remove the snap ring (A) and shim (B) retaining the
be
aring in the snorkel tube.
34. Lightly tap on the bearing from the opposite side to
r
emove it from the snorkel tube.
35. Remove the re taining ring to remove the remaining
wa
sher, bearing and gear from the snorkel shaft.
YZ
B
A
