PVT SYSTEM SERVICE

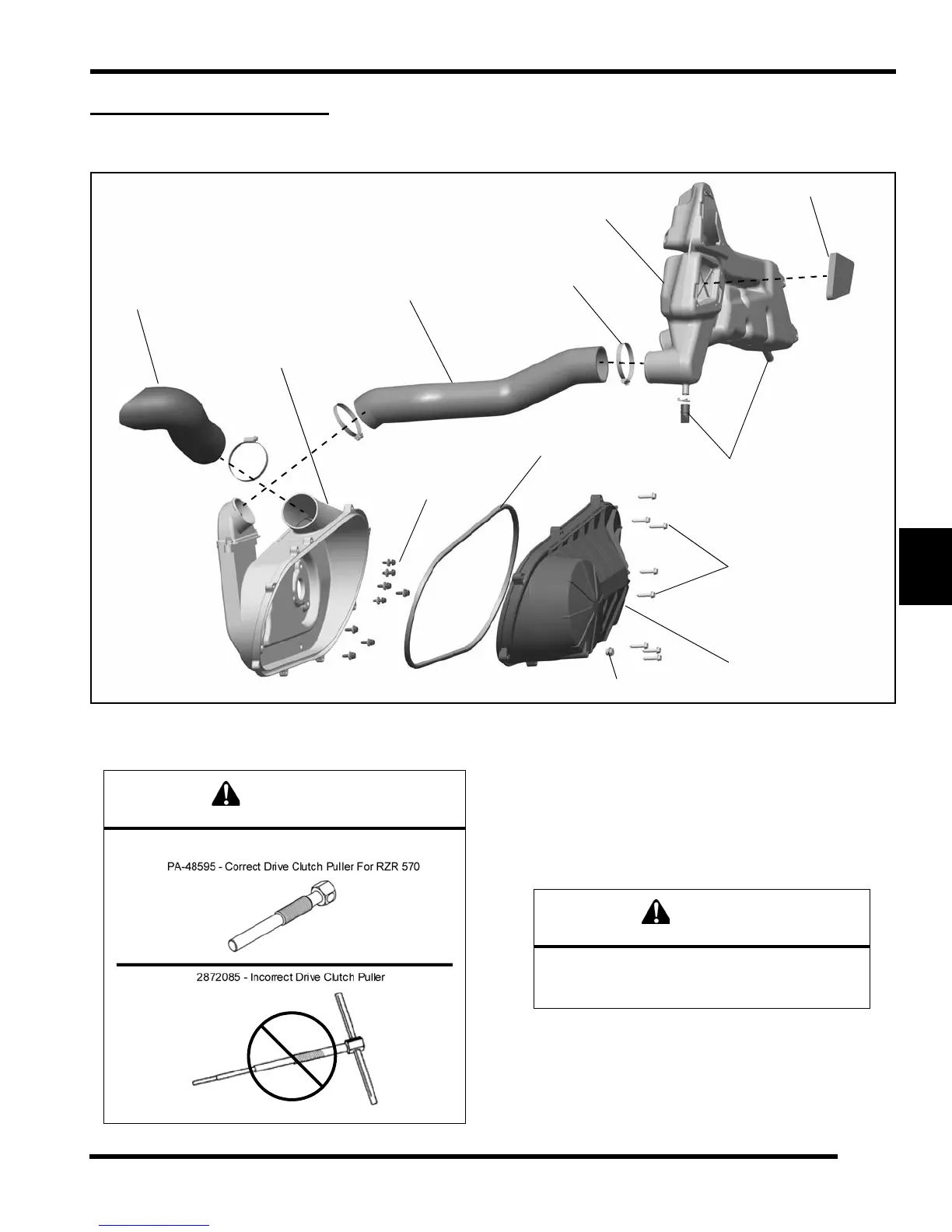

PVT Covers and Ducting Components
PVT Disassembly
1. Remove the seats an d en gine service pan el (see
chapter 5).
2. Disconnect the (-) negative battery terminal.
3. Place transmission in neutral.
4. Raise and support the vehicle.
5. Remove the left rear wheel.
Inner
Clutch
Outer
Cover
Outer
Outlet Duct
Screws
Clutch Cover
Clutch Cover
Cover Seal
Bolt &
Washer
Intake Hose
Clutch Intake
Box
Filter
Drain
(5 Nm)
45-50 in. lbs.
12 ft. lbs.
(16 Nm)
Drain
Clamp
CAUTION
Correct Drive Clutch Puller P/N PA-48595
CAUTION
Serious injury may result if machine tips or falls.
Be sure machine is secure before beginning this
service procedure.
