7.13
FINAL DRIVE
7
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

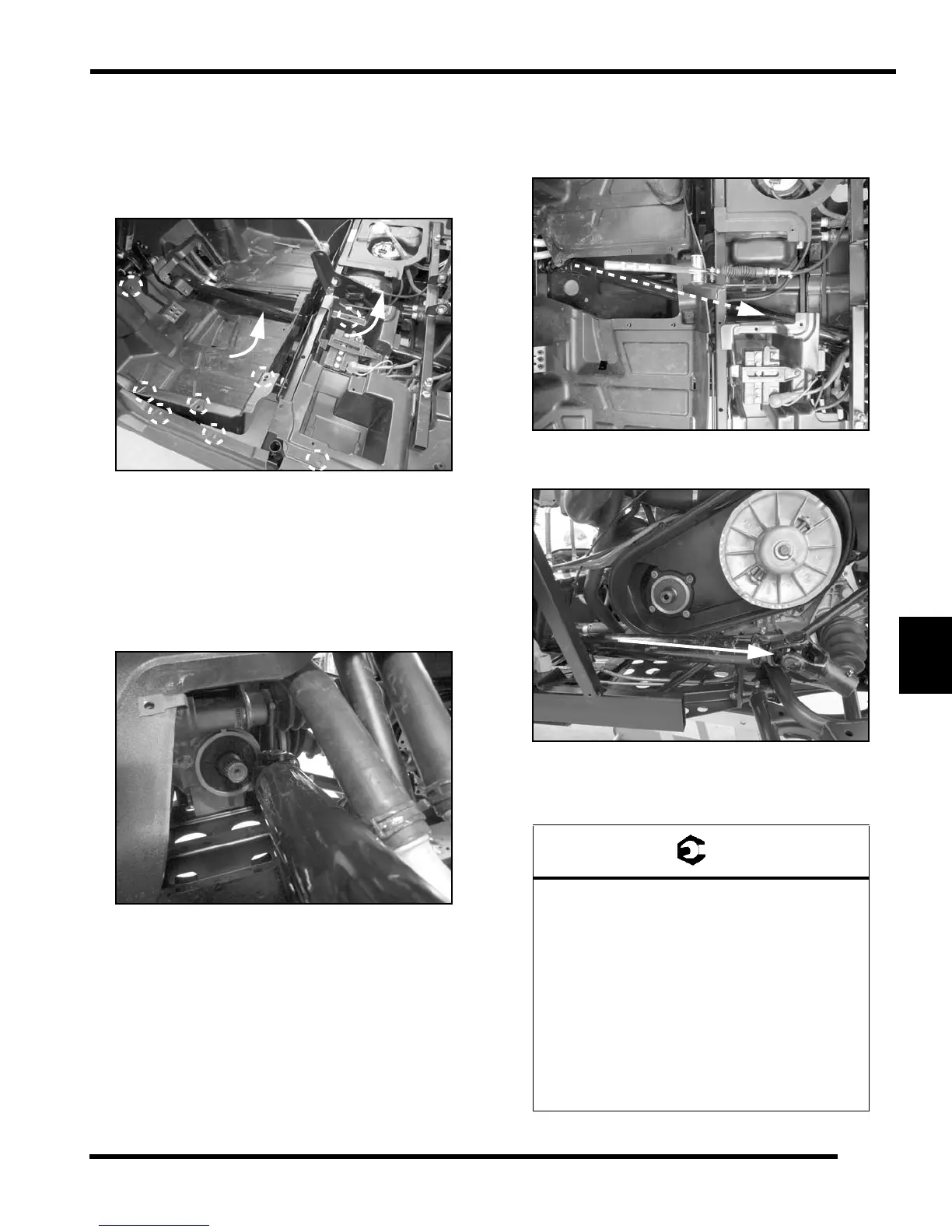

9. Remove the T-2 7 To rx screws an d the push p ins
securing the driver’s side floor, left-hand rocker panel
and th e rear le ft-hand pa nel div ider a s ou tlined in
Chapter 5.
10. Gently lift and support floor and panel divider upward
in
order to allow the prop shaft to pass beneath them.
11. Slide prop shaft back far enough to remove it from the
fr
ont gearcase input shaft splines.
12. Pull s harply fo rward to remove th e p ropshaft fr om
transmission shaf
t.
13. Position prop shaft to the right-hand side of the front
g
earcase as shown.
14. Maneuver the rear of the propshaft towards the left-
ha
nd side of the vehicle under the drivers side floor
and rear left-hand panel divider in the battery area.
Note angle of propshaft below.
15. Remove the propshaft from the left-hand rear wheel
well area.
16. Reverse removal steps to reinstall propshaft. Use a
NEW Ro
ll Pin (Spring Pin) upon reassembly. Torque
all fasteners to specification.
Wheel Nuts:
Steel Wheels: 27 ft. lbs. (37 Nm)
Aluminum Wheels: 30 ft. lbs. + 90° (1/4 turn)
Drive Clutch Retaining Bolt:
47 ft. lbs (63.5 Nm)
Outer Clutch Cover Screws:
50 in. lbs. (5 Nm)
Brake Line Junction Block Mounting Screws:
36 in. lbs. (4 Nm)
