7.19
FINAL DRIVE
7
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

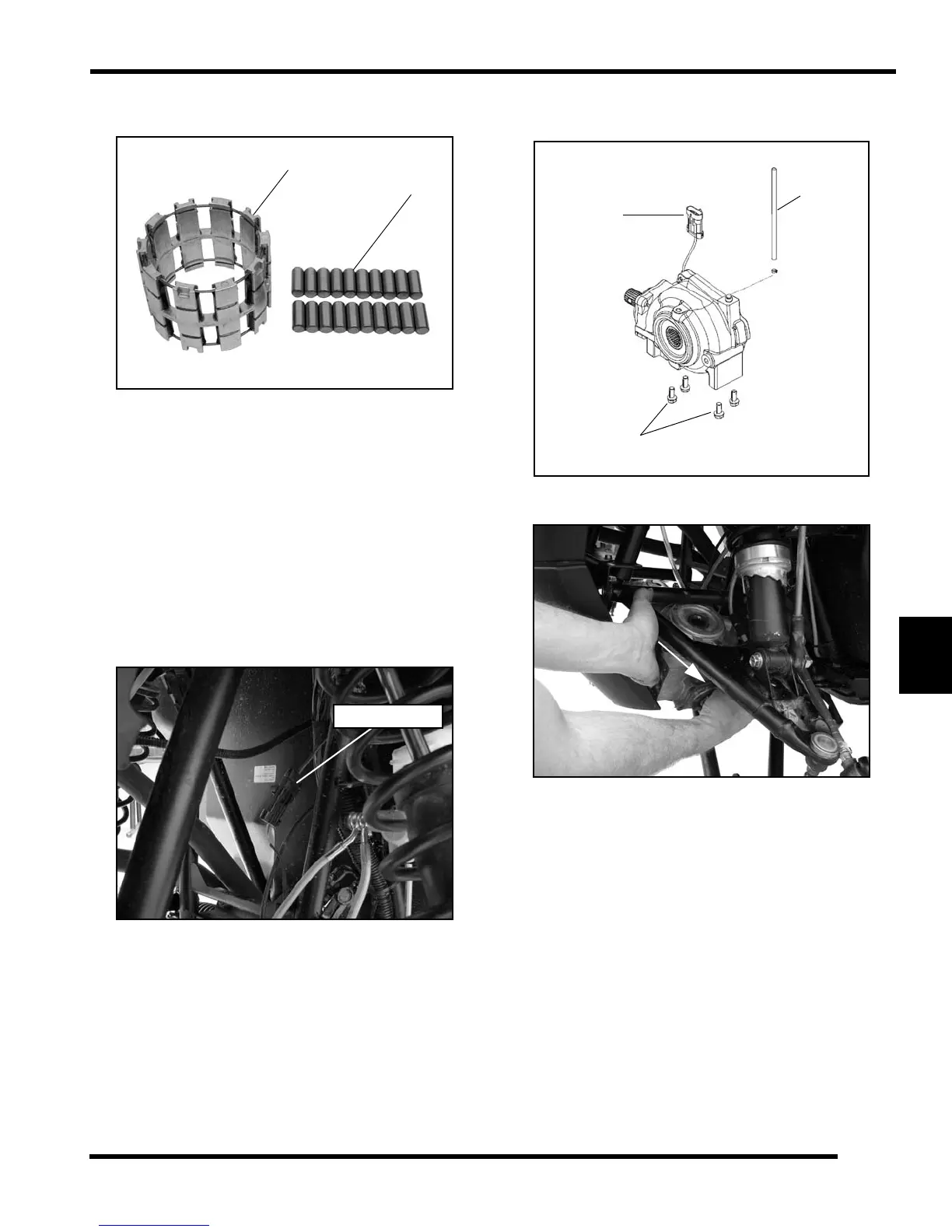

7. Inspect the roll cage assembly for cracks or excessive
wear. If damaged, replace the roll cage assembly.
Gearcase Removal
1. Stop engine and place gear selector in Park.
2. Refer to “FRONT DRIVE SHAFT - Driv e Shaft
Re
moval” and remove both front drive shafts from the
front gearcase.
3. Remove the propshaft from the front gearcase. (see
“PROPS
HAFT SERVICE”).
4. Disconnect the wire harness above the front gearcase
a
nd remove the harness from the retaining dart.
5. Remove the vent line from the front gearcase.
6. Remove the (4) bolts securing the front gearcase to
frame.
7. Remove the ge arcase from the front LH wheel well
a
rea and slide it between the upper and lower A-arm.
Rollers
Roll Cage Assembly
AWD Harness
Remove
Remove
Vent Line
Disconnect
Harness
Gearcase image is
for reference only.
4 Bolts
