BRAKES
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.
PARKING BRAKE (INTL MODEL)

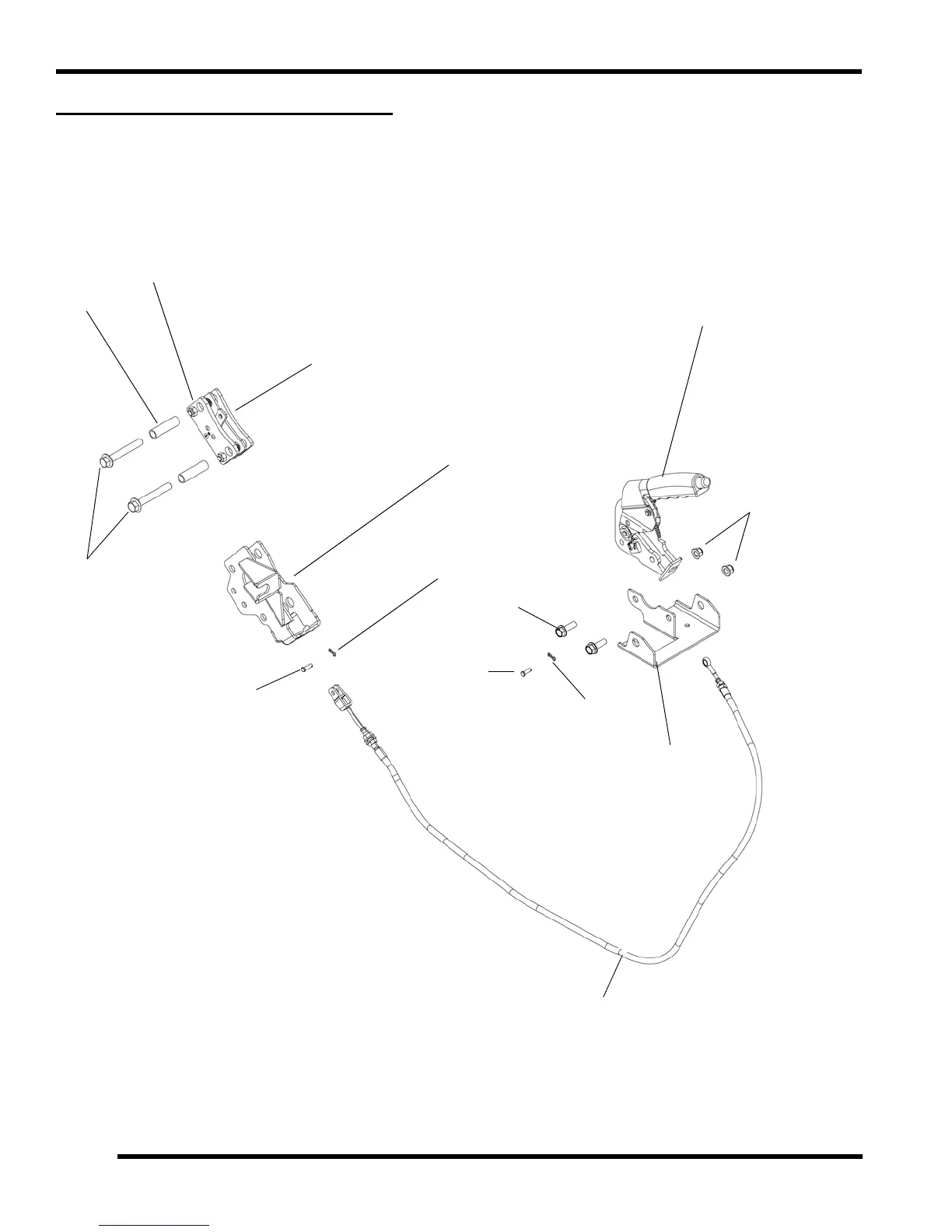

Exploded View
Parking Brake
Lever
Nuts
Clip
Cable
Parking Brake
Caliper
Parking Brake Caliper / Shift Cable
Bolts
Clevis
Pin
Mounting
Assembly
16 ft. lbs.
(22 Nm)
37 ft. lbs.
(50 Nm)
Bolts
Spacer
Clip
Clevis
Pin
Parking Brake Lever
Mount Bracket
Mount Bracket
(50 Nm)
37 ft. lbs.
Bolts
