7.2
FINAL DRIVE
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.
SPECIAL TOOLS
SPX Tools: 1-800-328-6657 or http://polaris.spx.com/.
TORQUE SPECIFICATIONS
Wheel and Hub Torque Ta ble

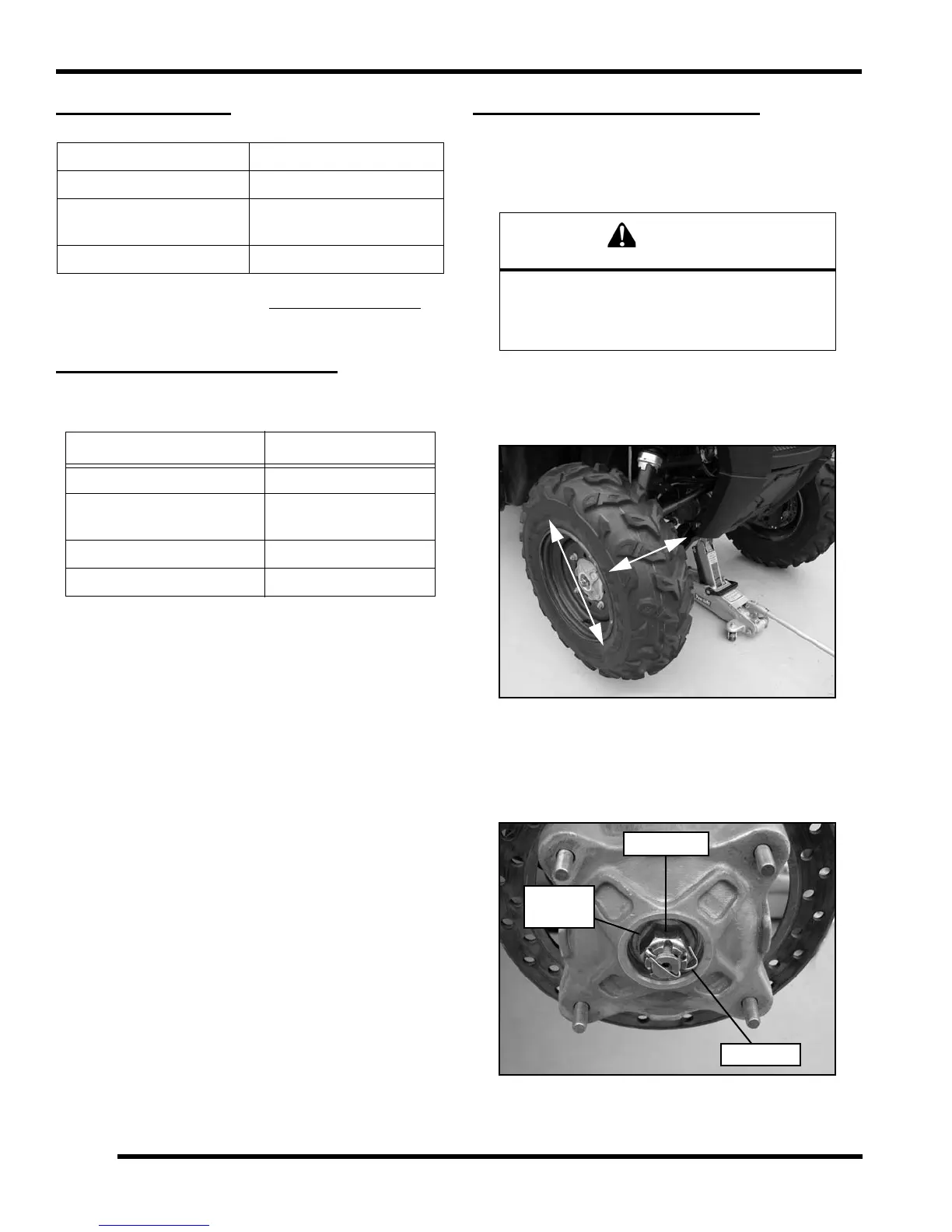

FRONT BEARING CARRIER
Bearing Carrier Inspection / Removal
1. Elevate front of vehicle and safely support machine
under the frame area.
2. Check bearings for side play by grasping the top and
bottom o
f the tire firmly and checking for movement.
The tire should rotate smo othly witho ut b inding or
rough spots.
3. Remove the (4) wheel nu ts an d re move the front
wh
eel.
4. Remove the cotter pin and loosen the front wheel hub
ca
stle nu t. Re move th e nut, and (2 ) cone washers
from the front wheel hub assembly.
5. Remove the fastener retaining the steering tie rod end
to
the front bearing carrier.
PART NUMBER TOOL DESCRIPTION
2872608 Roll Pin Removal Tool
8700226
CV Boot Clamp Pliers
(earless
type)
PU-48951 Axle Boot Clamp Tool
ITEM SPECIFICATION
Steel Wheel Nuts 27 ft. lbs. (37 Nm)
Aluminum Wheel Nuts
(I
NTL)
30 ft. lbs. (41 Nm)
+ 90° (1/4 turn)
Front Hub Castle Nut 80 ft. lbs. (108 Nm)
Rear Hub Castle Nut 80 ft. lbs. (108 Nm)
CAUTION
Serious injury may result if machine tips or falls.
Be sure machine is secure before beginning this
service procedure. Wear eye protection when
removing bearings and seals.
Castle Nut
Cotter Pin
Cone
Washers
