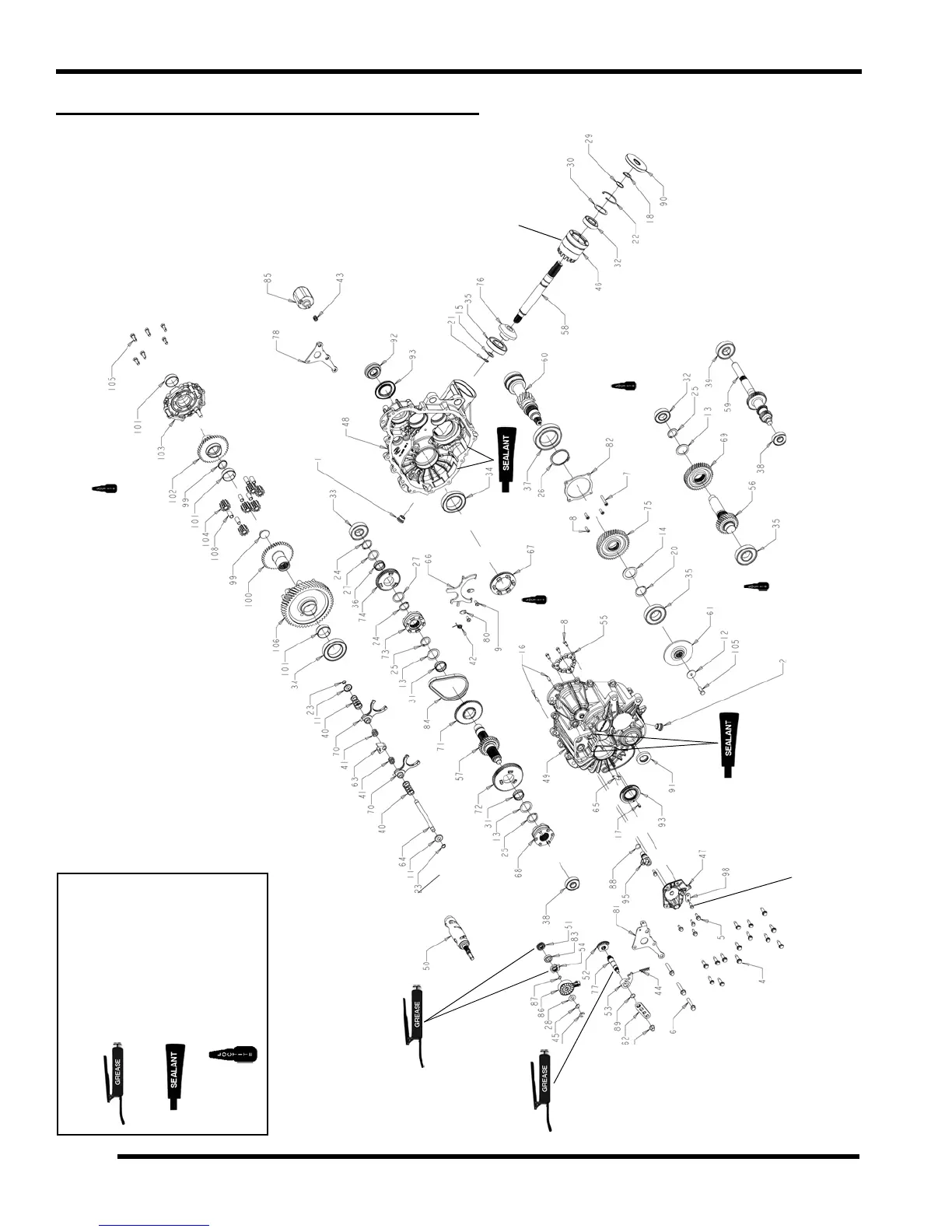

TRANSMISSION EXPLODED VIEW (INTL)
FOR REASSEMBLY
Apply White Lithium Based Grease.
Apply Polaris Crankcase Sealant.
Apply Loctite
®
to
the bolt threads.
12-18 ft. lbs.
(16-24 Nm)
10-14 ft. lbs.
(14-19 Nm)
8-10 ft. lbs.
(11-14 Nm)
242
™
242
™
Refer to “Snorkel Gear
Backlash Procedure”
10-14 ft. lbs.
(14-19 Nm)
8-10 ft. lbs.
(11-14 Nm)
15-20 ft. lbs.
(20-27 Nm)
15-20 ft. lbs.
(20-27 Nm)
9-12 ft. lbs.
(12-16 Nm)
18-22 ft. lbs.
(24-30 Nm)
7-10 ft. lbs.
(10-14 Nm)
18-22 ft. lbs.
(24-30 Nm)
