10.7
ELECTRICAL
10
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

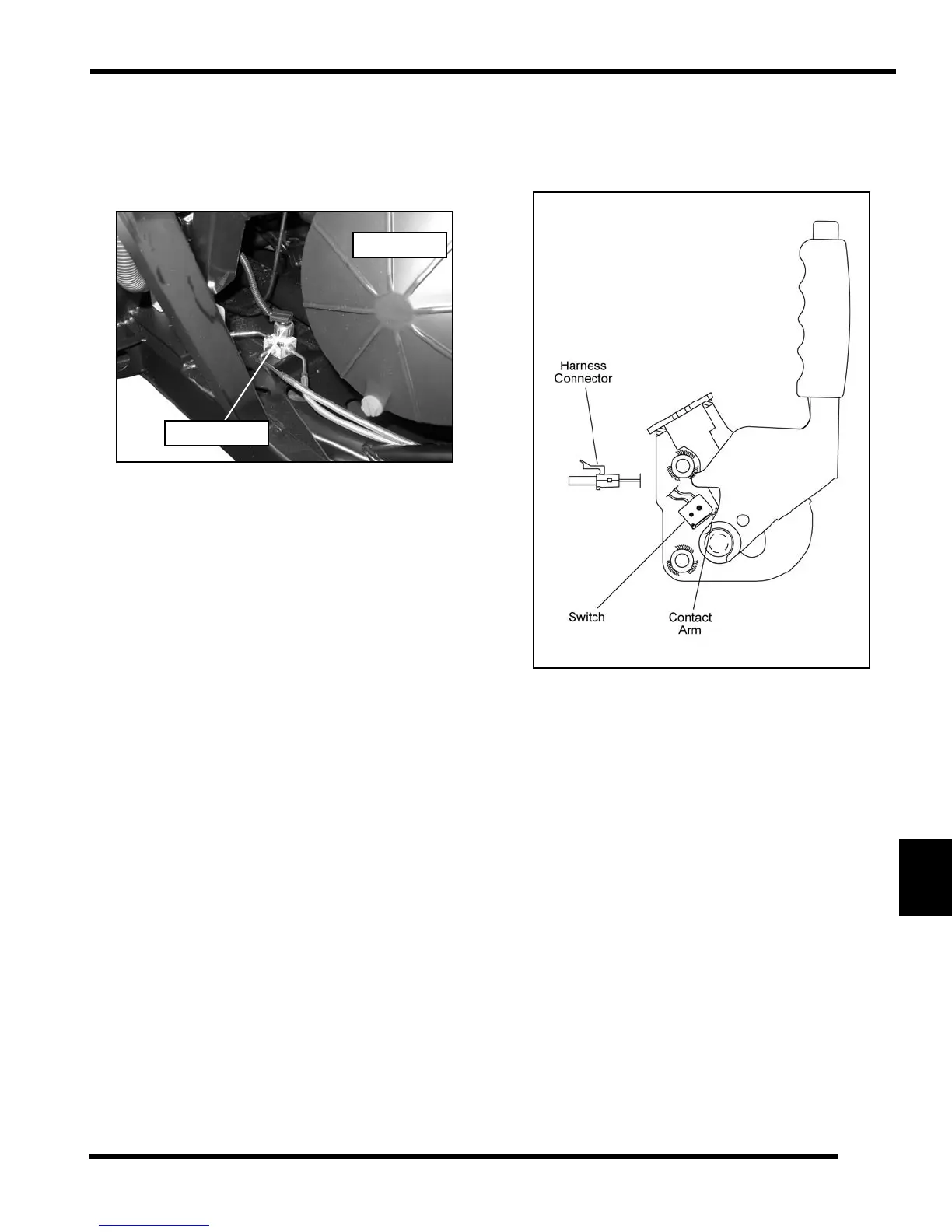

Brake Light Switch
1. The br ake switch ca n be acce ssed thr ough the L H
rear wheel well area. The switch is located near the
outer PVT cover along th e lower fr ame. The b rake
pressure switch is installed into the cross fitting block.
2. Disconnect wire harness from switch and connect an
o
hmmeter acr oss switch co ntacts. The reading
should be infinite (OL).
3. Apply the brake and check for continuity. If there is no
con
tinuity or if re sistance is gr eater than 0.5 ohms,
clean the switch terminals. Re-test and replace switch
if necessary.
Parking Brake Switch (INTL Model)
The p arking brak e s witch is located within the p arking
brake lever. Remove the rubber boot covering the parking
brake lever to locate the internally mounted switch.
The switch remains in the “open” position when the park
br
ake lever is not applied.
When the parking brake lever is applied, the switch makes
cont
act and sends volt age to the ECU to illuminate
“BRAKE” in th e in strument clu ster r ider in formation
display area (see “Park Brake Indicator”).
NOTE: If the pa rking bra ke is applied th e ECU will
r
ev limit th e engine at 1500 RPM until the park ing
brake is relea sed. This f eature has be en ad ded t o
prevent drive-away with the parking brake applied.
