Polaris 2012 RANGER RZR 570 INTL

3.14
ENGINE / COOLING SYSTEM
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.
ENGINE COOLING SYSTEM

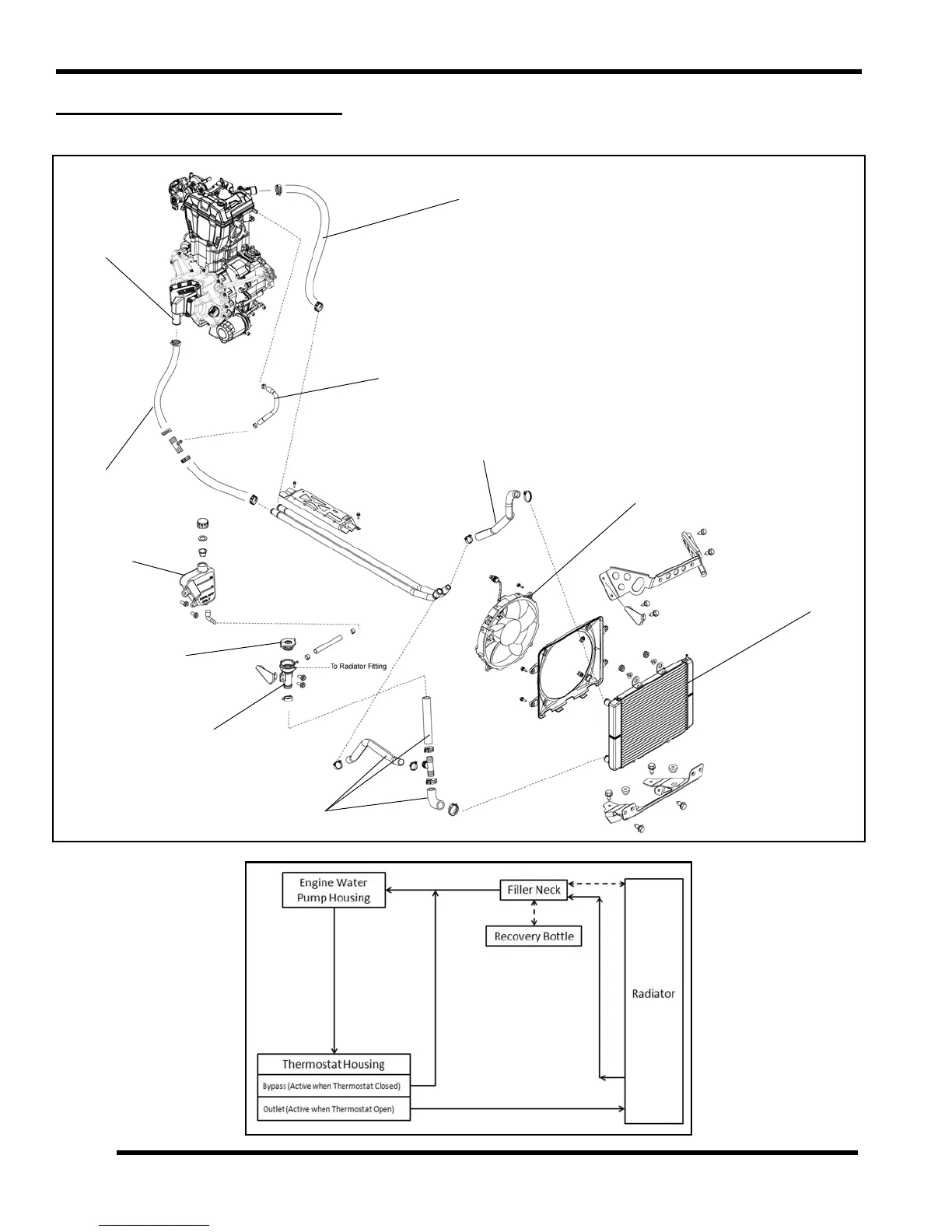

Cooling System Exploded View and Coolant Flow Diagram
Water Pump
Upper Engine Hose
Lower Engine
Hose
Bypass Hose
Radiator
Recovery
Bottle
Upper Radiator
Hose
Pressure Cap
Filler Neck
Hoses
Cooling Fan
