6.12
CLUTCHING
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.
DRIVE CLUTCH SERVICE

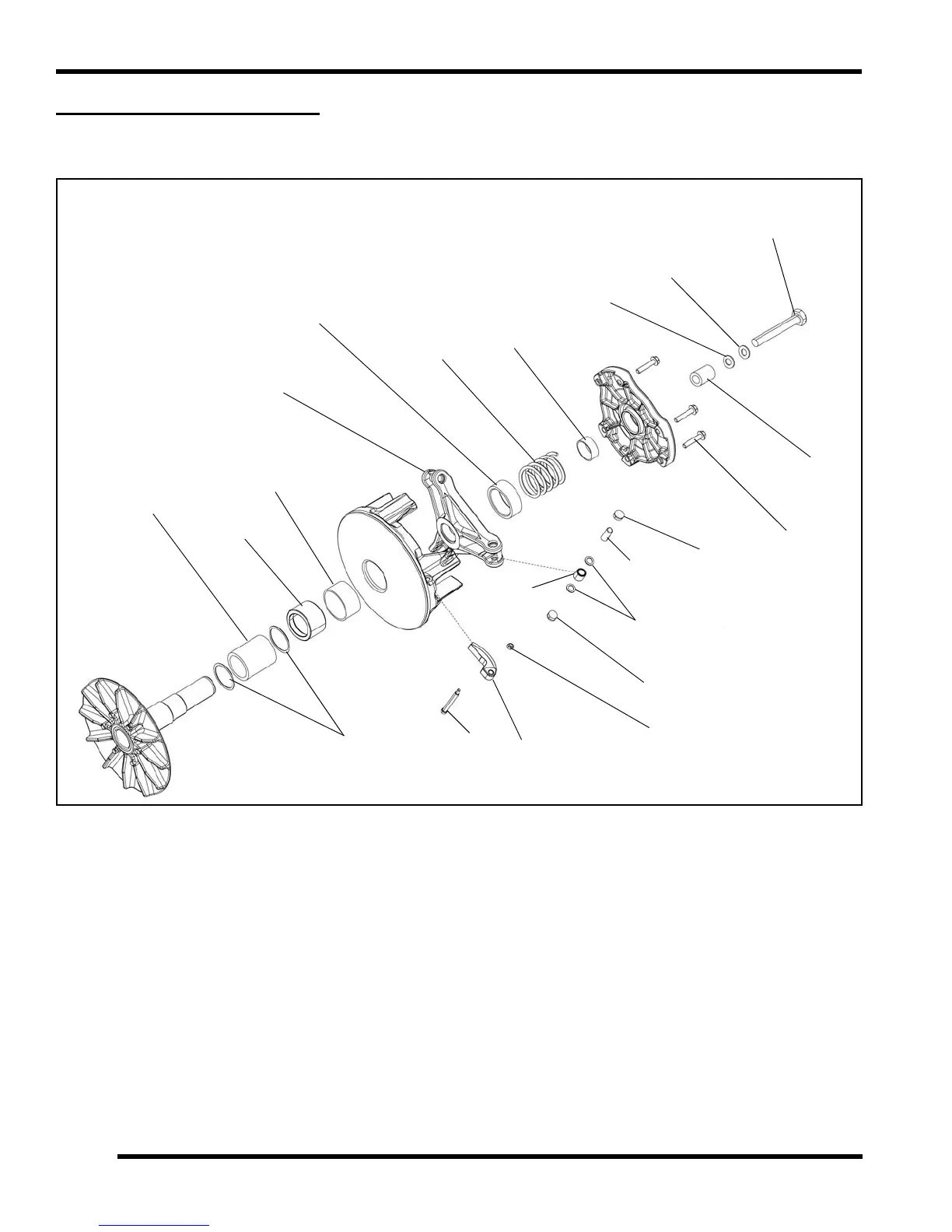

Drive Clutch Exploded View
Washers
Spring
Bushing
Lock
Washer
Bolt
Flat
Washer
Cover
Screws
Button
Pin
Washers
Roller
Nut
Shift
Weight
Bushing
Spider
Button
Non-Braking
Bearing
Bushing
Spacer
100 in. lbs. (12Nm)
25 in. lbs. (2.8 Nm)
210 ft. lbs. (284 Nm)
Clutch Bolt
Replace If Removed
47 ft. lbs. (63.5 Nm)
Limiter Spacer
