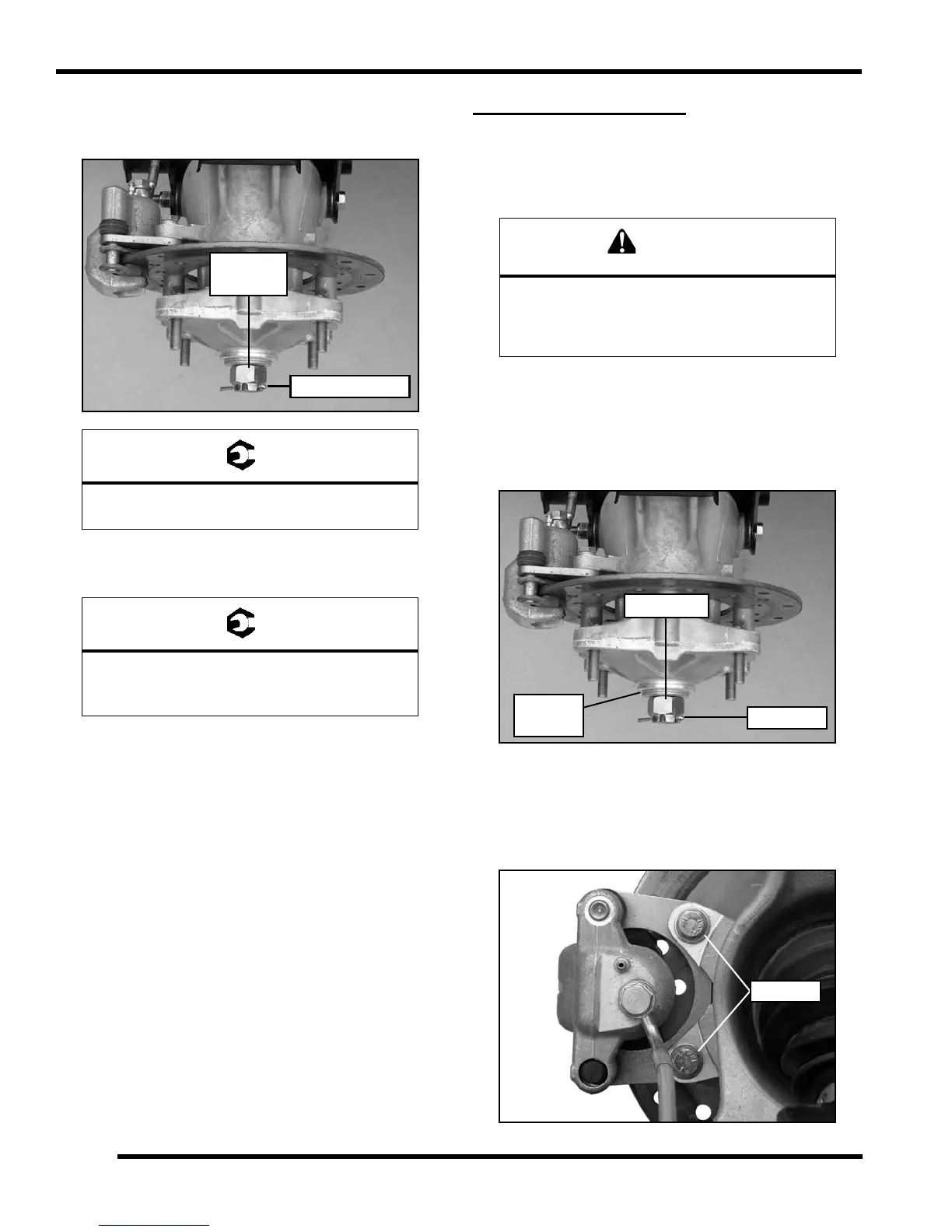

FINAL DRIVE
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.
6. Torque whe el hub nut to 80 ft. lbs. (1 08 Nm) an d
install a NEW cotter pin. Tighten nut slightly if
necessary to align cotter pin holes.
7. Install wheel and (4) wheel nuts. Torque wheel nuts
to specification.
8. Rotate wheel and check for smooth operation. Bend
b
oth end s of co tter pin ar ound en d of spindle in
different directions.
REAR DRIVE SHAFT
Drive Shaft Removal
1. Elevate re ar of ve hicle a nd safely sup port machine
under the frame area.
2. Remove th e ( 4) wheel n uts and re move th e r ear
wh
eel.
3. Remove the cotter pin and loosen the rear wheel hub
ca
stle nu t. Re move th e nut, and (2 ) cone washers
from the rear wheel hub assembly.
4. Remove and discard the two brake caliper attaching
bolts. 
CAUTION: Do no
t hang the caliper by the brake line.
Use wire to hang caliper to p revent da mage to the
brake line.
= T
Wheel Hub Castle Nut:
80 ft. lbs. (108 Nm)
= T
Wheel Nuts:
Steel Wheels: 27 ft. lbs. (37 Nm)
Aluminum Wheels: 30 ft. lbs. + 90° (1/4 turn)
80 ft. lbs.
(108 Nm)
NEW Cotter Pin
CAUTION
Serious injury may result if machine tips or falls.
Be sure machine is secure before beginning this
service procedure. Wear eye protection when
removing bearings and seals.
Castle Nut
Cotter Pin
Cone
Washers
Remove
