FINAL DRIVE
7
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

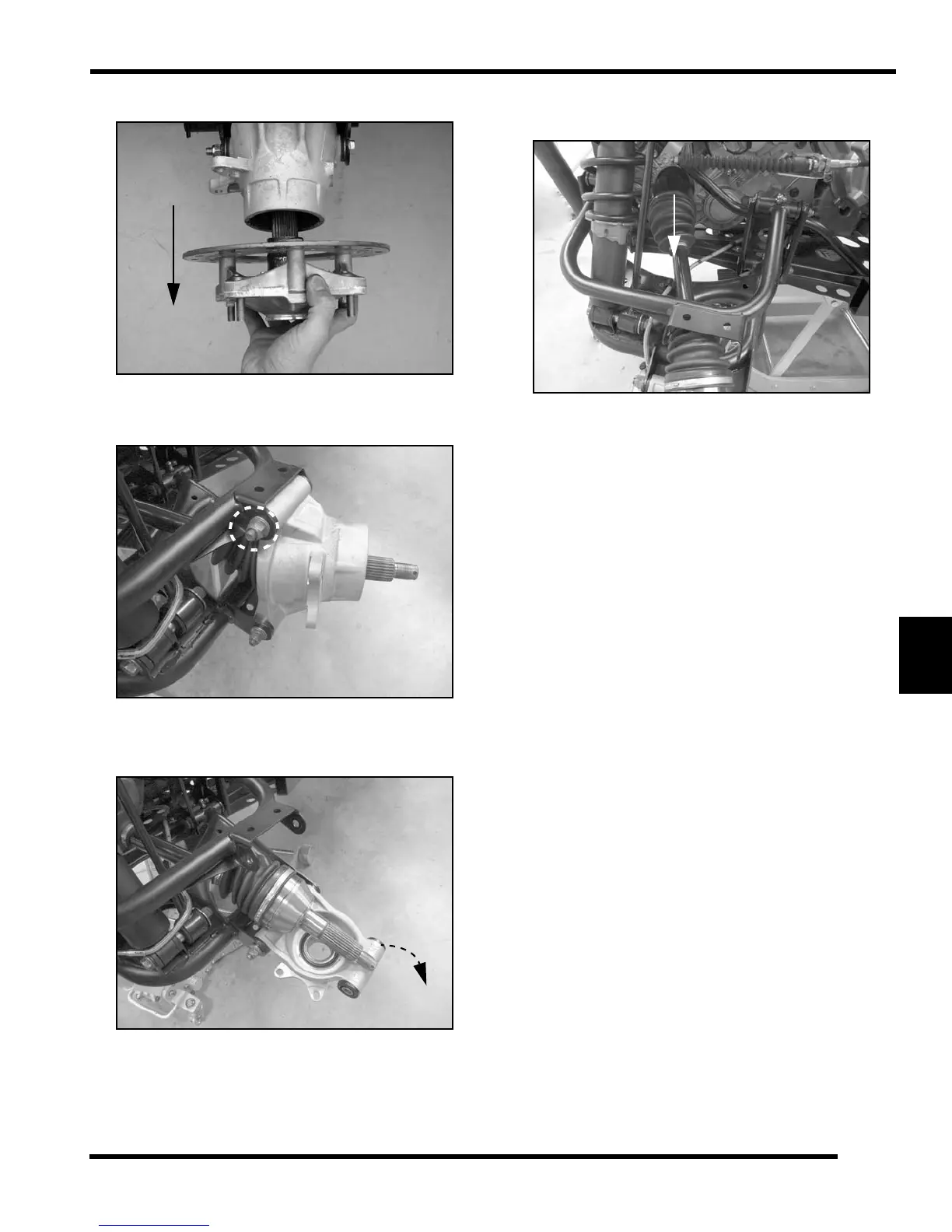

5. Remove the rear wheel hub assembly.
6. Remove the bolt that attaches the rear bearing carrier
to the up
per A-arm.
7. Slide the rear drive shaft out of the bearing carrier by
pulling the bearin g carrier ass
embly outward and
tipping it down to remove the shaft.
8. Grasp the rear drive shaft and pull sharply outward on
the
shaft to disengage it from the rear gearcase.
NOTE: Take c are wh en removing t o prevent
d
amaging the seal.
9. Inspect the axle spline s a nd CV boo ts for any
da
mage.
