ENGINE / COOLING SYSTEM
3
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

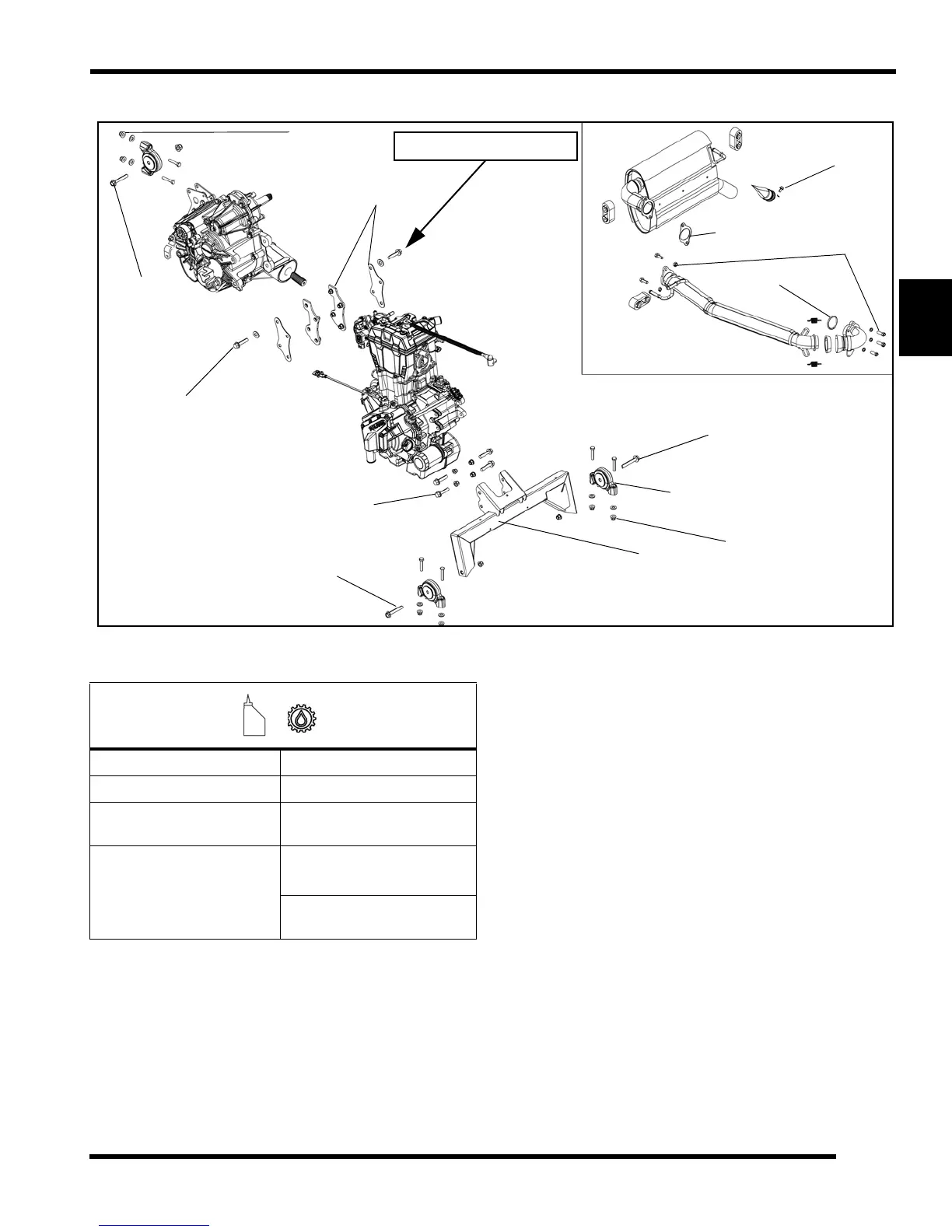

Engine Mounting and Torque Values
Engine Lubrication S
pecifications
Oil Capacity Approx. 2 Quarts (1.9 L)
Oil Filter Wrench PU-50105 or 2.5” (64 mm)
Oil Type
Polaris PS-4 Plus
Synthetic Engine Oil
Oil Pressure
Minimum Specification
(using Polaris
PS-4 Plus at
operating temperature)
10 PSI @ 1200 RPM
(Minimum)
40 PSI @ 7000 RPM
(Minimum)
Front Engine Mount
Isolator Mount
Exhaust System
25 ft. lbs.
(34 Nm)
18 ft. lbs.
(24.5 Nm)
40 ft. lbs.
(54 Nm)
25 ft. lbs.
(34 Nm)
40 ft. lbs.
(54 Nm)
55 ft. lbs.
(74.5 Nm)
Coupler Brackets
40 in. lbs.
(4.5 Nm)
Gasket
Seal
See Torque Sequence
See Engine Installation For
Critical Torque Procedure
40 ft. lbs.
(54 Nm)
40 ft. lbs.
(54 Nm)
To Next Page
