5.2
BODY / STEERING / SUSPENSION
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

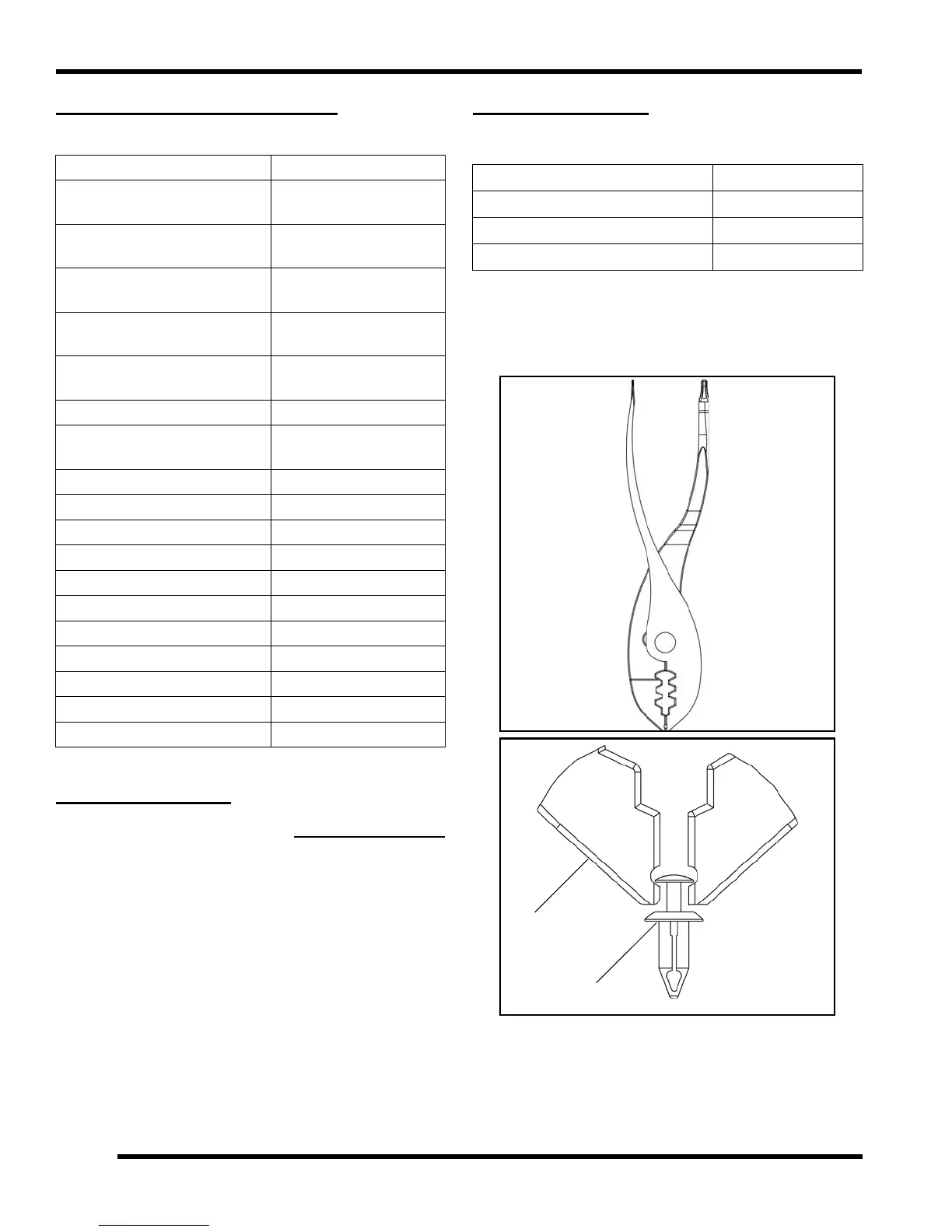

TORQUE SPECIFICATIONS
SPECIAL TOOLS
SPX: 1-800-328-6657 or on-line at http://polaris.spx.com/
SPECIAL TOOLS
Multi-Function Pliers
Included in the tool kit, the multi-function pliers is designed
to re move th e p lastic push rivets u sed to fasten bo dy
components.
ITEM TORQUE VALUE
Front LH/RH Upper / Lower
A-Arm Bolt 39 ft. lbs. (53 Nm)
Rear LH/RH Upper / Lower
A-Arm Bolt 39 ft. lbs. (53 Nm)
Lower LH/RH
Rear
Bearing Carrier 40 ft. lbs. (54 Nm)
Upper LH/RH
Rear
Bearing Carrier 40 ft. lbs. (54 Nm)
Outer Tie Rod to
Bearing C
arrier Housing
42.5 ft. lbs. (58 Nm)
Front Ball Joint Pinch Bolts 23 ft. lbs. (31 Nm)
Shock Mounting Bolts
37 ft. lbs. (50 Nm)
Wheel Hub Castle Nuts 80 ft. lbs. (108 Nm)
Wheel Nuts (Cast Rims) 90 ft. lbs. (122 Nm)
Wheel Nuts (Steel Rims) 27 ft. lbs. (37 Nm)
Tie Rod End Jam Nut 13 ft. lbs. (18 Nm)
Seat Belt to Seat Base 40 ft. lbs. (54 Nm)
Tilt Shock Upper Fastener 7 ft. lbs. (10 Nm)
Tilt Shock Lower Fastener 12 ft. lbs. (16 Nm)
Steering Pivot Tube Fasteners 23 ft. lbs. (31 Nm)
Steering Wheel to Shaft 42 ft. lbs. (57 Nm)
Lower Steering Shaft to Box 30 ft. lbs. (41 Nm)
Steering Gear Box 17 ft. lbs. (23 Nm)
TOOL DESCRIPTION PART NUMBER
Shock Spanner Wrench 2871095
Shock Spring Compressor Tool 2870623
Multi-Function Pliers 2876389
Pliers
Push Rivet
