FINAL DRIVE

9923523 - 2012 RANGER RZR 570 Service Manual

Bearing Installation

1. Thoroughly cle an the rear be aring car rier ho using

nd the outer race on the new bearing. Be sure that

all oil residue has been removed from each surface.

2. Support the bottom of the bearing carrier housing.

3. Apply Lo

ctite

603

™

retaining compound to the outer

circumference of the new bearing race and carefully

press th e ne w be aring into the bearing ca rrier

housing.

NOTE: Use ca re to no t allow any of the L octite

compound to get in the bearing.

4. Wipe the housing clean of any excess compound and

ins

tall the snap ring.

Bearing Carrier Bushing Replacement

Check be aring carrier bu shings and piv ot tu bes for

excessive wear or d amage. If r eplacement is r equired,

slide p ivot tube s out a nd re move bu shings with a d rift

punch. Install new bushings by pr essing th em into th e

bearing carrier.

CAUTION

Use an arbor and press only on the outer race,

otherwise bearing damage may occur.

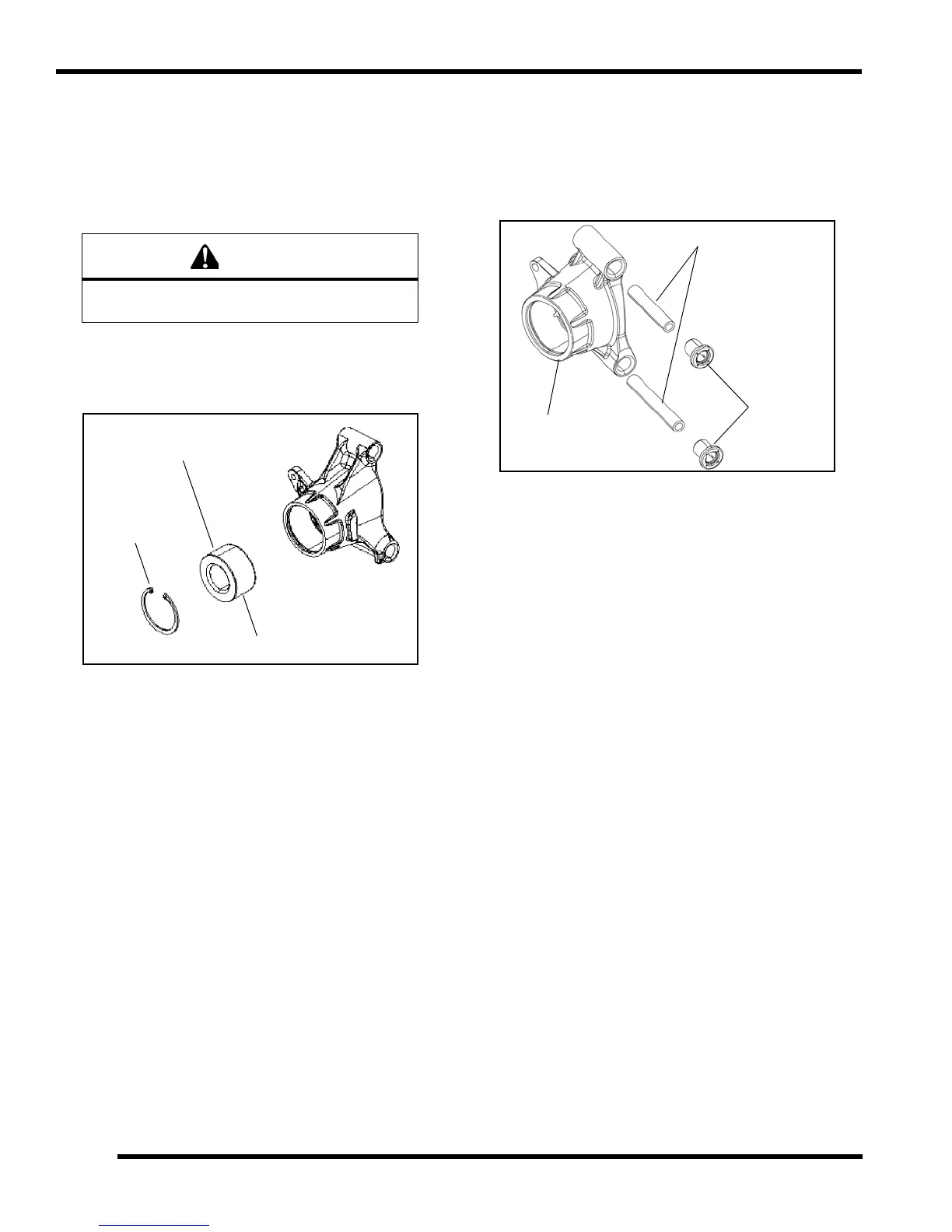

Apply

Loctite® 603™

Bearing

Snap Ring

Pivot Tube

Control Arm

Bushing

Bearing

Carrier
