Polaris 2012 RANGER RZR 570 INTL User Manual

9.25
BRAKES
9
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.
REAR CALIPER SERVICE

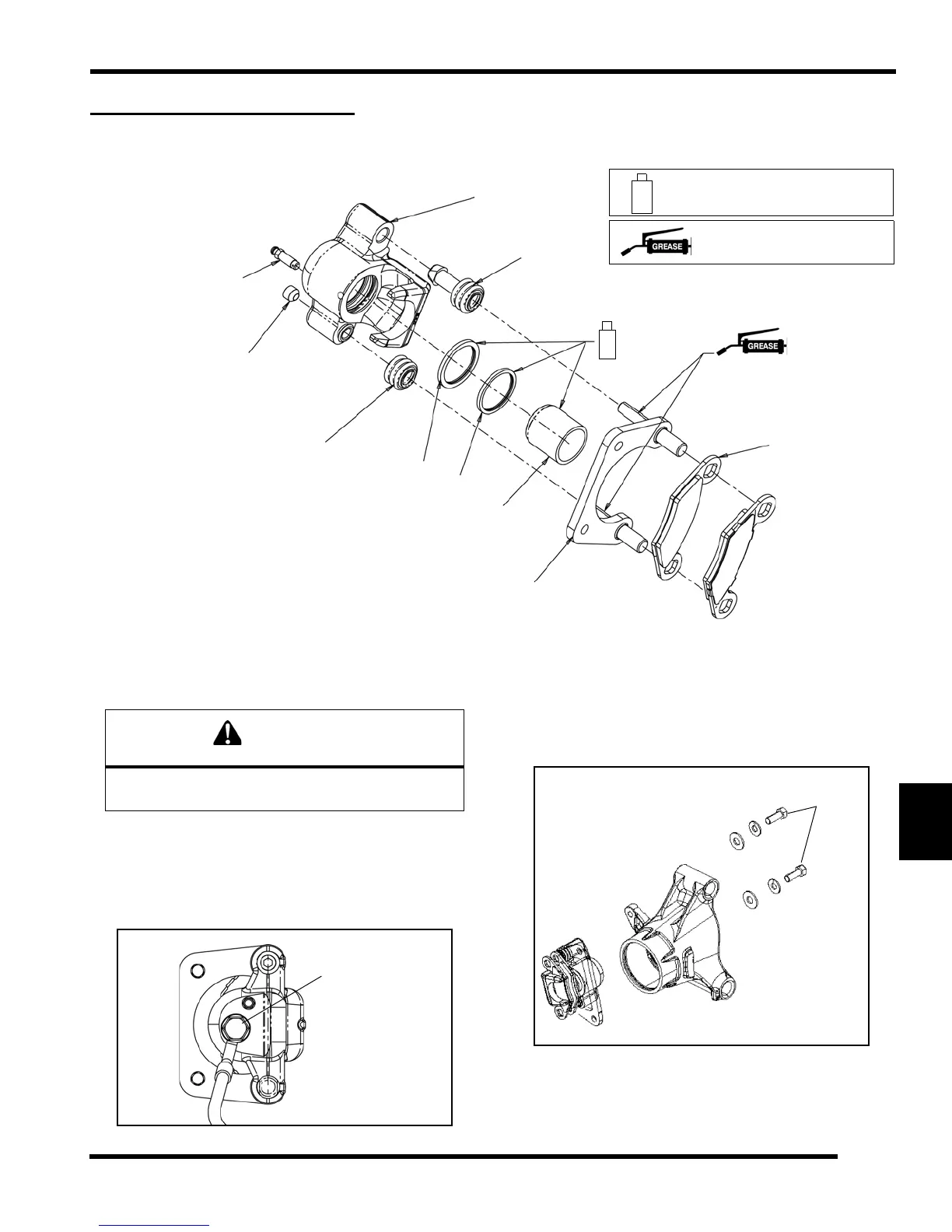

Caliper Exploded View
Caliper Removal
1. Elevate and safely support the rear of the vehicle.
2. Remove the (4) wheel nuts and rear wheel.
3. Clean caliper area before removal.
4. Place a container below the caliper to catch the brake
fluid
when removing the line. Remove brake line from
caliper.
5. Loosen the brake pad adjustment set screw to allow
br
ake pad removal after the caliper is removed.
6. Remove and discard the two caliper mounting bolts
an
d remove the caliper.
A. Brake Pad
B. Mount Bracket
C. Piston
D. Caliper Assy.
E. Square Ring
(thick)
F. Square Ring (thin)
G. Boot, Pin Bushing
H. Boot, Pin Seal
I. Bleeder Screw
K. Set Screw
A
B
C
D
E
F
G
H
I
K
Apply Polaris DOT 4 Brake Fluid
to Component
Apply Silicone Grease
47 in. lbs.
(5.3 Nm)
CAUTION
Use care when supporting vehicle so that it does not
tip or fall. Severe injury may occur.
Remove
Brake Line
Remove
