BRAKES
9
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

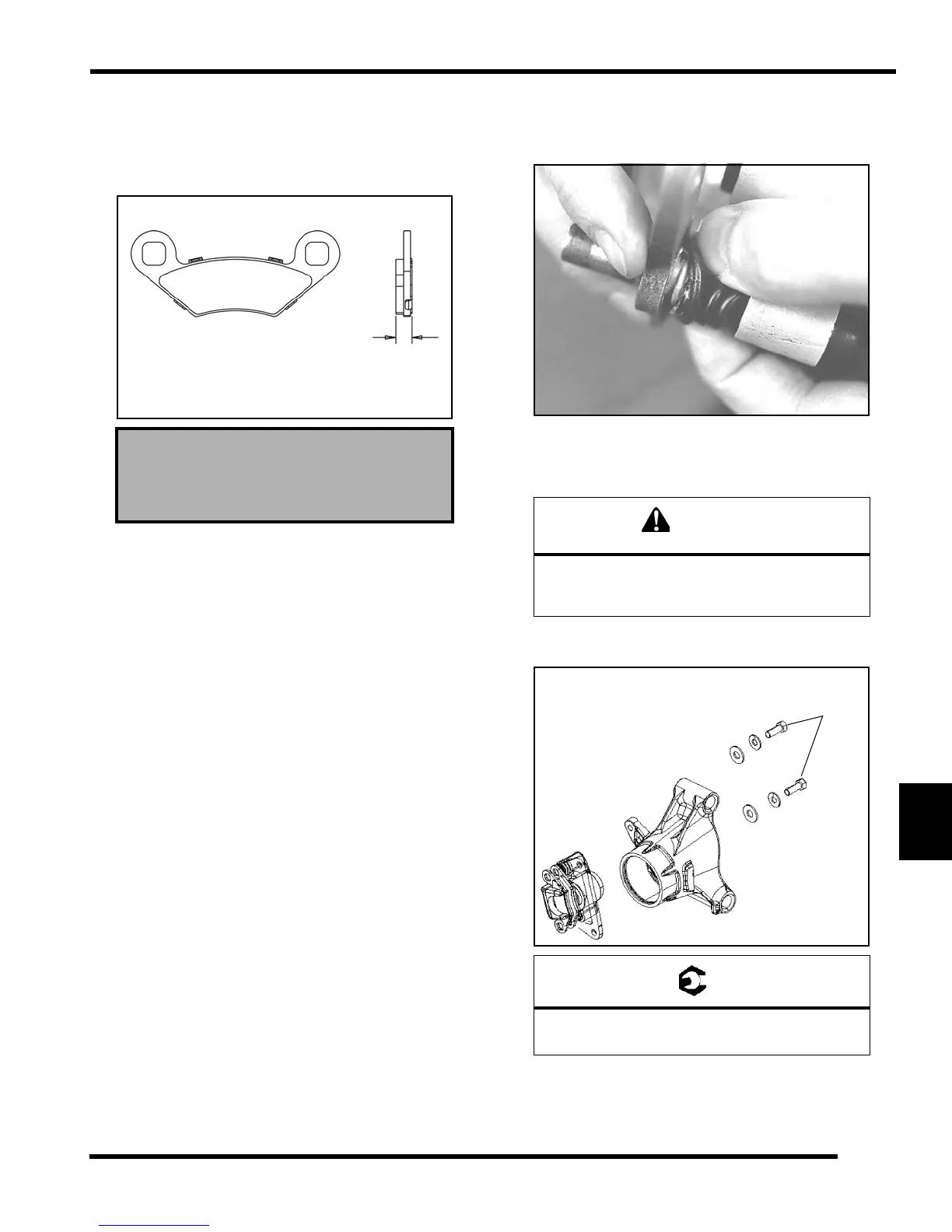

Pad Inspection
1. Clean the caliper with brake cleaner or alcohol.
2. Measure the thickness of the pad material. Replace
p
ads if worn beyond the service limit.
Pad Assembly / Installation
1. Lubricate mounting br acket pins with a ligh t film of
silicone grease and install rubber dust boots.
2. Compress mo unting b racket and ma ke sur e dust
bo
ots ar e fu lly se ated. In stall pa ds with fric tion
material facing each other.
3. Install caliper and torque the ne
w mounting bolts to
specification.
Rear Brake Pad Thickness
New .298” ± .007” (7.57 mm ± .178 mm)
Service Limit .180” (4.6 mm)
Measure
Thickness
WARNING
If brake pads are contaminated with grease,
oil, or liquid soaked do not use the pads.
Use only new clean pads.
= T
Rear Caliper Mount Bolt Torque:
44 ft. lbs. (60 Nm)
44 ft. lbs.
(60 Nm)
