ELECTRICAL
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

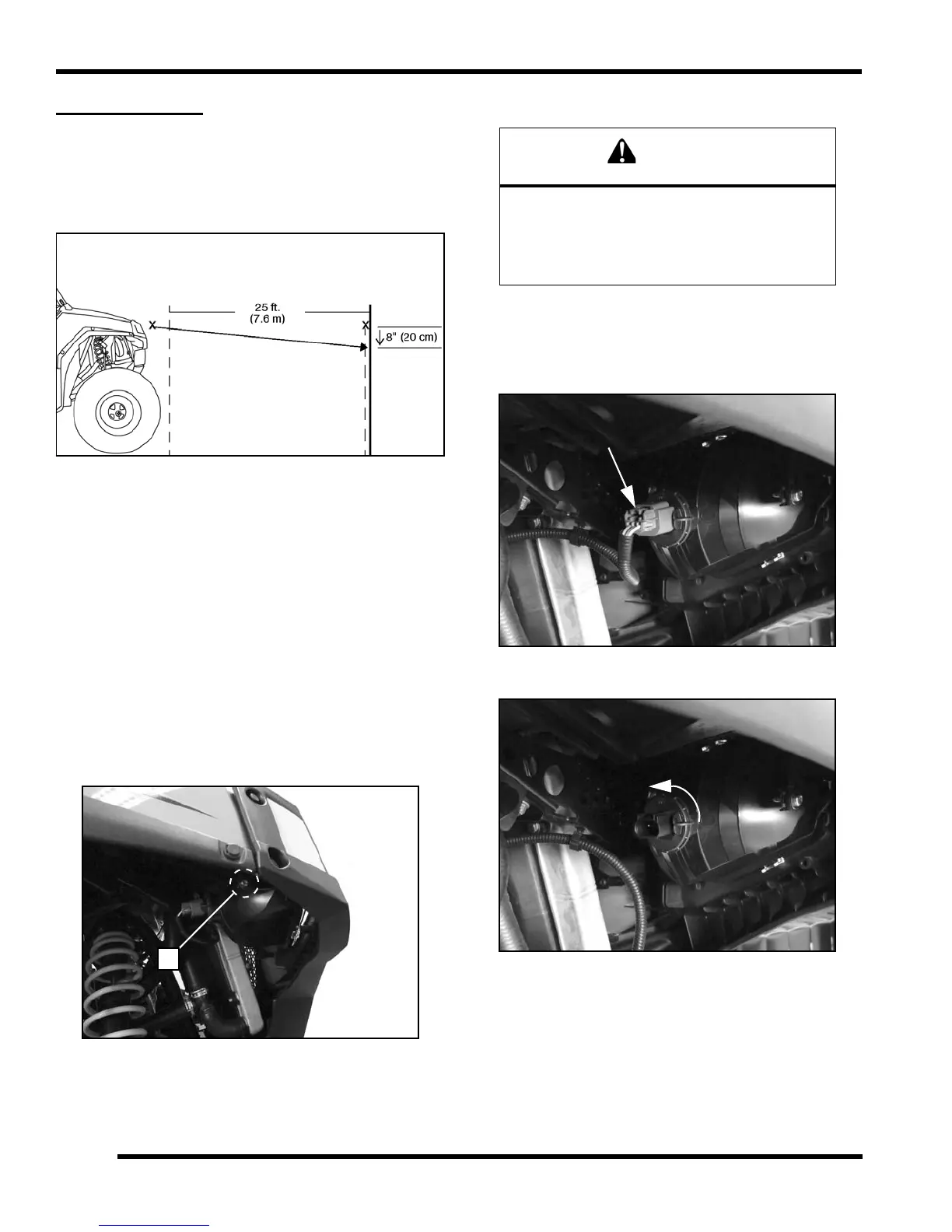

HEAD LIGHTS
Headlight Adjustment
The headlight beam is adjustable.
1. Place the vehicle on a level surface with the headlight
a
pproximately 25 ft. (7.6 m) from a wall.
2. Measure the distance from the
floor to the center of
the headlight and make a mark on the wall at the same
height.
3. With the machine in Park, start the engine and turn the
h
eadlight switch to on.
4. The most intense part of the he adlight beam should
b
e aimed 8 in. (20 cm) below the mark placed on the
wall in Step 2.
NOTE: Rider weight mu st be in cluded in the s eat
while
performing this procedure.
5. Adjust the beam to the des
ired position by loosening
the adjustment screw (A) and moving the lamp to the
appropriate height.
6. Adjust th e b eam to de sired po sition. Repe at the
p
rocedure to adjust the other headlight.
Headlamp Bulb Replacement
1. Disconnect the wire harness from the headlamp bulb.
Be sure to pull on the connector, not on the wiring.
2. Turn the bulb counterclockwise to remove it.
3. Insert new bulb. Reinsta ll the wire harness
onto the
headlamp assembly.
NOTE: Make s ure the t abs on t he bulb loc ate
prope
rly in the housing.
Due to the nature of light utility vehicles and
where they are operated, headlight lenses
become dirty. Frequent washing is necessary to
maintain lighting quality. Riding with poor
lighting can result in severe injury or death.
