Front Gearcase Lubrication
NOTE: It is important to fo llow the fro nt gea rcase
maintenance inte rvals de scribed in the Periodic
Maintenance Chart . Regular fluid leve l ins pections
should be performed as well.
The fron t gearcase fluid le vel should be checked and
cha
nged in accordance with the maintenance schedule.
• Be sur e ve hicle is po sitioned on a level su rface
wh
en checking or changing the fluid.
• Check vent hose to be sure it
is routed properly
and unobstructed.

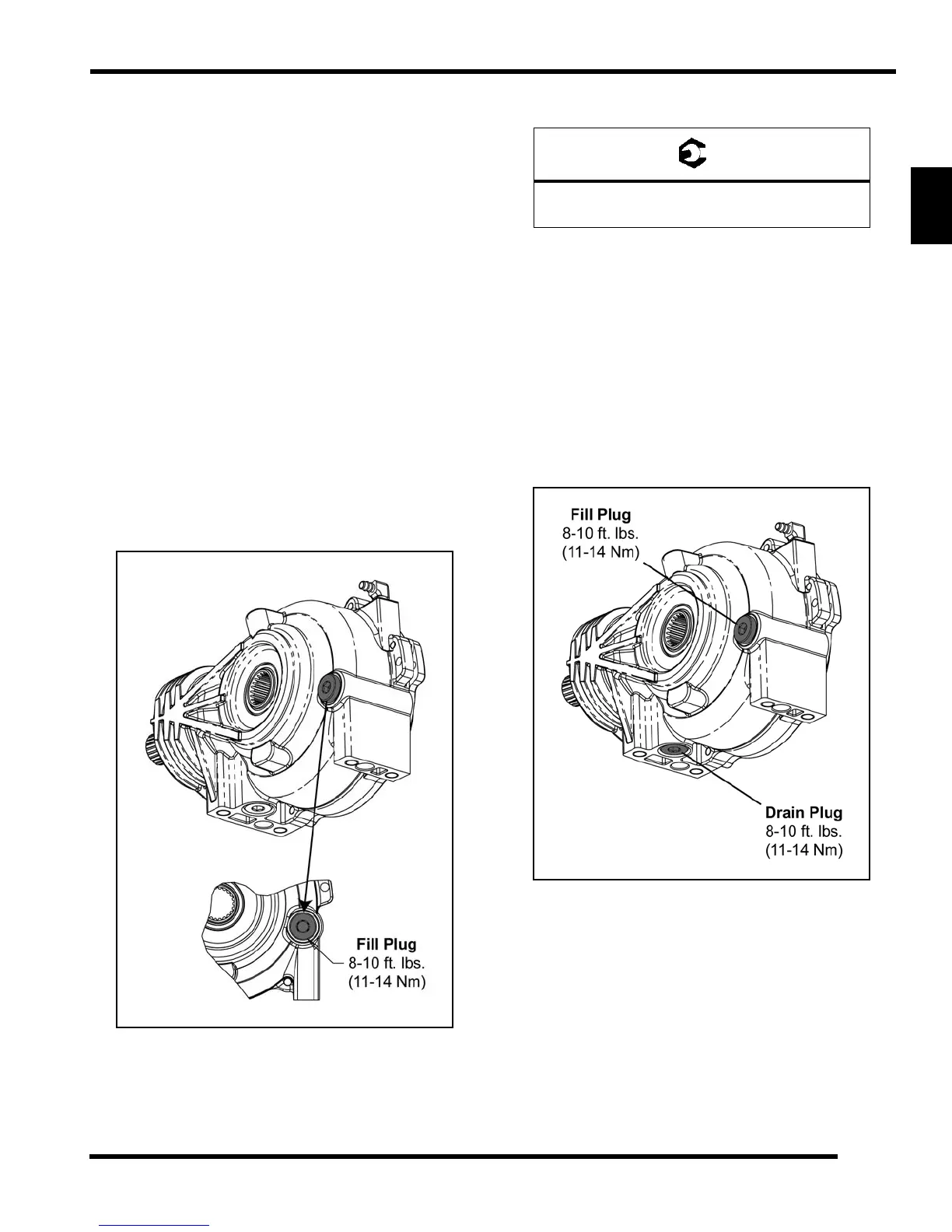

Front Gearcase Fluid Level Check
The fill plug is located on the bottom
right side of the front
gearcase. Access the fill plug through the right front wheel
well. Maintain fluid level even with the bottom of the fill plug
hole.
1. Position vehicle on a level surface.
2. Remove the fill plug and check the fluid level.
3. If fluid level is not even with the bottom threads, add
the recommended fluid
as needed. Do not overfill.
4. Reinstall the fill plug and torque to
specification.
Front Gearcase Fluid Change:
The d rain pl ug is locate d on th e bo ttom of th e fro nt
gea
rcase. Access the drain plug through the access hole
in the frame underneath the front gearcase.
1. Remove the fill plug (refer to “Front Gearcase Fluid
Level Chec
k”).
2. Place a drain pan under the front gearcase drain plug.
3. Remove th e dr ain plug and allo w fl uid to drain
completely
.
4. Clean the drain plug magnetic surface.
5. Reinstall drain plug with a new
O-ring and torque to
specification.
= T
Fill / Drain Plug Torque:
8-10 ft. lbs. (11-14 Nm)
