27. Install rear wh eels and wheel nuts. Tor que to
specification.
28. Properly lower the vehicle.
29. Verify all wire and hose routings are correct. Connect
the
(-) negative battery cable.
30. Install the engine service panel and seats.
31. If transmission lubricant
was drained, fill the
transmission with th e sp ecified a mount of Polaris
AGL Plus (s ee Ch apter 2 “Transmission
Lubrication”).
Transmission Disassembly
NOTE: Refer to the exploded view at the end of this
chapter as a reference.
1. Place t he tr ansmission in Hig h g ear be fore
disass
embly.
2. Drain an d p roperly dispose of the tran smission
lubr
icant (see Chapter 2).

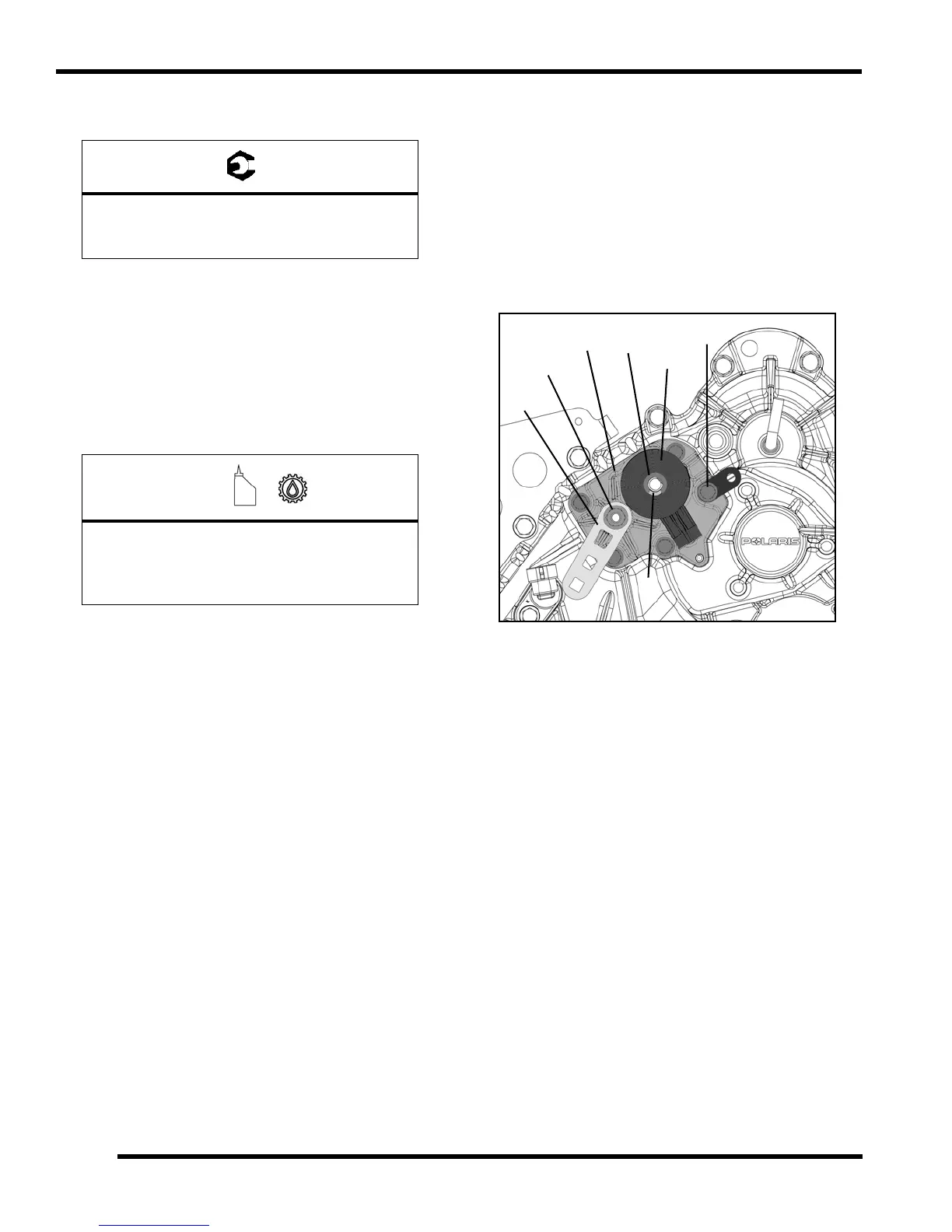

3. Remove the bellcrank nut (A) and bellcrank (B).
4. Remove the E-clip (C) that retains the spring washer
(D), fla
t washer (D) and gear switch (E). Remove the
switch.
5. Remove the sect or cover bo
lts ( F) and re move the
sector cover (G).
NOTE: Removal can be aided by using your thumbs
to p
ress in on t he shafts while pulling out the cover
with your fingers.
Wheel Nuts:
Steel Wheels: 27 ft. lbs. (37 Nm)
Aluminum Wheels: 30 ft. lbs. + 90° (1/4 turn)
Recommended Transmission Lubricant:
AGL Plus (PN 2878068) (Quart)
Capacity: 44 oz. (1300 ml)
