8.13
TRANSMISSION
8
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

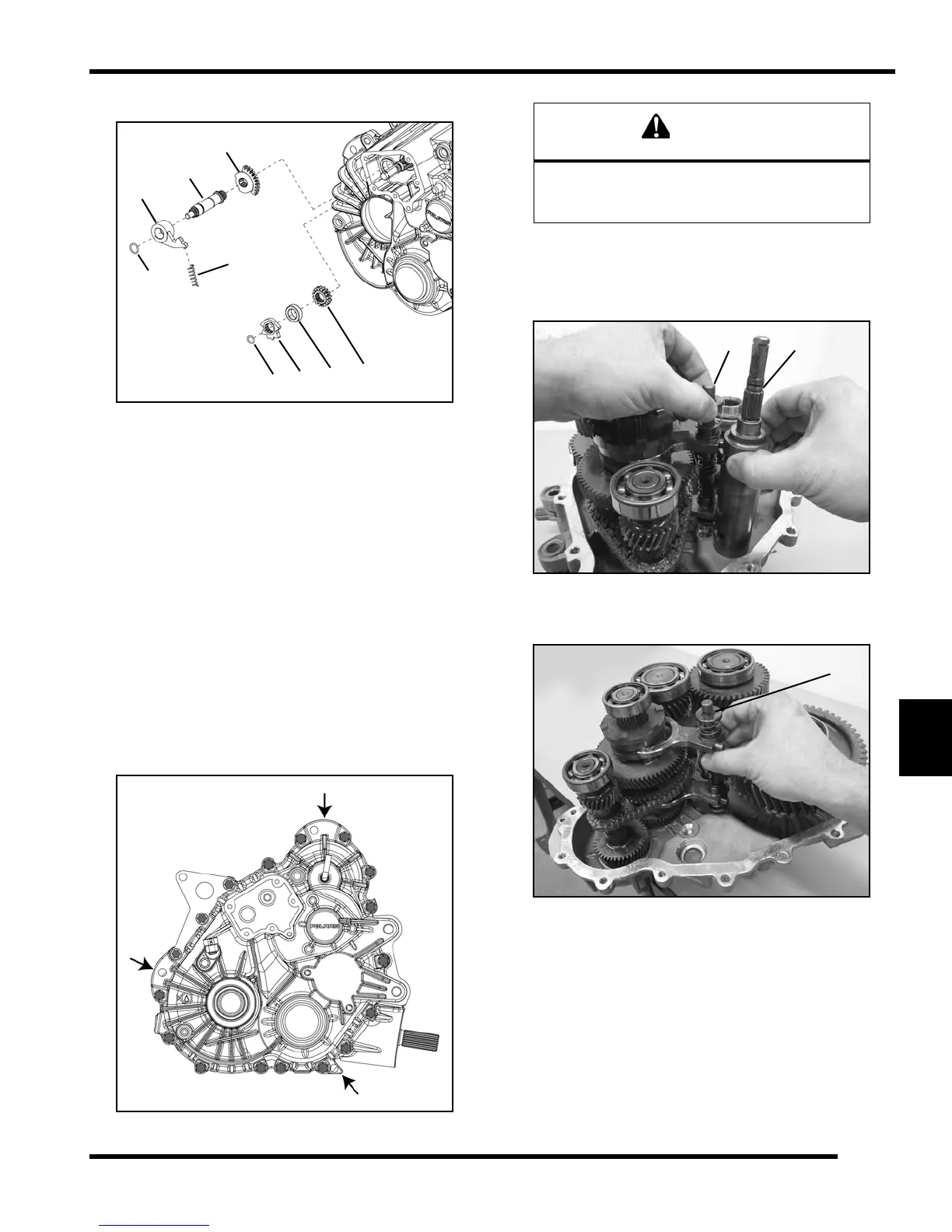

6. Remove the compression spring (H).
7. Remove the detent star (I). Note how the detent star
fits
onto the splined shaft with the raised edge facing
outward for reassembly.
8. Remove the spacer (J).
9. Remove the shift shaft (K), detent pawl (L) and the
shif
t sector gears (M and N).
IMPORTANT: Note the timing marks on the shift gears
(
M and N) for reassembly purposes.
10. Remove the O-rings (P) from each shaft and discard.
Use new O-
rings upon assembly.
11. Remove a ll th e tr ansmission case bolts. Using
suitab
le pr y b ars, rem ove the cover using the
designated pry points (indicated by the black arrows
in the illustration below).
12. Lift up on the shift shaf t ra il (Q) and move th e ra il
a
ssembly rearward to all ow the shift fork pins to be
removed from the shift drum (R). Rem ove the shift
drum (R) from the transmission housing.
13. Remove the shift shaft rail (Q) and shift forks from the
tr
ansmission housing as an assembly.
Do not pry on case sealing surfaces.
Use only the designated pry points
on the transmission.
