8.30
TRANSMISSION
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.

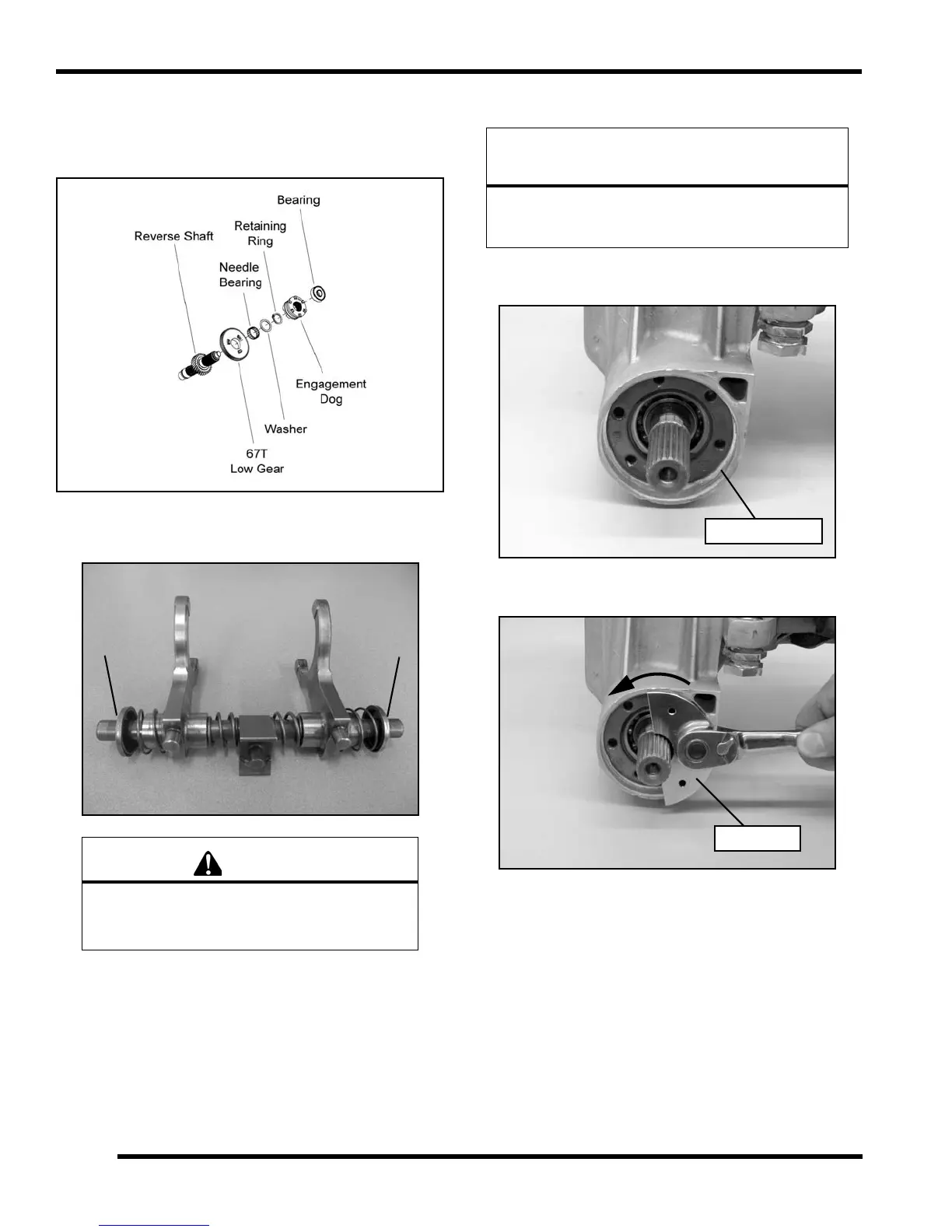

26. If necessary, disassemble the other end of the reverse
shaft. Remo ve the be aring, e ngagement dog,
retaining ring, washer, gear and needle bearing from
the reverse shaft (see Figure 8-2).
27. To disassemble t he shift sh
aft rail remove the snap
ring (X) from the end of the shift rail on either side.
Snorkel Shaft Removal / Disassembly
28. Extract the seal from the snorkel shaf
t to access the
snorkel tube for removal.
29. Using the Snorkel Tool (PA-50231), fully loosen the
sn
orkel tube.
CAUTION
Use caution when disassembling the shift rail.
The compressed springs on the shift rail may
pop off causing eye or face injury.
Figure 8-2
X
X
CAUTION
The pinion shaft must be removed prior to removing
the snorkel shaft assembly. Failure to remove pinion
shaft, will result in damage to the snorkel shaft.
Seal Removed
PA-50231
