TRANSMISSION
8
9923523 - 2012 RANGER RZR 570 Service Manual
© Copyright 2011 Polaris Sales Inc.
4. Install the bushing to the specified depth as shown.

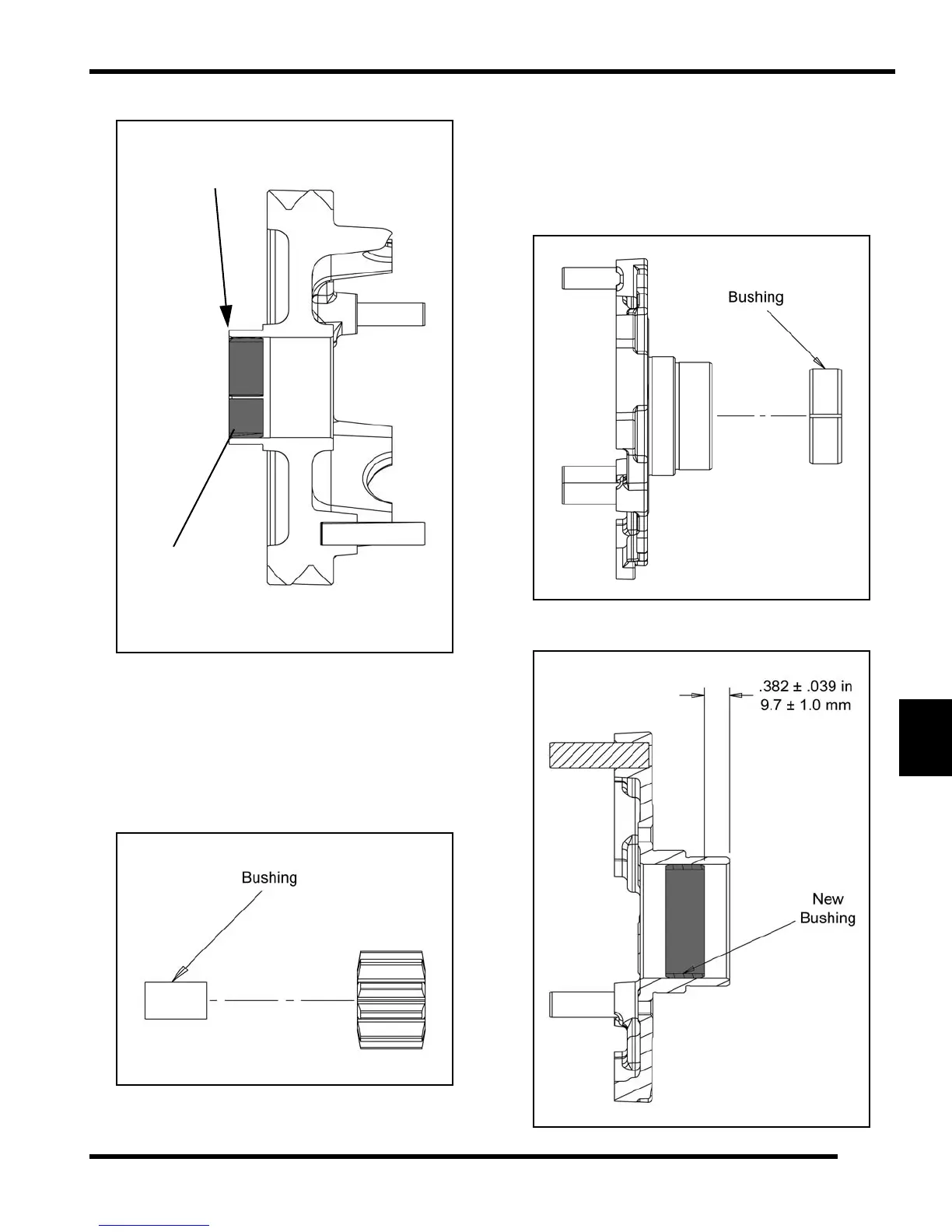

Planet Gear Bushing Replacement
1. Press the old bushing out of the pla
net gear.
2. Thoroughly clea n the bo re of the pla net g ear a nd
che
ck for any unwanted burs.
3. Press the new bushing into the planet gear until it is
flush on
each en d. Repeat th is procedure for the
remaining planet gears.
Differential Cover Bushing Replacement
1. Press the old bushing out of the differential cover.
2. Thoroughly clean the bore of the differential cover and
ch
eck for any unwanted burs.
3. Press the new bushing into the differential cover.
4. Install the bushing to the specified depth as shown.
New
Bushing
Install bushing flush to
.039 in. (1 mm) recessed
from end face of hub
