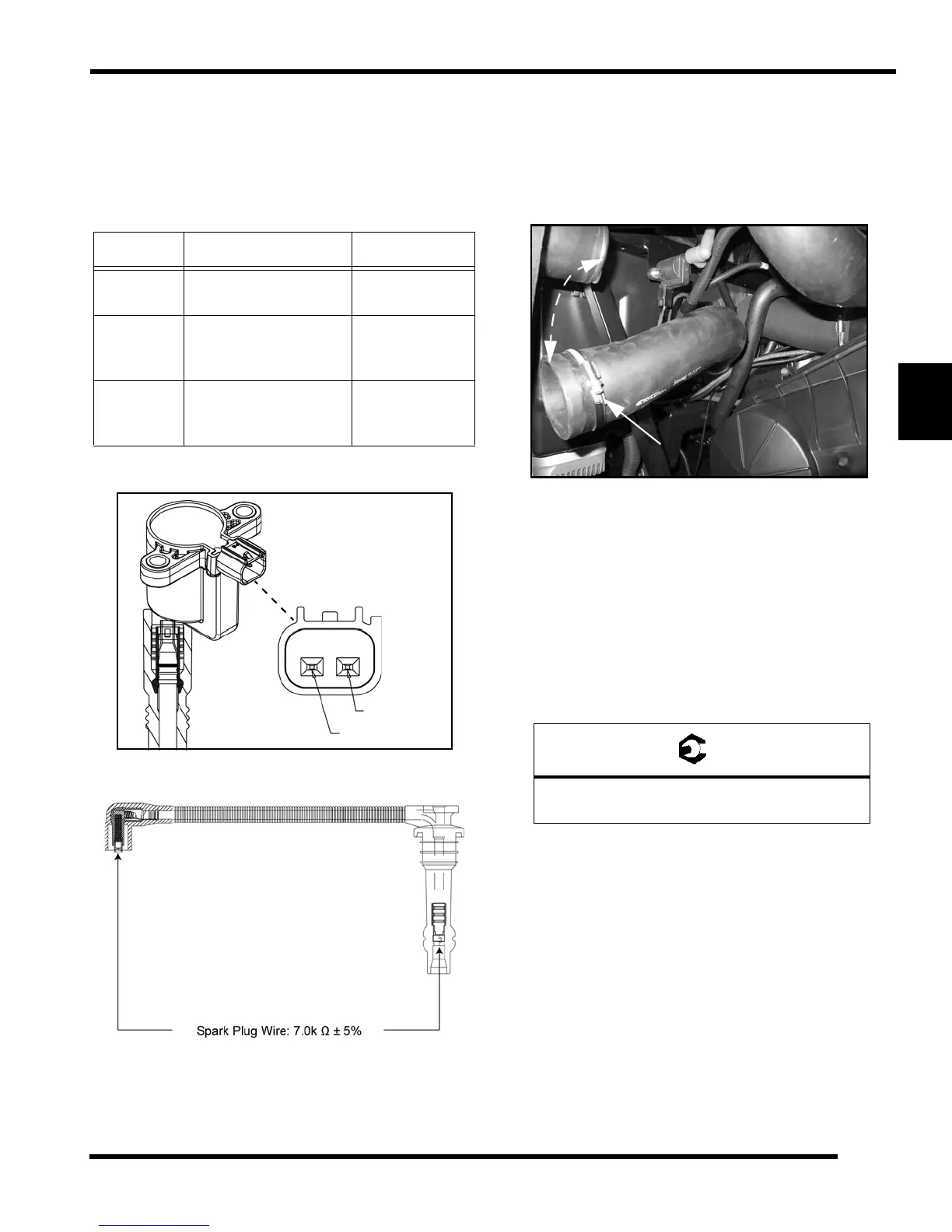

Ignition Coil Tests
The ignition coil can be tested by using an Ohm meter. Use
the following specification table and illustrations to test the
ignition coil.
Primary Test
Secondary Tests
Ignition Coil and HT Lead Replacement
1. Remove th e drivers s ear and disconnect th e (- )
negative battery cable.
2. Loosen hose clamp and disengage th e PVT intake
hose from t
he duct.
3. Disconnect the harness connection to the ignition coil.
4. Remove the hig h tension lead cap fr om the spa rk
plu
g.
5. Remove the fasteners retaining the ignition coil and
remove t
he coil assembly from the vehicle.
6. Install the new igni tion co il asse mbly an d tighten
fa
steners to specification.
NOTE: Be sure to re install th e coil mount ing
s
pacers upon assembly (if equipped).
7. Connect the harness connection to the ignition coil.
8. Reinstall the PVT intake hose and tighten hose clamp.
9. Reconnect the ba ttery cable an d insta ll th e dr ivers
seat.
Ignition Coil Resistance Readings
Test Pin Connection Resistance
Primary
Between
(Battery +) & (Coil -)
0.5 Ohms ± 10%
Primary
Te
st
Between Coil - and + at
the Coil
Connection 0.5 Ohms
Secondary
Te
st
Between High Tension
Le
ad Caps
7.0 k Ohms ± 5%
Measure Between
Connector Pins
0.5 
Battery +
Coil -
= T
Ignition Coil Retaining Bolt Torque:
75 in. lbs. (8.5 Nm)
