108 PI-MAX
®
4 System Manual Issue 9
5. When using an Acton SpectraPro Series spectrograph, verify it was turned on when
LightField was launched.
If using an LS-785, an icon should be shown in the
Available Devices area.
When the spectrograph icon is dragged into the
Experiment Devices area, the
Spectrometer expander is added to the Experiment Settings stack with appropriate
parameters provided. See Figure 6-8 for typical expanders.

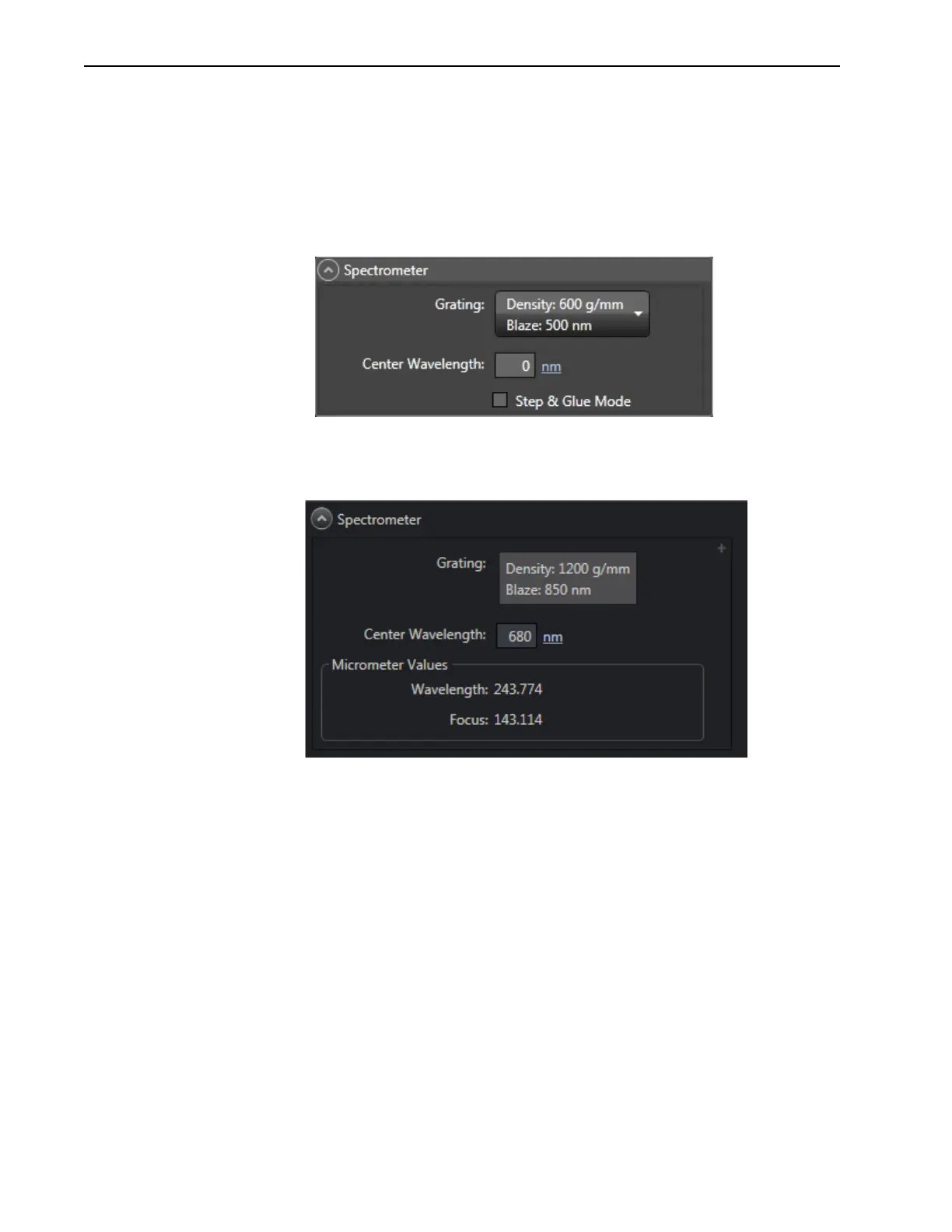

Figure 6-8: Typical Spectrometer Expanders
6.
Move the grating to the desired wavelength.
ACTON SPECTRAPRO
4411-0139_0071
SERIES SPECTROGRAPH
4411-0139_00714411-0139_0186
LS785 SPECTROGRAPH
