14.1.2 emICCD Gain Mode
In emICCD Gain mode, the PI-MAX4: EM family supports two additional modes of
operation (i.e., Optimal and Manual.) Depending on the specific mode selected, the
available set of mode-specific configuration parameters is automatically updated within
LightField.
emICCD Gain Mode is configured on the Common Acquisition Settings expander within
the
Advanced Intensifier settings block. See Figure 14-4.

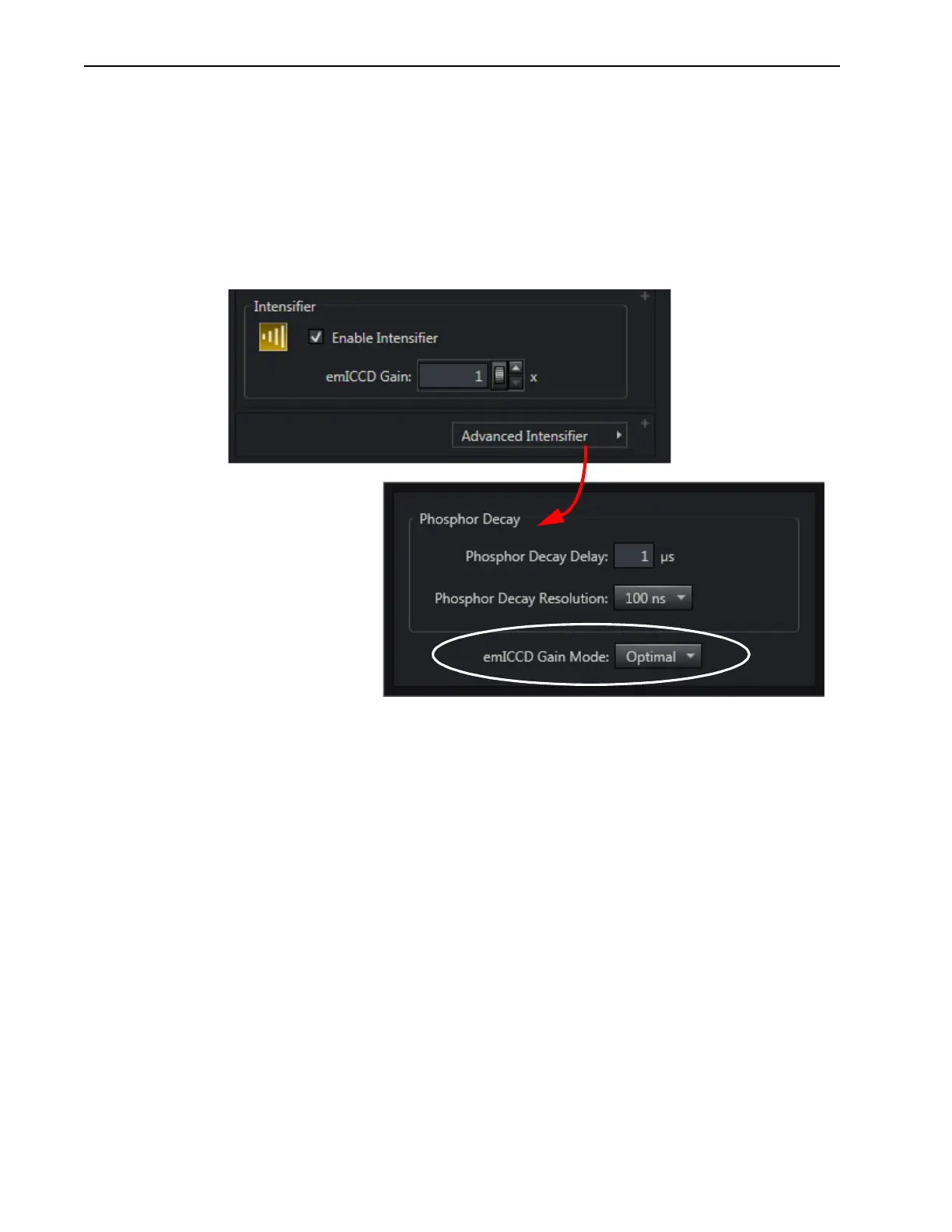

Figure 14-4: Typical emICCD Gain Configuration Field
Each of the two modes are described in the following sections.
