Chapter 6 LightField and Gated Operation 123

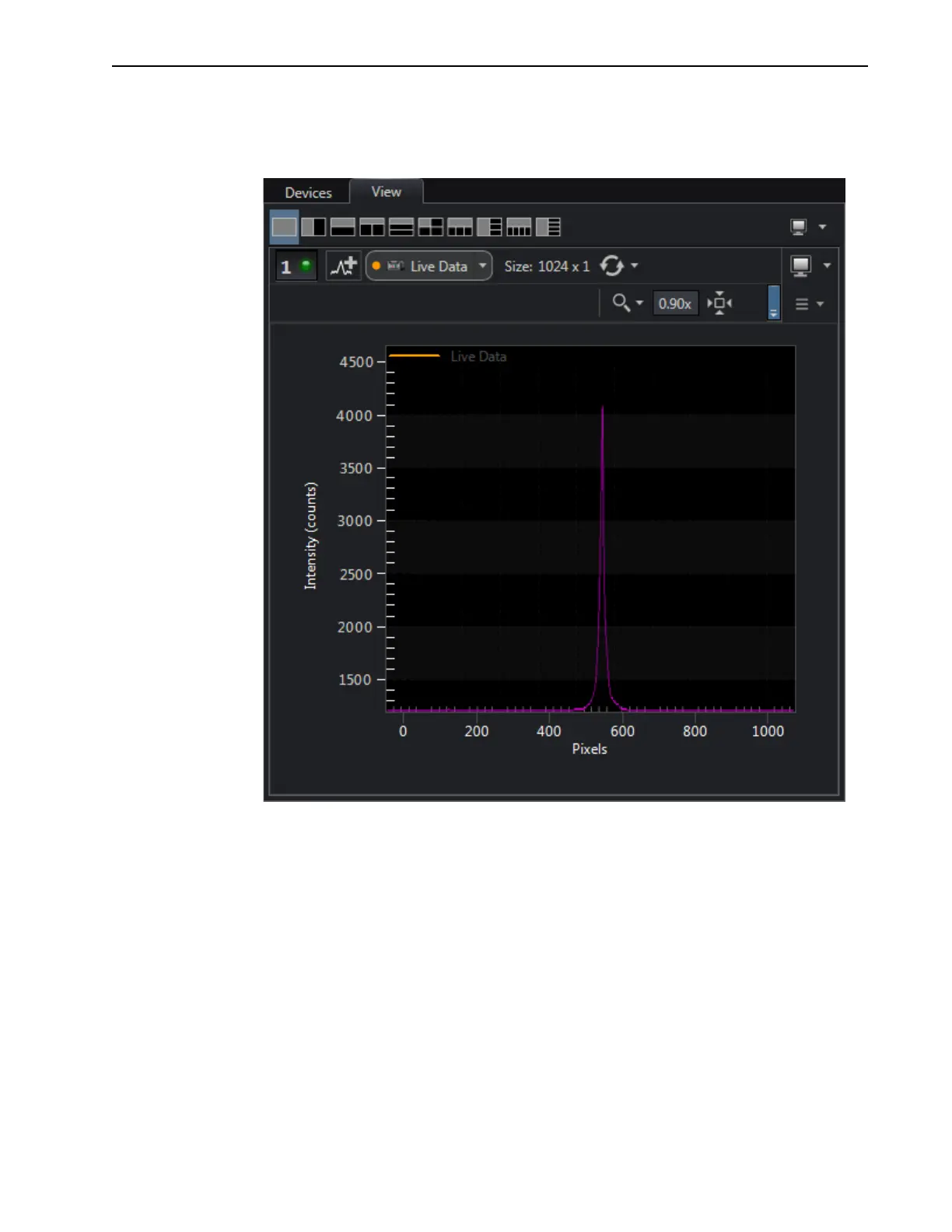

Figure 6-25 shows the peak obtained by binning the entire region around the fluorescence
spot in the vertical direction.
Figure 6-25: Single Shot Result: Fluorescence Spot, Width = 100 ns, Delay = 10 ns,
Binned Vertically
