Princeton Instruments PI-MAX4 - Figure 10-15:Winx Experiment Setup Dialog: Timing Tab; Figure 10-16:Winx Pulsers Dialog

Chapter 10 WinX and Dual Image Feature 183

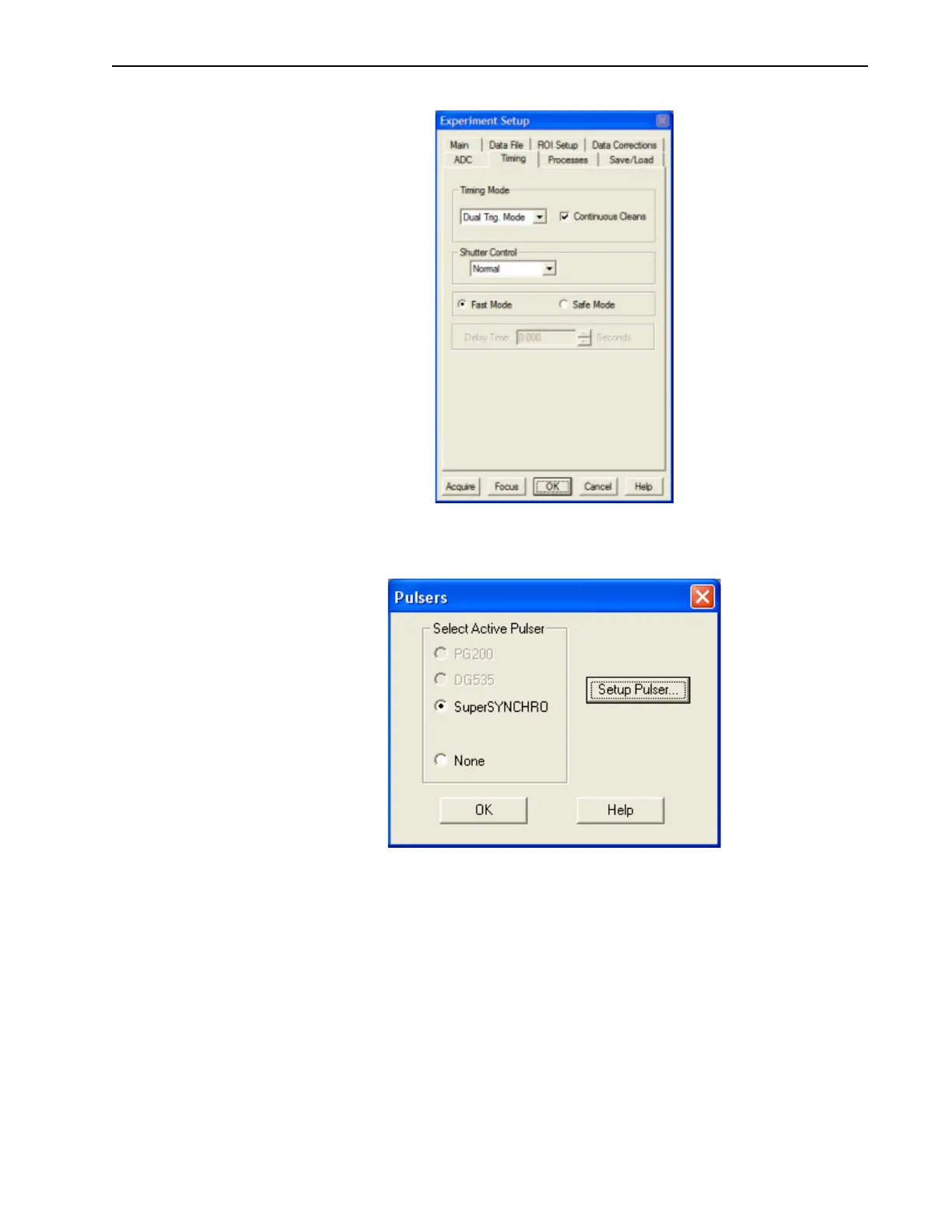

Figure 10-15:WinX Experiment Setup Dialog: Timing Tab
5.
From the Setup menu, select Pulsers. See Figure 10-16.
Figure 10-16:WinX Pulsers Dialog
6.
Select SuperSYNCHRO, and click the Setup Pulser button to display the
SuperSYNCHRO dialog.
