4.5.4 Acquiring Data
Perform the following procedure to verify the system’s ability to acquire data:
1. Verify that the I.I.T. Power switch on the rear of the camera is in the ON position
2. Verify that Enable Intensifier is selected on the Common Acquisition Settings
expander.
3. Click on the View tab, located just above Available Devices, to change to the display
area. See Figure 4-3.

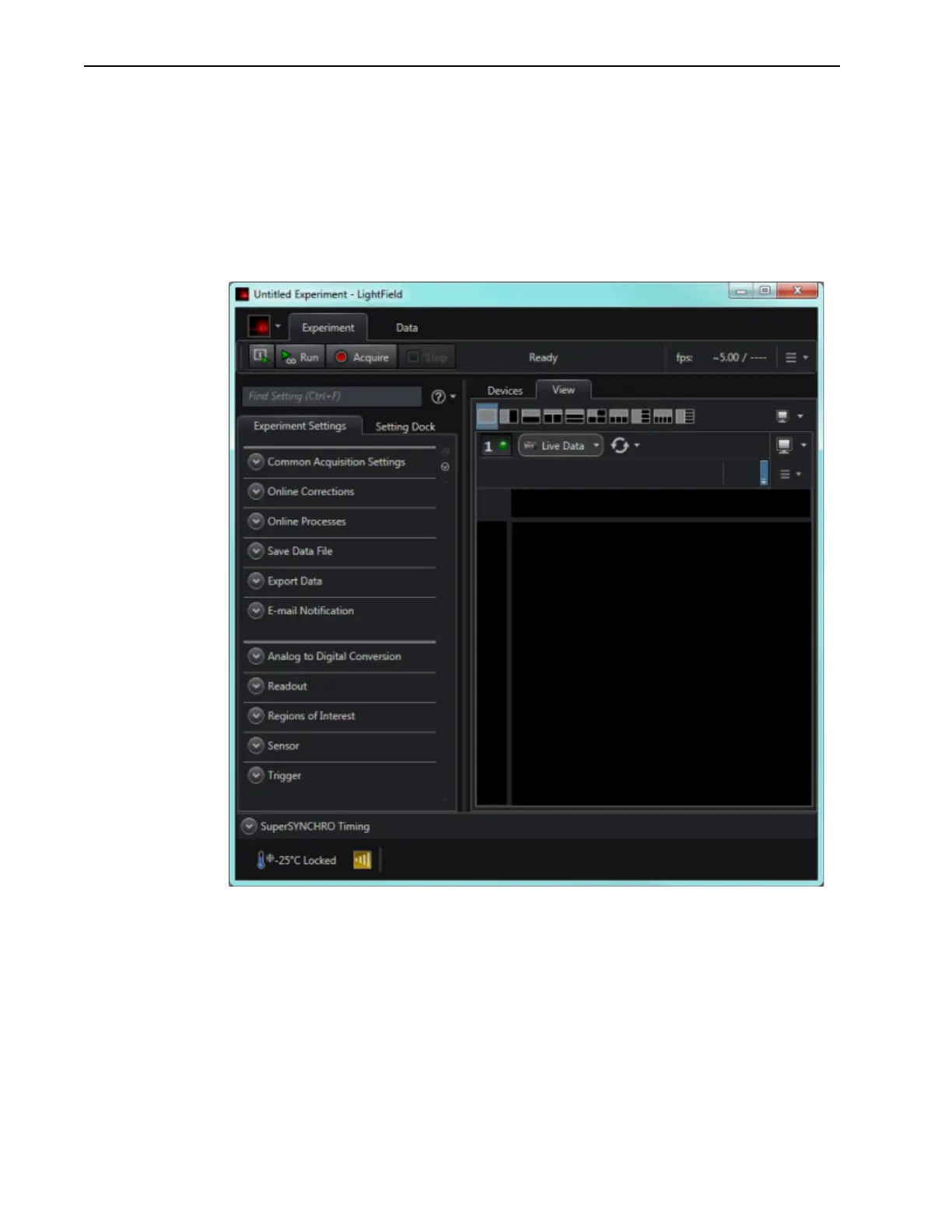

Figure 4-3: LightField Desktop View Area
4411-0139_0019
