Princeton Instruments PI-MAX4 - Figure 13-5: Add Phase Sweep; Table 13-1: Phase Sweep Information for Sweep > 360

206 PI-MAX
®
4 System Manual Issue 9
Table 13-1 shows the corresponding/calculated values for each step in the sweep.
j. Once the Range and Increment have been configured, click Add to add the points to
the table. See Figure 13-5.

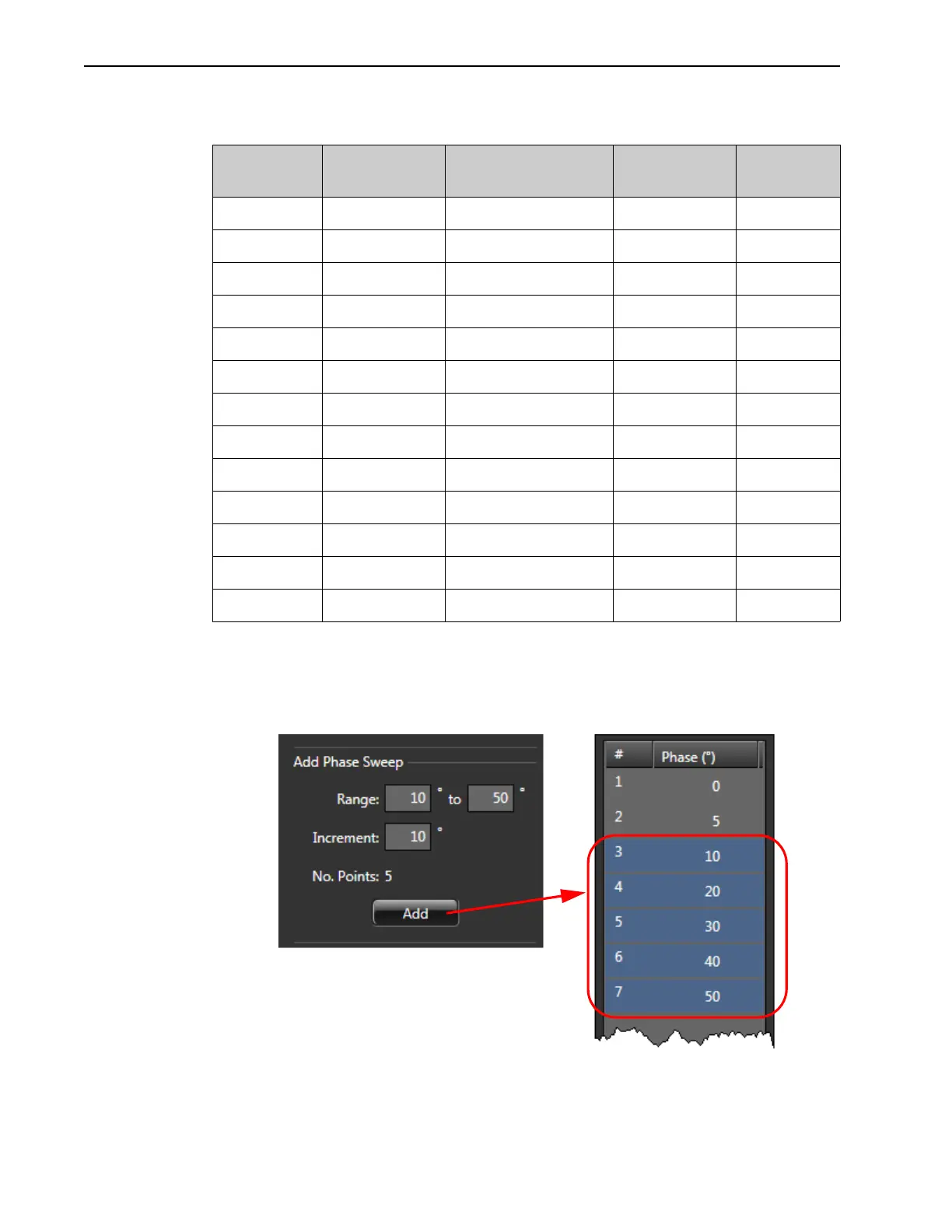

Figure 13-5: Add Phase Sweep
Table 13-1: Phase Sweep Information for Sweep > 360°
Phase
Table Step
Phase Table
Value
Programmed
Phase Angle
Cumulative
Sweep Total
Increment
1
0
° -720° [Range Start] 0° 90°
2
90
° -630° 90° 90°
3
180
° -540° 180° 90°
4
270
° -450° 270° 90°
5
0
° -360° 360° 90°
6
90
° -270° 450° 90°
7
180
° -180° 540° 90°
8
270
° -90° 630° 90°
9
0
° 0° 720° 90°
10
90
° 90° 810° 90°
11
180
° 180° 900° 90°
12
270
° 270° 990° 90°
13
0
° 360° [Range End] 1080° 90°
4411-0139_0163
