g. Click on the Edit Phase Modulations… button to display the Edit Custom Phase
Modulations
dialog similar to that shown in Figure 13-3.

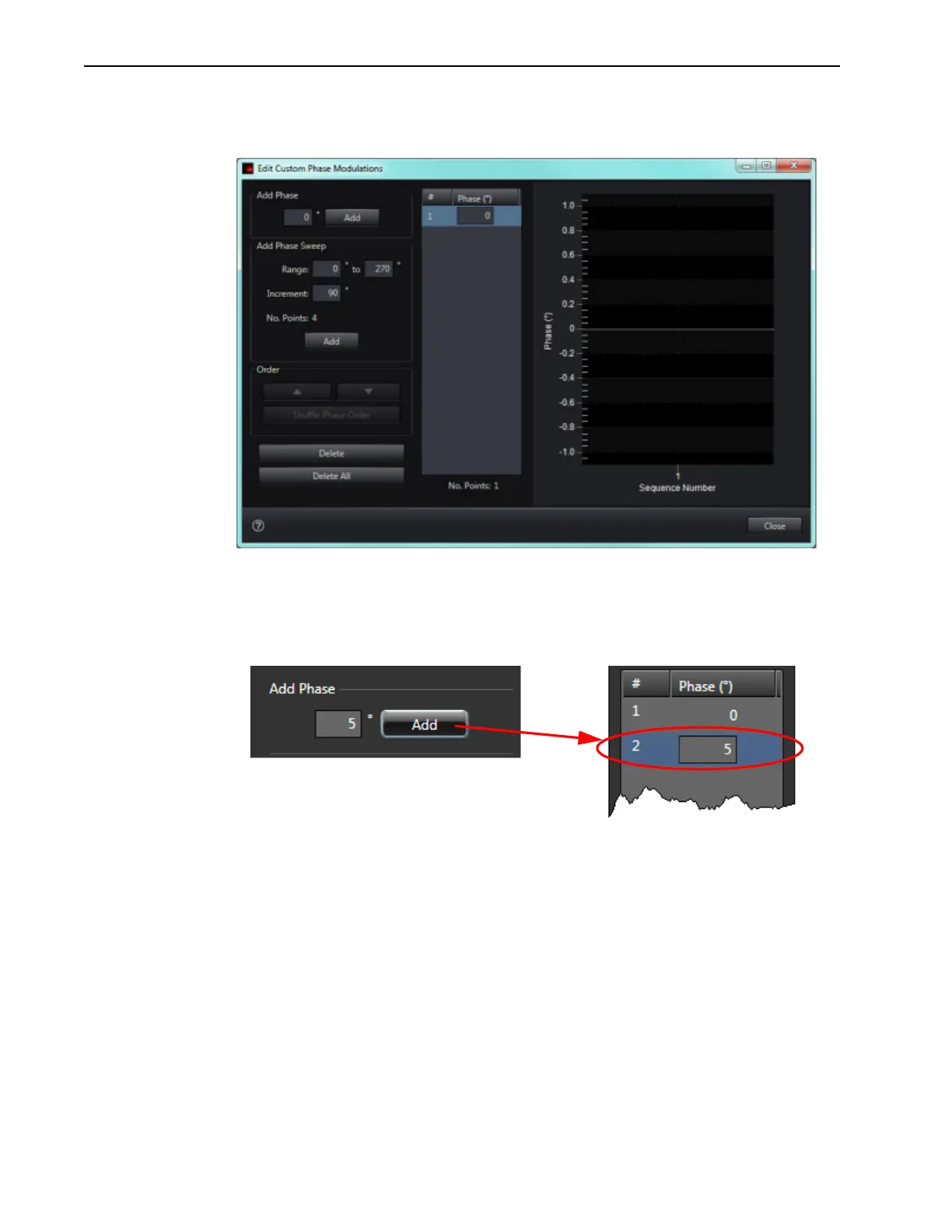

Figure 13-3: Typical Edit Custom Phase Modulations Window
h.
To add a single point to the table, within the Add Phase section, enter the desired
modulation, in degrees, and click
Add.
The point is added to the table. See Figure 13-4.
Figure 13-4: Add a Single Modulation Phase
Additional points may be added as necessary.
