7. Click on the Gating tab, select DIF Gating, and click on the Setup button. See
Figure 10-7.

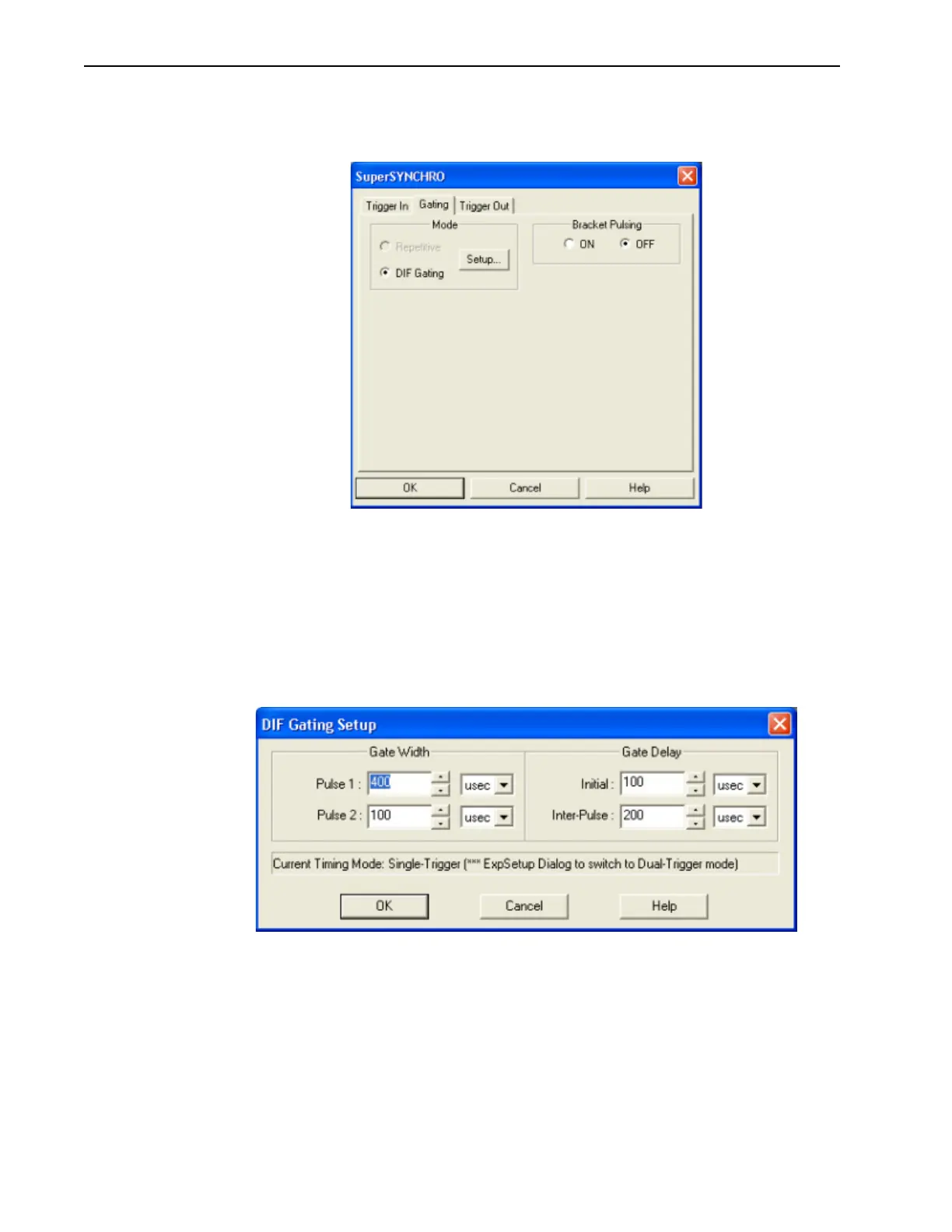

Figure 10-7: WinX SuperSYNCHRO Dialog: Gating Tab
8.
On the DIF Gating Setup dialog, enter the desired Gate Width and Gate Delay times.
• When entering the Initial Gate Delay time, verify that it is  85 µs.
• When entering the Inter-Pulse Gate Delay time, verify that the delay is greater
than or equal to the Phosphor Decay Time as configured on the
Setup —>
Hardware Setup —> Controller/ Camera
tab.
See Figure 10-8.
Figure 10-8: WinX DIF Gating Setup Dialog
