Princeton Instruments PI-MAX4 - PI-MAX4: 1024 I-RF Power Supply; Figure B-11: Outline Drawing: PI-MAX4: 1024 I-RF Power Supply

Appendix B Outline Drawings 285
B.5 PI-MAX4: 1024i-RF Power Supply

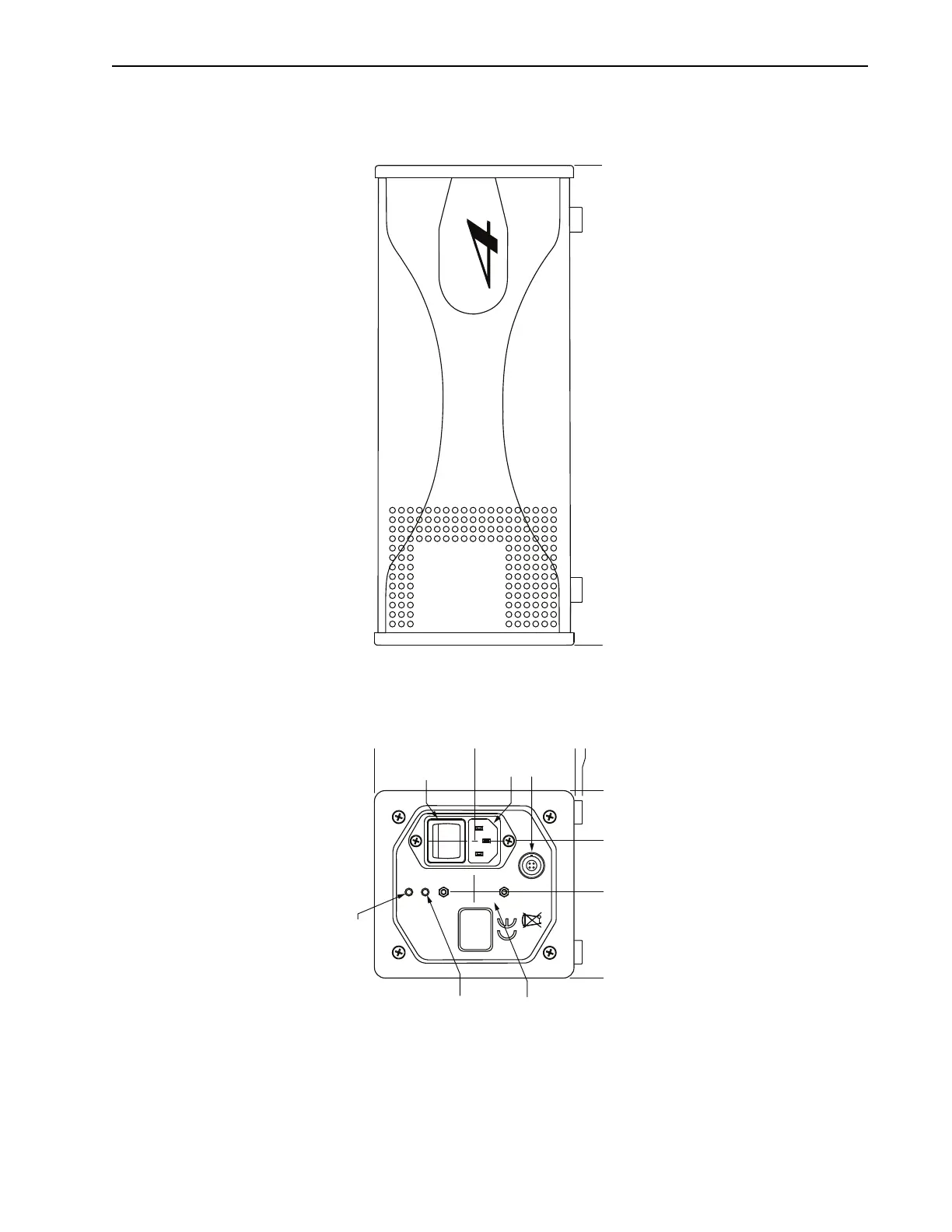

Figure B-11: Outline Drawing: PI-MAX4: 1024i-RF Power Supply
4.02
[102.11]
2.16
[54.86]
POWER CONNECTOR
RED LED
GREEN LED
LINE CORD INPUT
POWER ON/OFF SWITCH
0
9.55
[242.57]
INPUT
90-264 VAC
47-63 Hz
400W MAX
SHUTTER FAULT
POWER
0
1.06
[26.92]
0 2.15 [54.61] 4.29 [108.97] 0.18 [4.57]
RF modulated
PI-MAX
RF MODULE POWER
4411-0139_0158
